FANUC ARCMATE 120iB 6 AXIS CNC ROBOT WITH RJ3iB CONTROLLER

1-USED FANUC ARCMATE 120iB 6 AXIS ROBOT WITH RJ3iB CONTROLLER

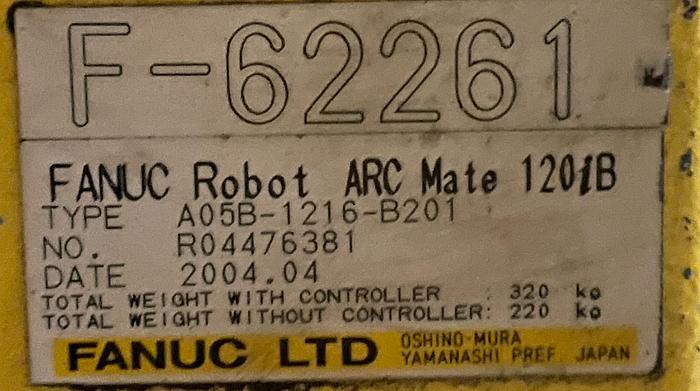

SERIAL NUMBER F62261

DATE OF MANUFACTURE 04/2004

STK#104437

===================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

This Robot is Suitable for high-speed welding and cutting processes, the FANUC ARC Mate 120iB is a six-axis robotic arm that is servo-driven. The FANUC 120iB RJ3iB welding robot provides accurate and consistent path performance based on its simple and reliable construction.

Robot Specifications:

Axes: 6

Payload: 20.00kg

H-Reach: 1667.00mm

Repeatability: ±0.0800mm

Robot Mass: 220.00kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 165 °/s (2.88 rad/s)

J2 165 °/s (2.88 rad/s)

J3 175 °/s (3.05 rad/s)

J4 350 °/s (6.11 rad/s)

J5 340 °/s (5.93 rad/s)

J6 520 °/s (9.08 rad/s) Robot Motion Range:

J1 ±170°

J2 +160° - 90°

J3 +290° - 170°

J4 ±200°

J5 ±140°

J6 ±450°

Robot Applications:

MIG Welding Robots

Oxyacetylene Welding Robots

Plasma Cutting Robots

Plasma Welding Robots

Submerged Arc Welding Robots

TIG Welding Robots

MAG Welding Robots

Welding Automation Robots

Arc Welding Robots

EQUIPPED WITH:

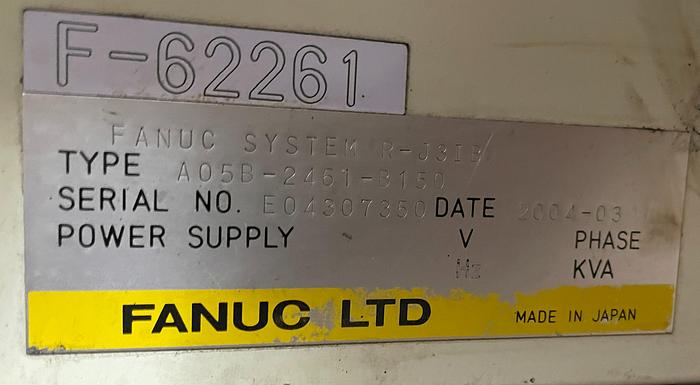

FANUC RJ3iB ROBOT CONTROLLER

FANUC ROBOT CONNECTION CABLES

TEACH PENDANT

FOB TRUCK, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
