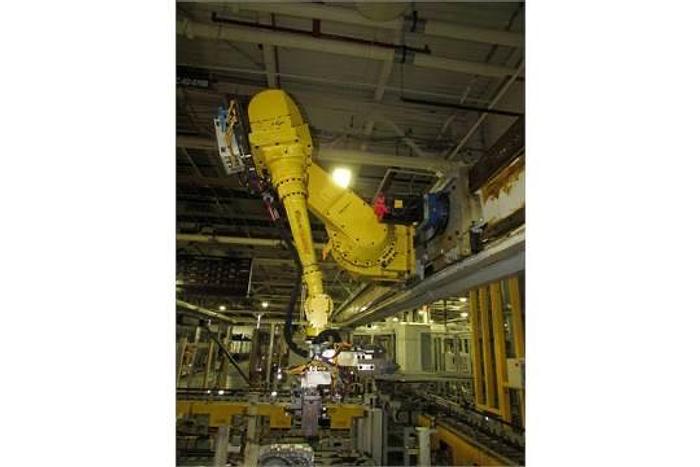

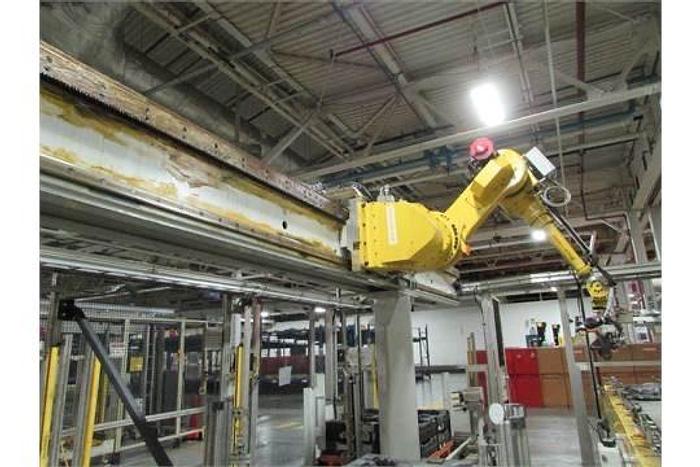

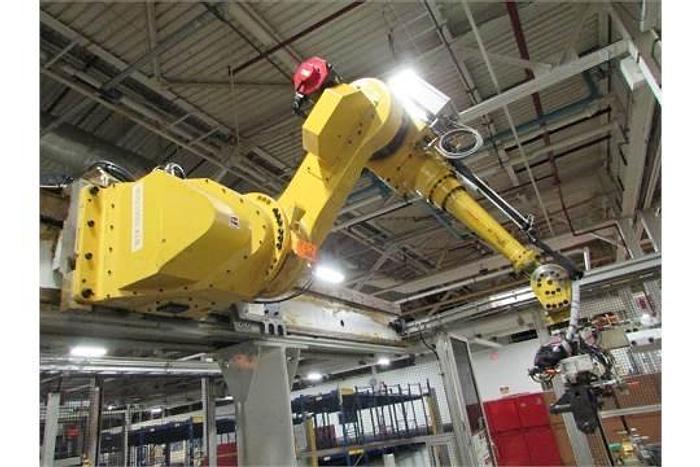

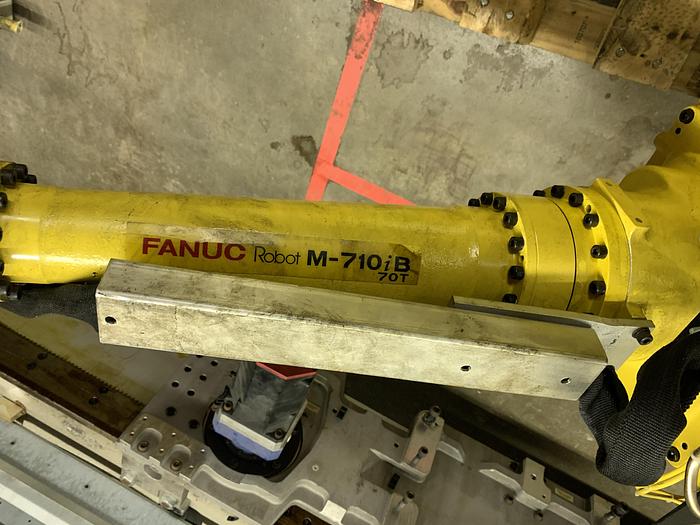

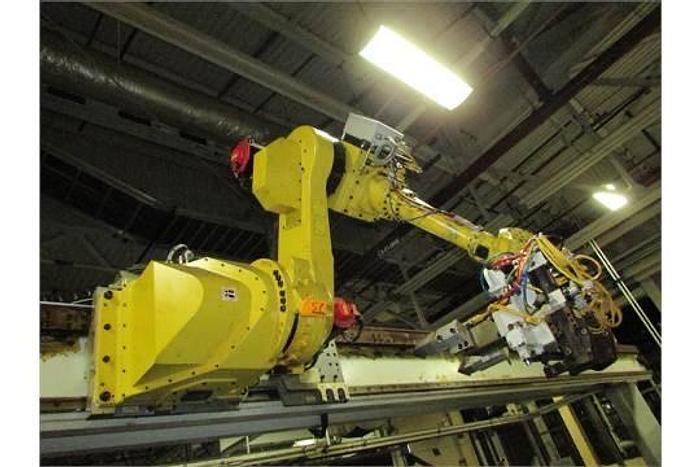

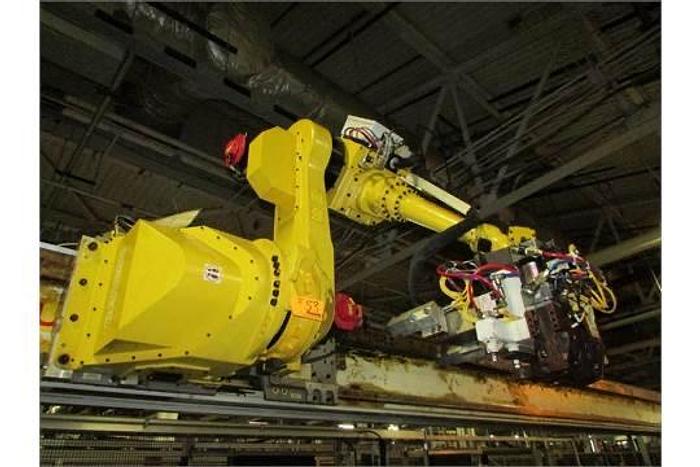

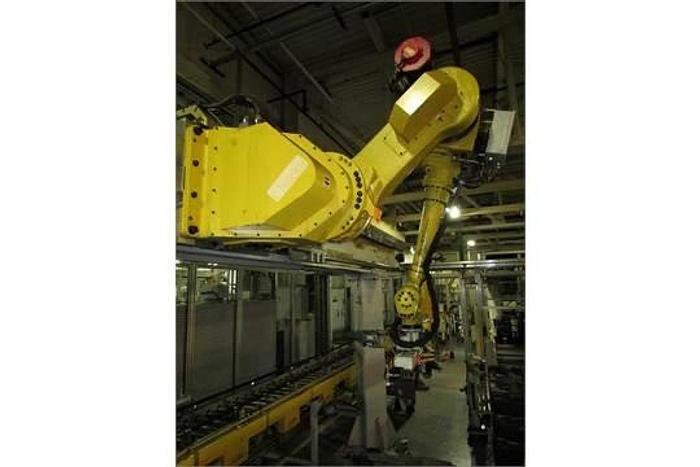

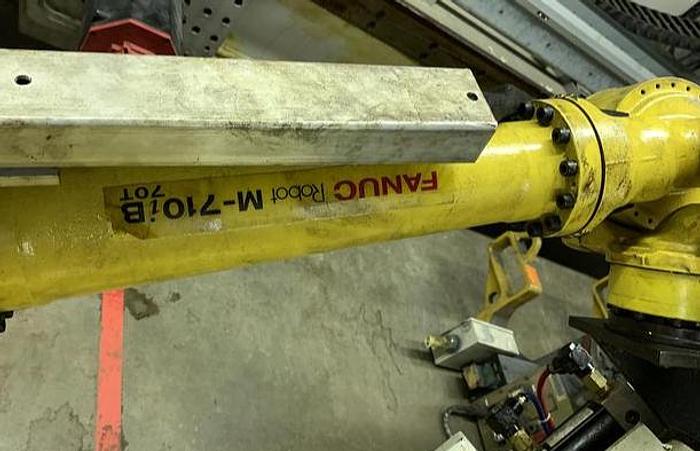

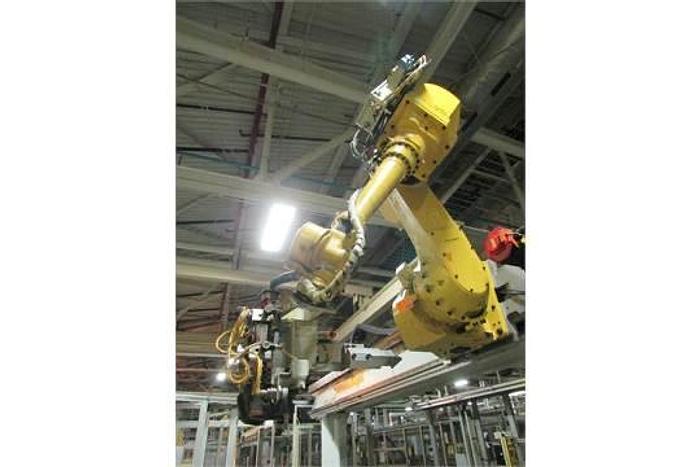

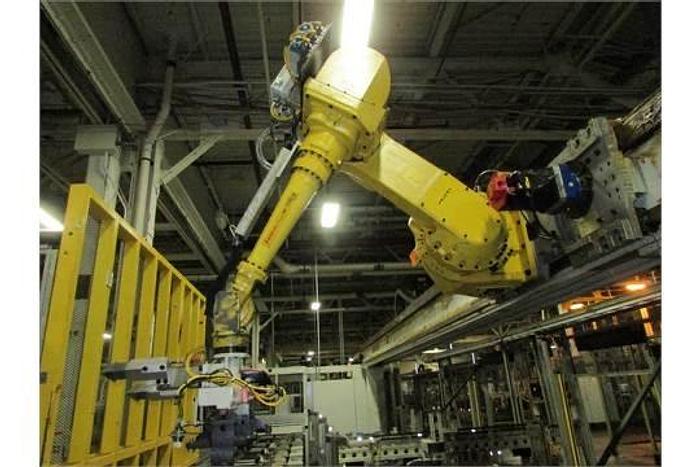

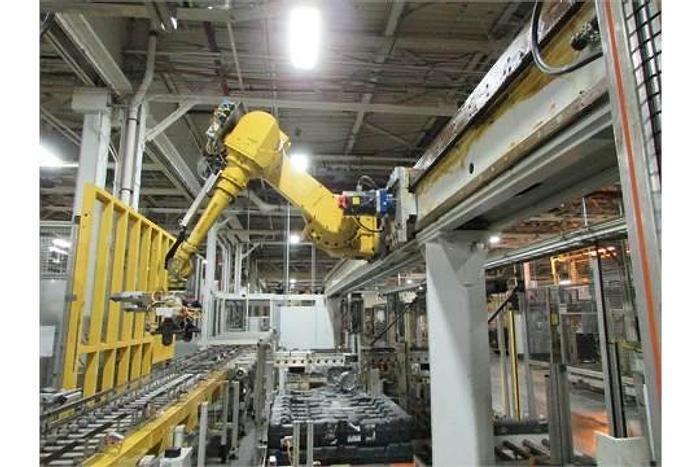

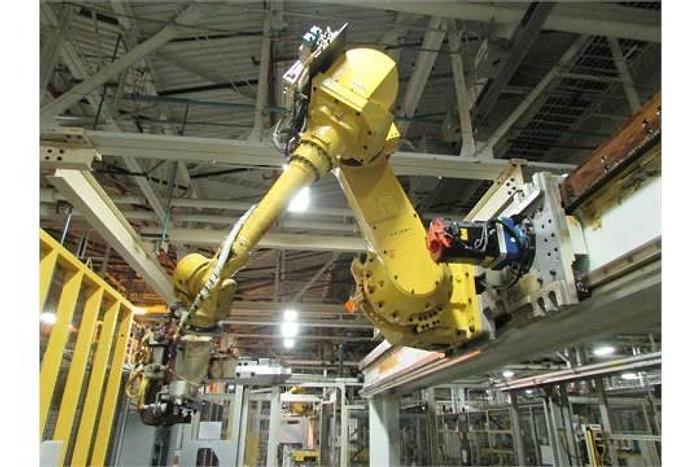

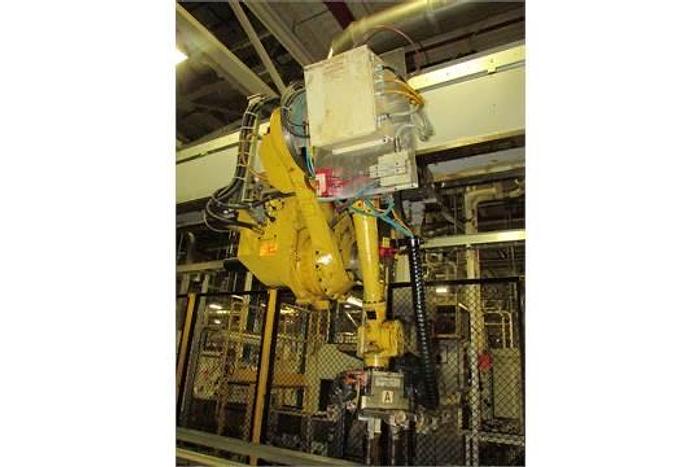

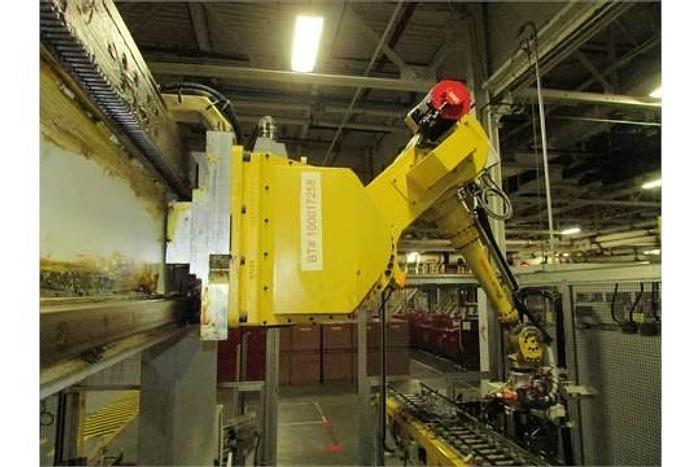

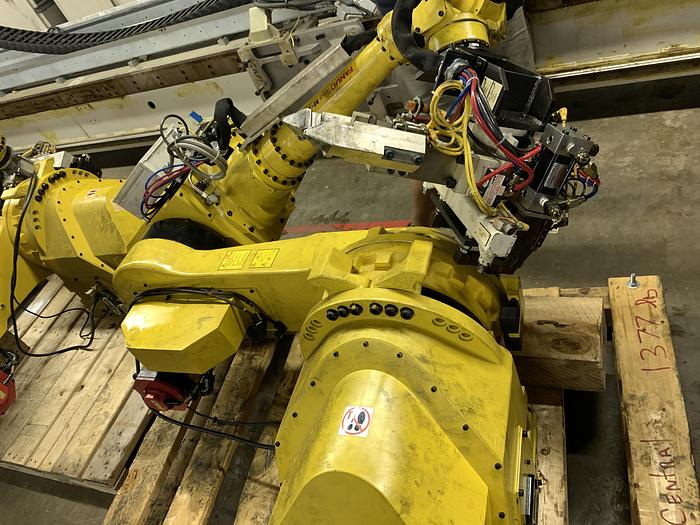

2005 FANUC M710iB/70T GANTRY

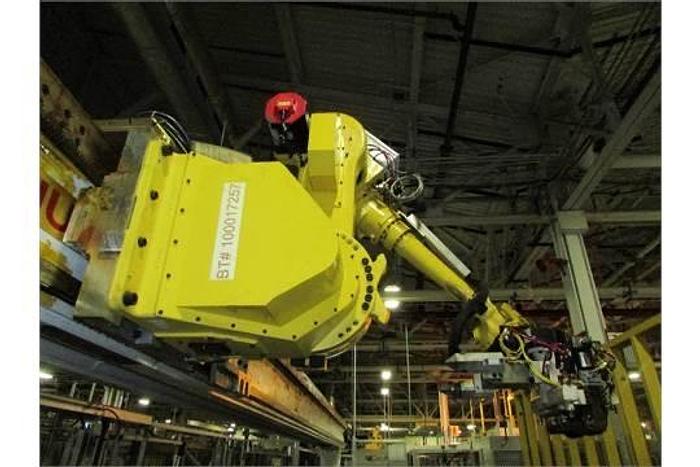

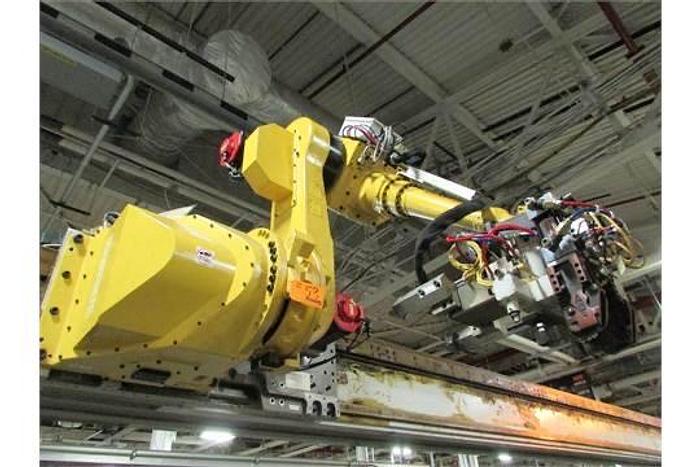

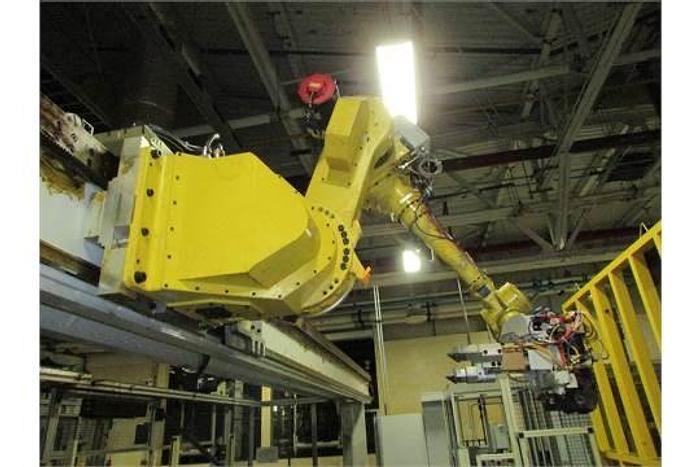

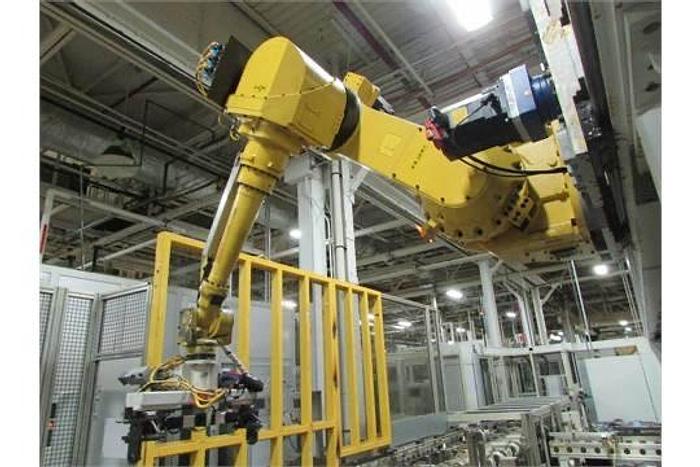

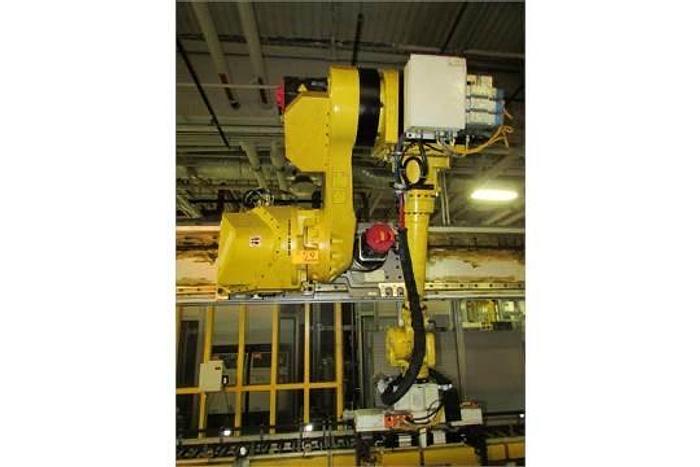

1-USED FANUC M710iB/70T GANTRY ROBOT SYSTEM 10,200 MM TRAVEL X 8' TALL RJ3iB CONTROLLER

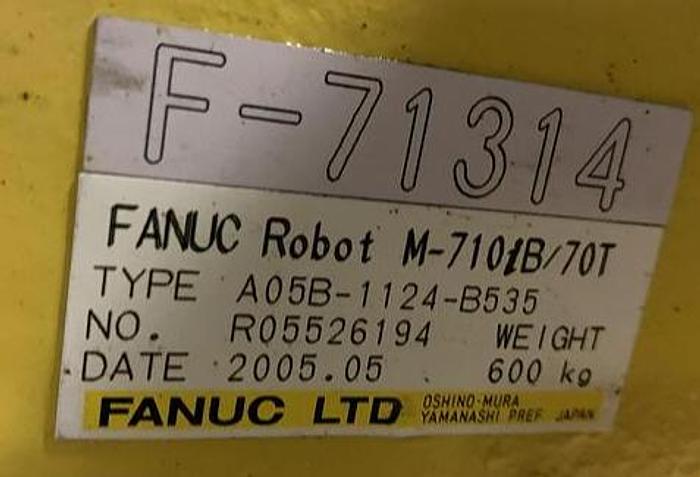

DATE OF MFG. 5/2005

STK#104419

============================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

Robot Specifications:

Axes: 5

Payload: 70.00kg

H-Reach: 1706.00mm

Repeatability: ±0.1500mm

Robot Mass: 695.00kg

Structure: Articulated

Mounting: Inverted

Robot Motion Speed:

J2 120 °/s (2.09 rad/s)

J3 150 °/s (2.62 rad/s)

J4 240 °/s (4.19 rad/s)

J5 240 °/s (4.19 rad/s)

J6 340 °/s (5.93 rad/s)

Robot Motion Range:

J2 ±130°

J3 +295° - 125°

J4 ±270°

J5 ±125°

J6 ±360

EQUIPPED WITH:

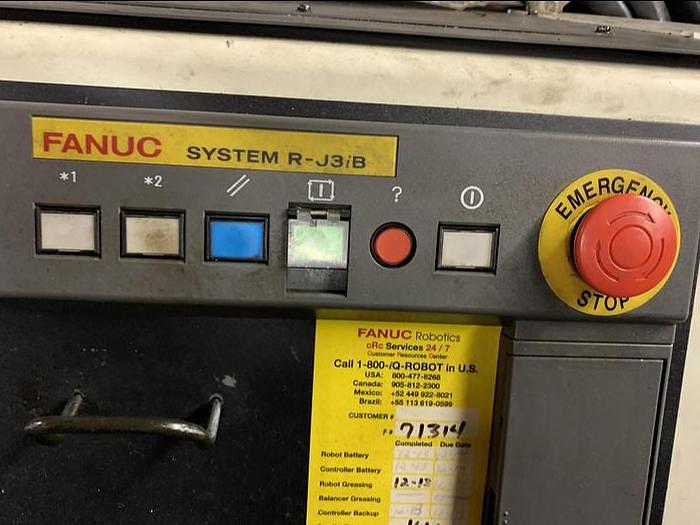

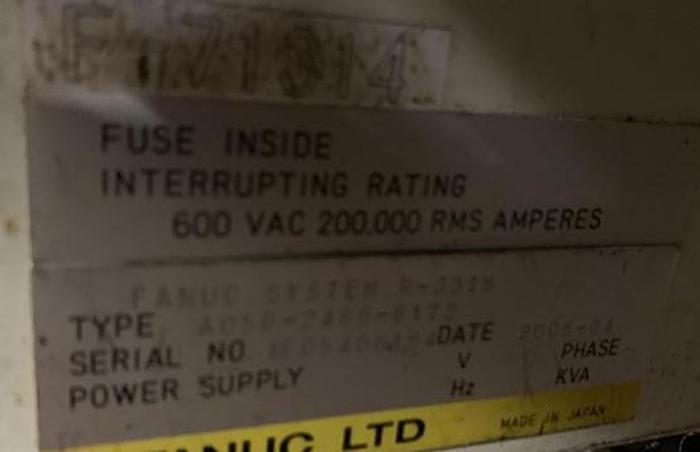

RJ3iB CONTROLLER

CABLES FOR ROBOT AND GANTRY SYSTEM

TEACH PENDANT CONTROL RELIABLE

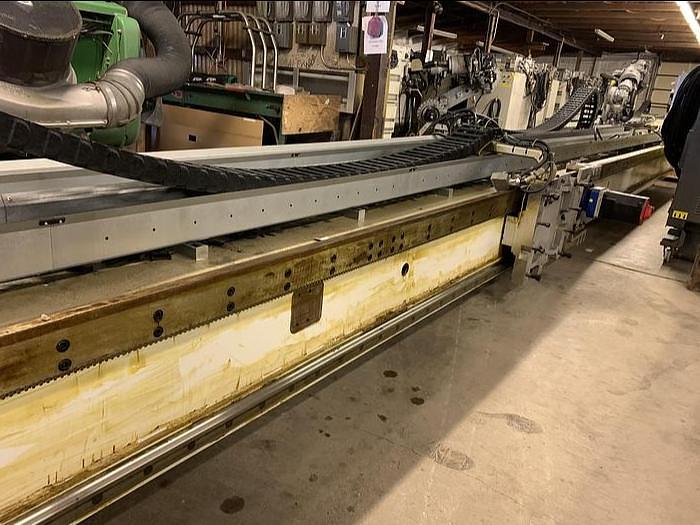

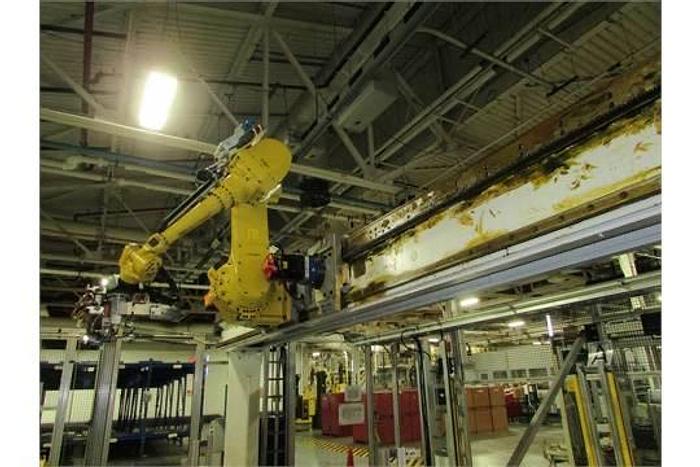

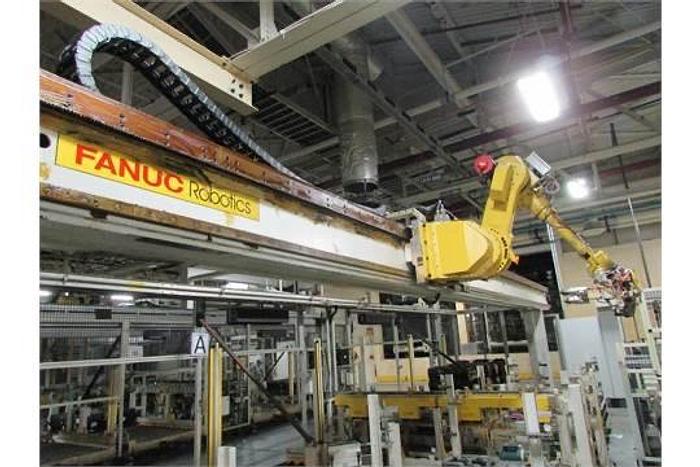

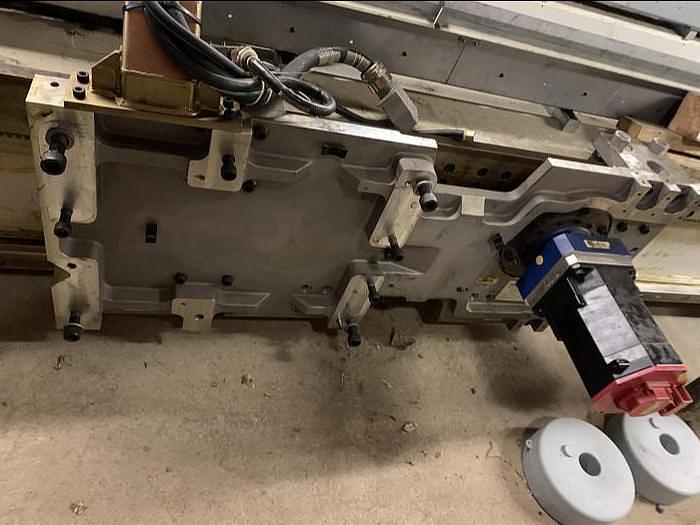

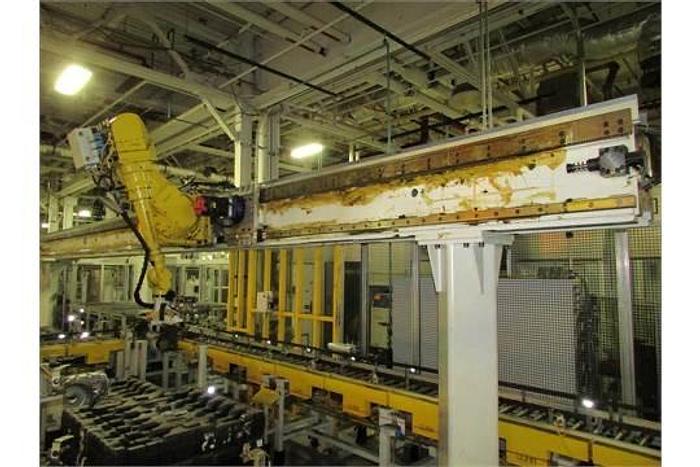

FANUC GANTRY BEAM WITH 10,200 MM OF TRAVEL

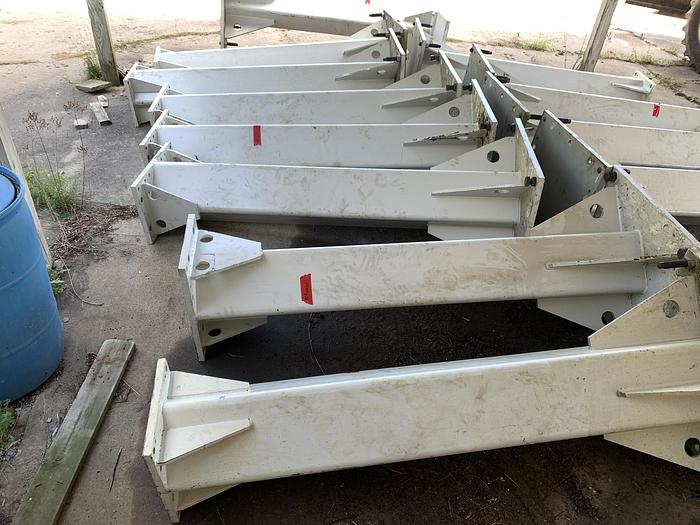

8' TALL COLUMNS THAT SUPPORT THE GANTRY BEAM

FOB TRUCK 300 EAST SECOND STREET, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
