YASKAWA MOTOMAN EA1400N DUAL ARM ROBOTIC MIG WELDING CELL WITH 11,000 LB CAPACITY A/B SIDED INDEX TABLE

1-USED MOTOMAN SSA2000 MIG WELD CELL

WITH EA1400N 6 AXIS CNC DUAL ARM DUAL ARM EA1400N ROBOTS

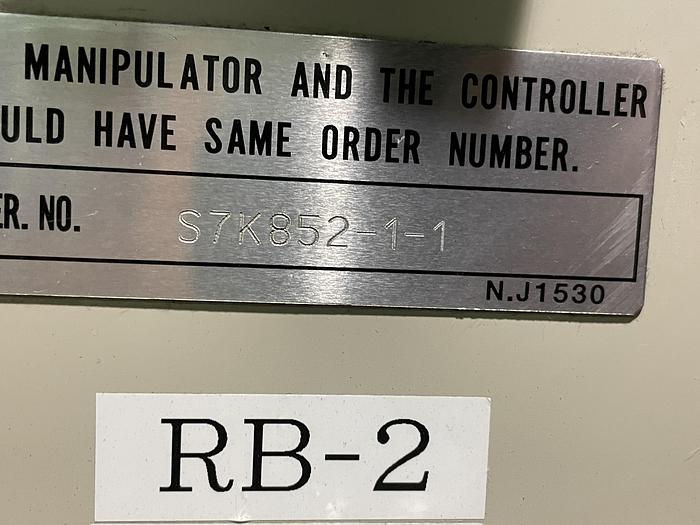

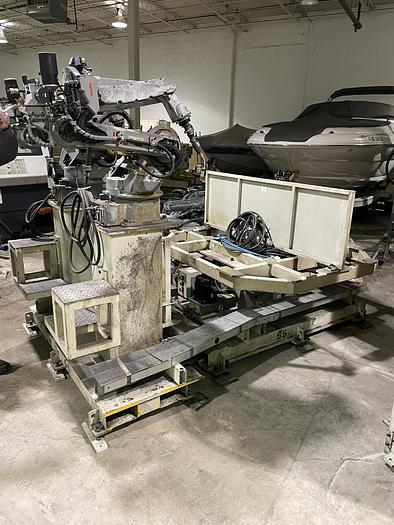

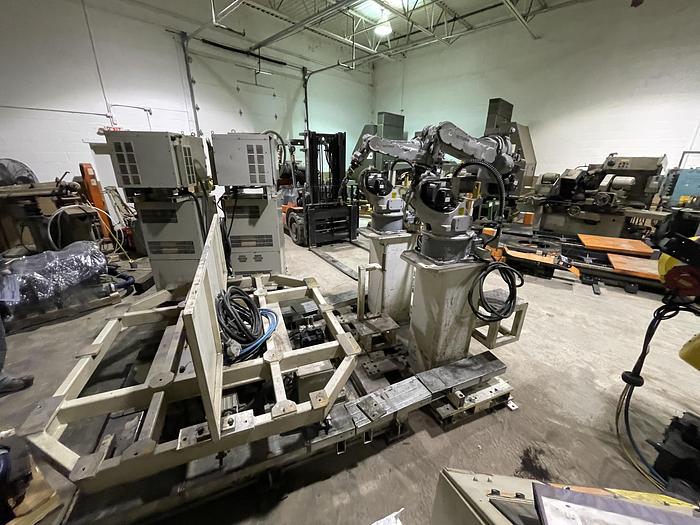

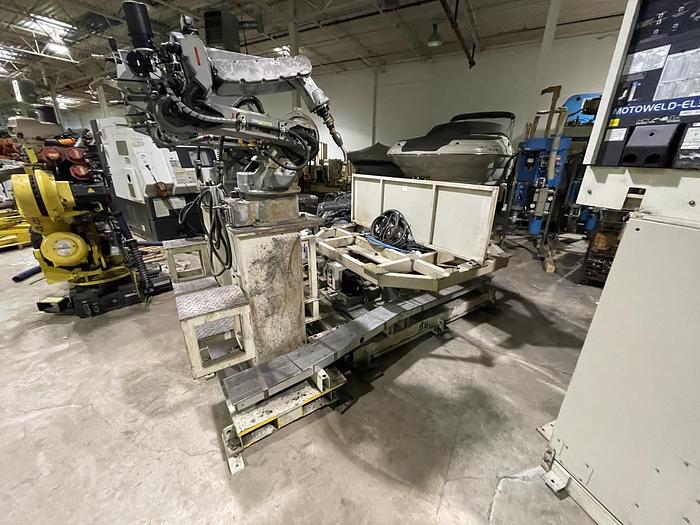

AND 11,000 LB CAPACITY A/B SIDED INDEX TABLE ORDER NUMBER S7K852-1-1 DATE OF MFG. 03/2008 STK#104261 ======================== SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: THIS IS A DUAL ARM MOTOMAN WELDING CELL. THE ROBOTS ARE MODEL EA1400N.

BUILT ON A COMMON FABRICATED BASE FOR EASY MOVING AROUND YOUR PLANT.

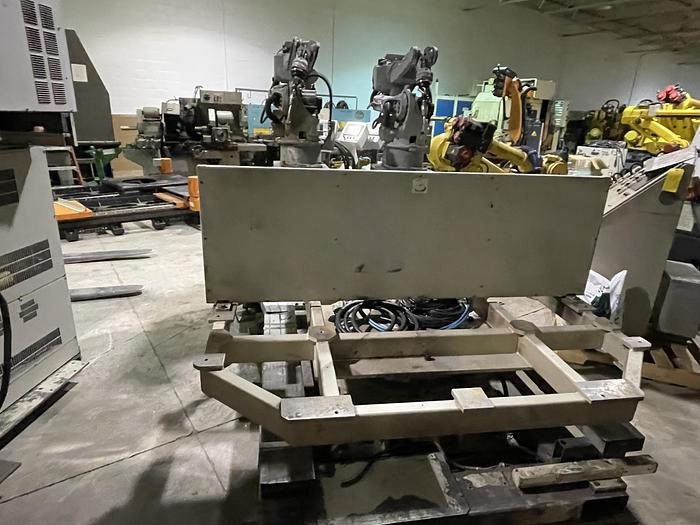

THE CELL IS EQUIPPED WITH A MOTOMAN 11,000 LB CAPACITY A/B SIDED INDEX TABLE

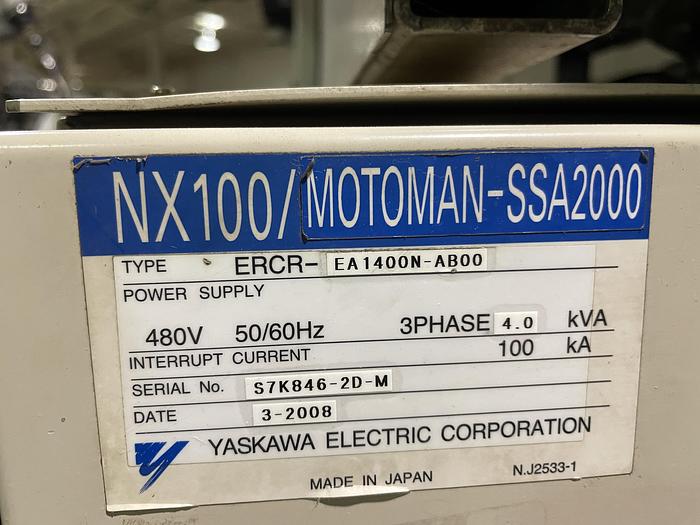

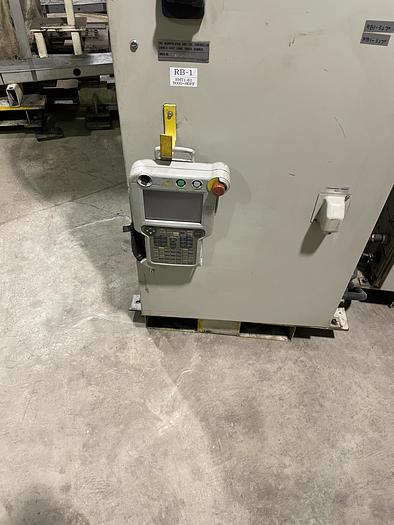

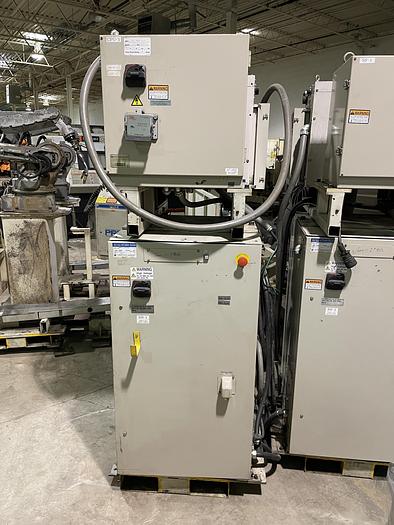

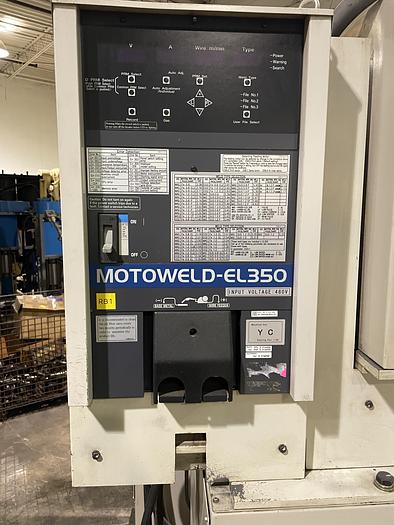

FOR UNLOAD AND LOAD WHILE WORKING. MOTOMAN NX100 CONTROLLERS. MOTOMAN

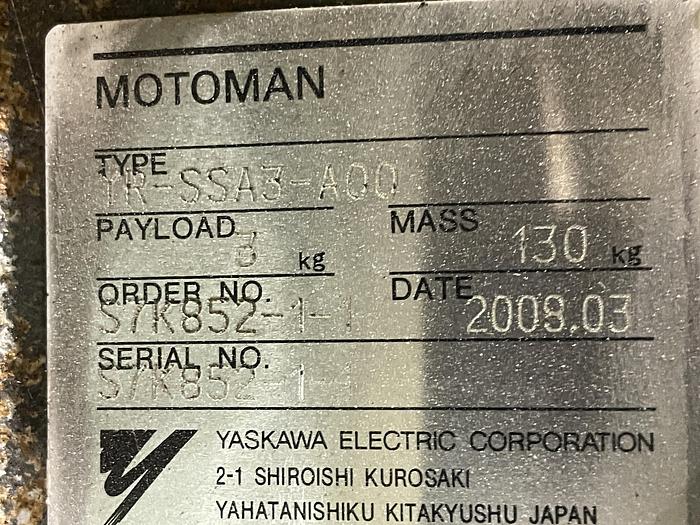

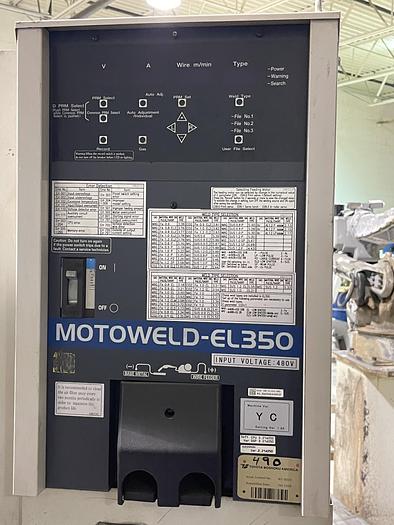

MOTOWELD EL-350 MIG WELDING POWER SUPPLIES. Both Robot Specifications: Axes: 6 Payload: 3.00 kg H-Reach: 1390.00 mm Repeatability: ±0.0800 mm Robot Mass: 130.00 kg Structure: Articulated Mounting: Floor Robot Motion Speed: J1 150 °/s (2.62 rad/s) J2 160 °/s (2.79 rad/s) J3 170 °/s (2.97 rad/s) J4 340 °/s (5.93 rad/s) J5 340 °/s (5.93 rad/s) J6 520 °/s (9.08 rad/s) Robot Motion Range: J1 ±170° J2 +155° - 90° J3 +190° - 170° J4 ±150° J5 +180° - 45° J6 ±200° The EA1400N is Motoman's popular welding robot arm paired with the powerful NX100controller. The EA 1400N Motoman welder is a ceiling and wall mountable robot designed for floor plan flexibility. ThE EA-1400N variation allows you to work from above or the side, fitting easily into your workplace. CELL EQUIPPED WITH: 2-MOTOMAN EA1400N MIG WELDING ROBOTS 2-WELD GUNS 2-MOTOMAN MOTOWELD EL-350 MIG WELDING POWER SUPPLIES 1-MOTOMAN MOTOPOS 5,000 KG (11,000 LB) CAPACITY A/B SIDED INDEX TABLE 2-NX100 CONTROLLERS TIP CLEANERS FOB TRUCK IMLAY CITY, MI 48444 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS.
