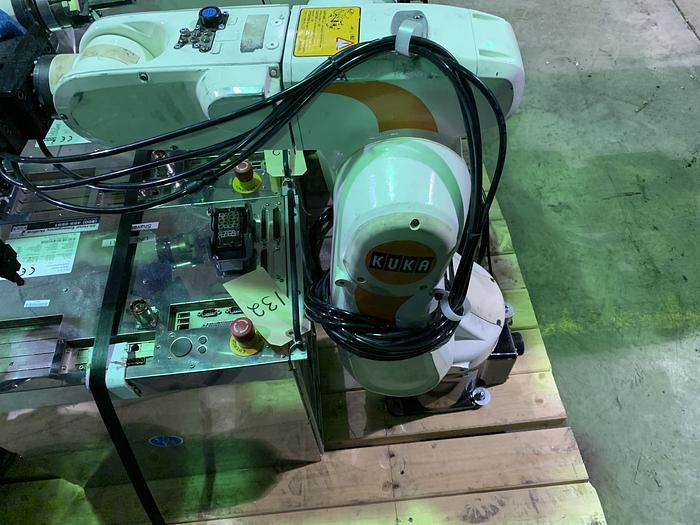

KUKA KR 5 SIXX R650 6 AXIS CNC ROBOT

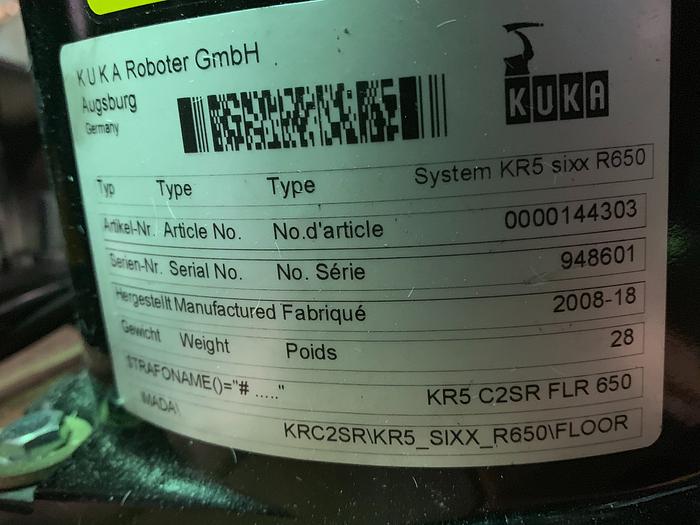

1-USED KUKA KR-5 SIXX R650 6 AXIS CNC ROBOT CAPACITY 5KG X 650MM REACH SERIAL NUMBER 948601 DATE OF MFG 2008 CONTROL S/N 00499 STK#103744 ====================================== SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: Robot Specifications: Axes: 6 Payload: 5.00kg H-Reach: 650.00mm Repeatability: ±0.0200mm Robot Mass: 127.00kg Structure: Articulated Mounting: Floor, Inverted Robot Motion Speed: J1 375 °/s (6.54 rad/s) J2 300 °/s (5.24 rad/s) J3 375 °/s (6.54 rad/s) J4 410 °/s (7.16 rad/s) J5 410 °/s (7.16 rad/s) J6 660 °/s (11.52 rad/s) Robot Motion Range J1 ±170° J2 +45° - 190° J3 +165° - 119° J4 ±190° J5 ±120° J6 ±358° EQUIPPED WITH: KRC2-SR CONTROL CABLES TEACH PENDANT Short cycle times, combined with high accuracy, make the KUKA KR 5 Sixx an excellent choice for many assembly applications. A compact arm with a 5 kg payload, the KR 5 Sixx is available with two reach options: 650 mm and 850 mm. The high-speed arm has six axes and can be mounted on the floor or on the ceiling. A high-performance KUKA PC-based controller makes the KR 5 Sixx KR C2 SR easy to program and operate. Robot Applications: Assembly Robots Bonding / Sealing Robots Coating Robots Machine Loading Robots Material Handling Robots Packaging Robots Pick and Place Robots FOB TRUCK, IMLAY CITY, MI 48444 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. WWW.RABIND.COM 586-752-0090
