ABB IRB 6640-235/2.55 CNC 6 AXIS ROBOT WITH IRC 5 CONTROLLER
ABB IRB 6640-235/2.55 CNC 6 AXIS ROBOT WITH IRC 5 CONTROLLER
$12,500 (USD)
Location:Imlay City, MI
Available quantity:1
Description

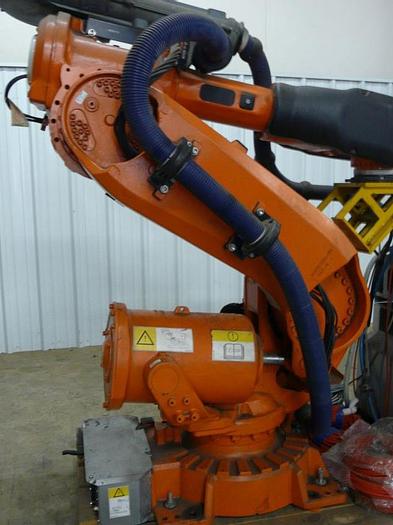

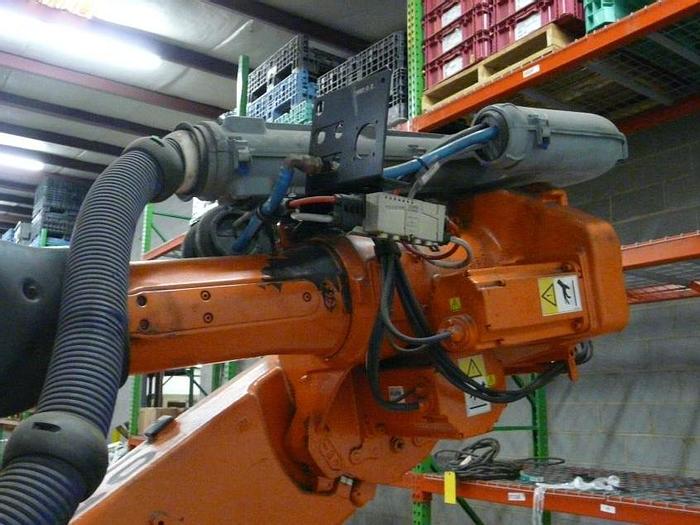

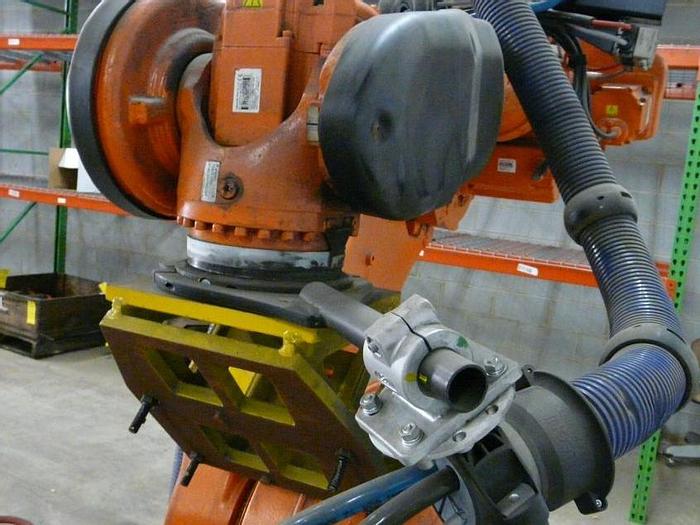

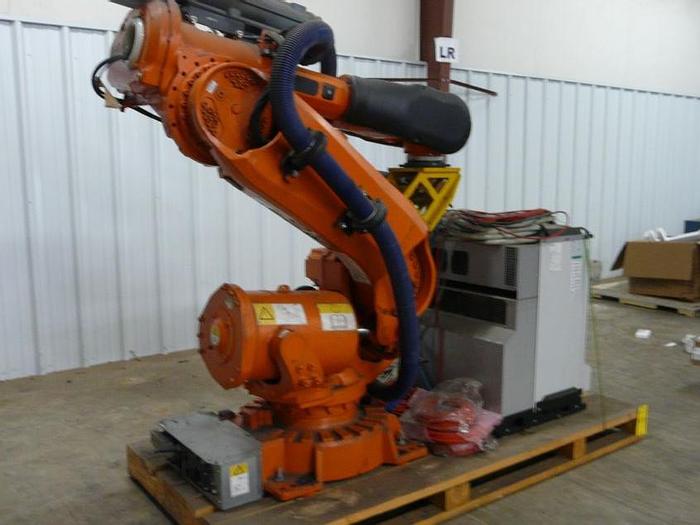

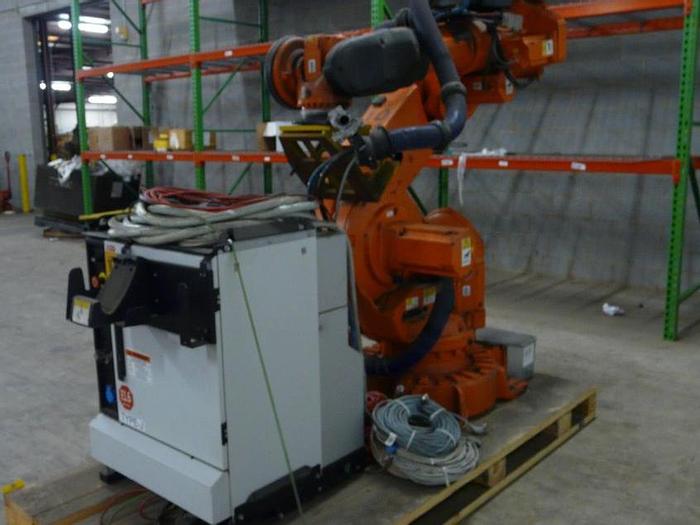

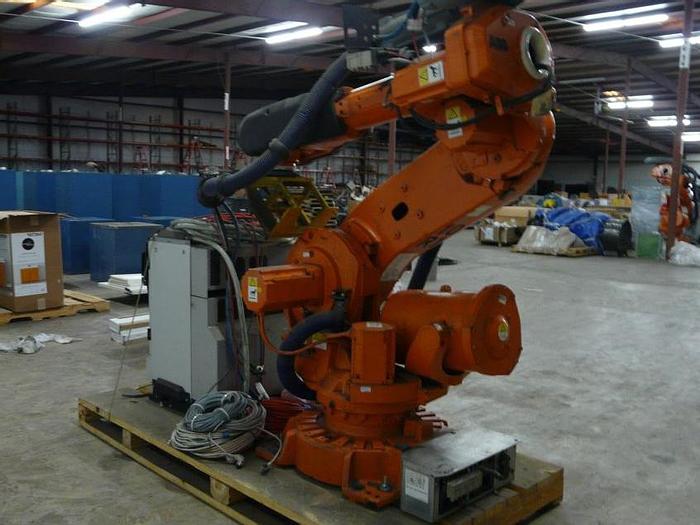

1-USED ABB IRB 6640-235/2.55 CNC 6 AXIS ROBOT WITH IRC5 CONTROLLER

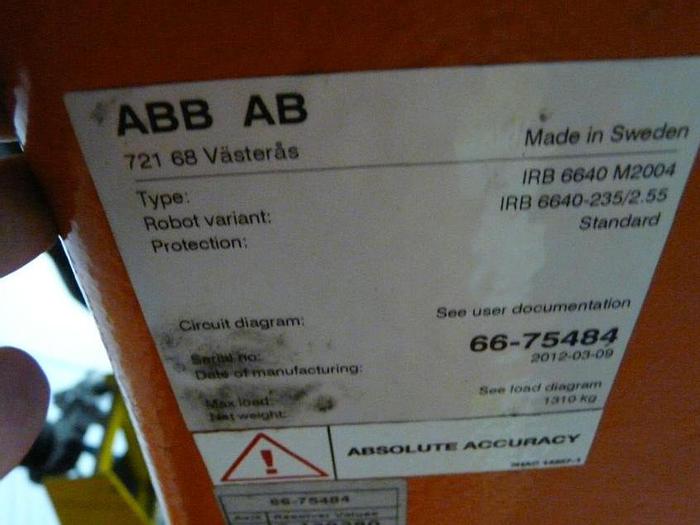

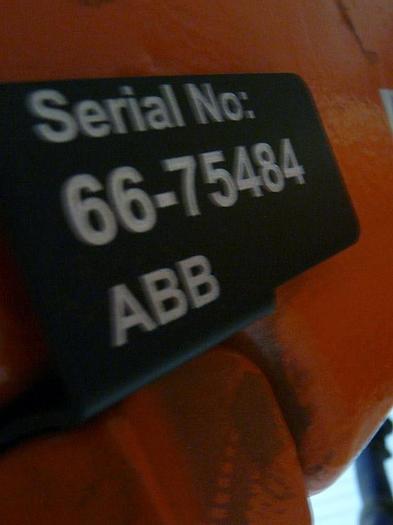

SERIAL NUMBER 66-75484
DATE OF MFG. 2012-03-09
STK#104221
========================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:
Robot Specifications:
Axes: 6
Payload: 235.00kg
H-Reach: 2550.00mm
Repeatability: ±0.0700mm
Robot Mass: 1310.00kg
Structure: Articulated
Mounting: Floor
Robot Motion Speed:
J1 100 °/s (1.75 rad/s)
J2 90 °/s (1.57 rad/s)
J3 90 °/s (1.57 rad/s)
J4 170 °/s (2.97 rad/s)
J5 120 °/s (2.09 rad/s)
J6 190 °/s (3.32 rad/s)
Robot Motion Range:
J1 ±170°
J2 +85° - 65°
J3 +70° - 180°
J4 ±300°
J5 ±120°
J6 ±360°
FROM THE OEM:
The ABB IRB 6640-235, paired with the IRC5, is the ideal robot for your material handling, machine tending, or spot welding jobs. It can tackle any heavy duty job that requires a payload of up to 235 kg, has outstanding inertia capabilities, top of the line collision resistance, easy maintenance, and simplified fork lift pockets. It has a reach of 2550 mm and can bend fully backwards, which enables it the ability to decrease its footprint and fit into tight production lines.
Customization is also easy with the upper arm extenders and different wrist modules. A variety of protection options are available such as Foundry Plus 2 or Foundry Prime 2. There are passive safety features such as load identification, movable mechanical stops, electronic positions switches (EPS), and a stiff steel structure.
The IRB 6640-235 IRC5 has TrueMove and Quick Move software to help it achieve increased path performance and monitor internal robot loads. They also help to decrease the risk of overload and increase the robot’s life cycle.
ROBOT APPLICATIONS:
MACHINE TENDING
MATERIAL HANDLING
SPOT WELDING

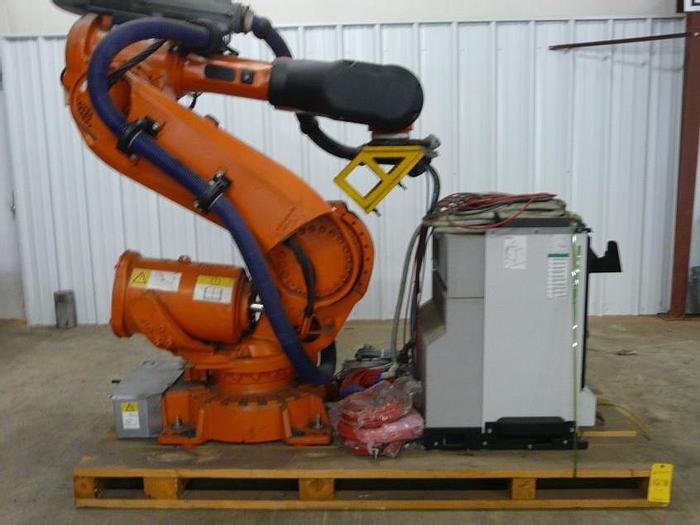

EQUIPPED WITH:

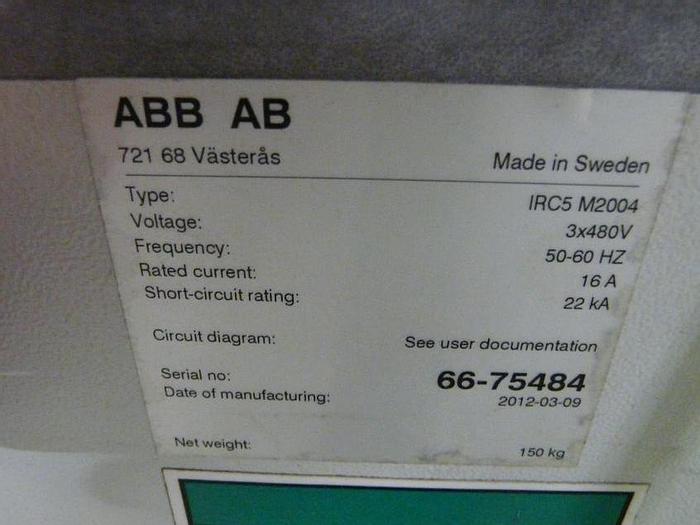

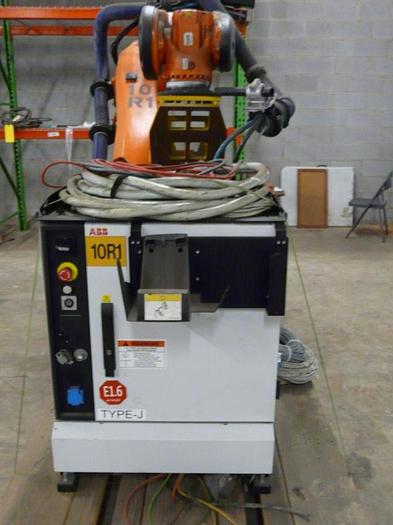

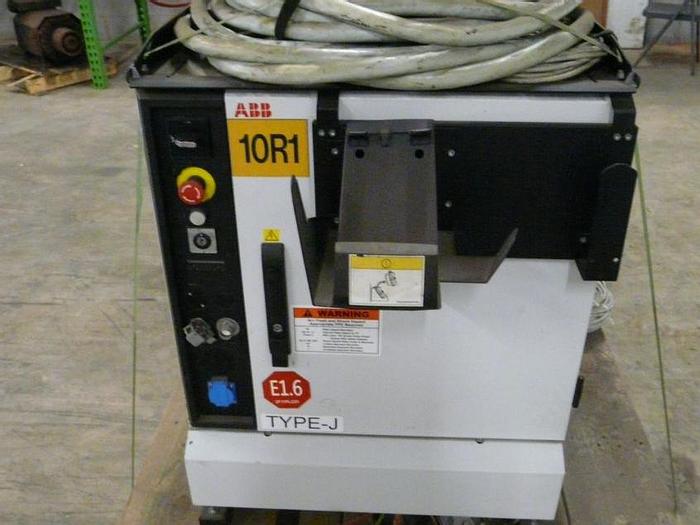

IRC5 CONTROLLER

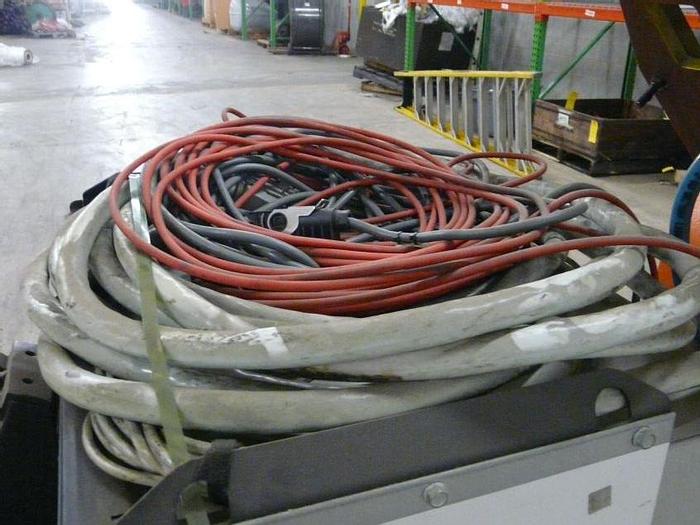

CABLES
TEACH PENDANTS
ABSOLUTE ACCURACY
FOB TRUCK, IMLAY CITY, MI. 48444 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
Specifications
Manufacturer | ABB |
Model | ABB IRB 6640-235/2.55 |
Year | 2012 |
Condition | Used |
Serial Number | 66-75484 |
Stock Number | 104221 |
