ABB IRB 6640-235/2.55 CNC 6 AXIS ROBOT WITH IRC 5 CONTROLLER

Sold

ABB IRB 6640-235/2.55 CNC 6 AXIS ROBOT WITH IRC 5 CONTROLLER

$12,500 (USD)

Location:Imlay City, MI

Available quantity:1

Description

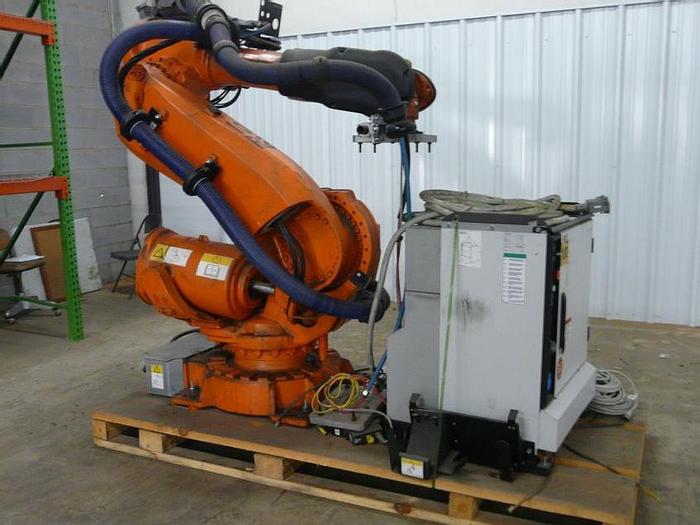

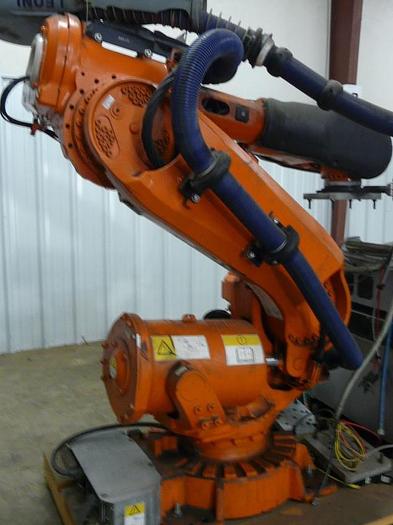

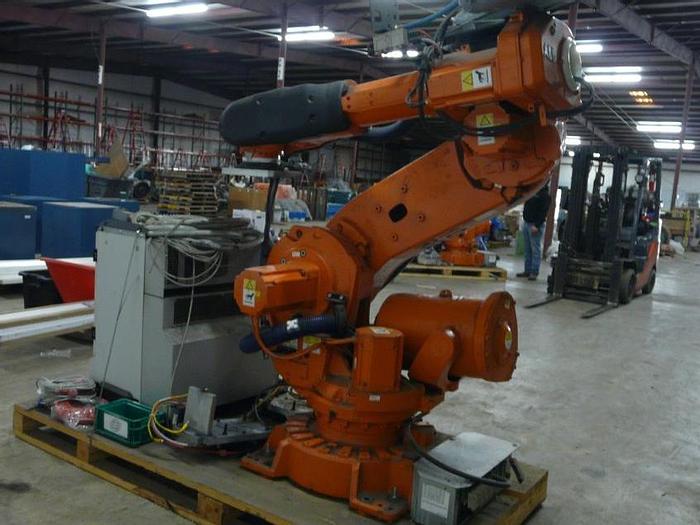

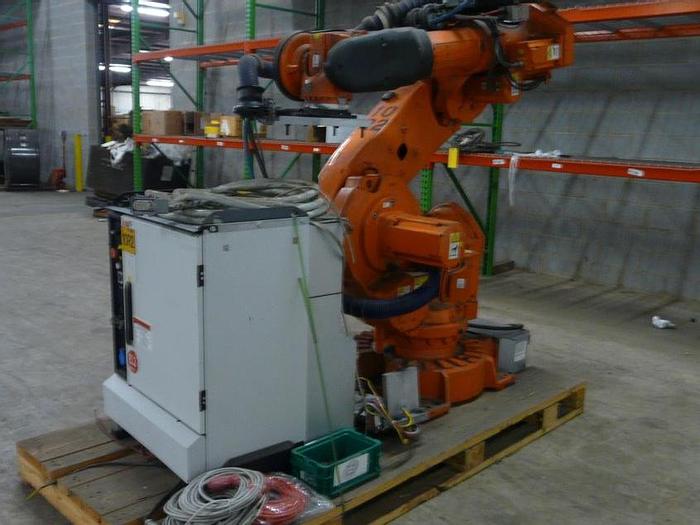

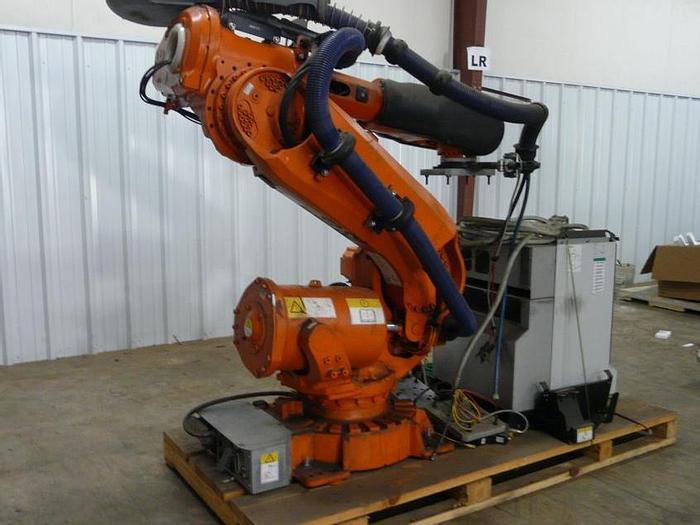

1-USED ABB IRB 6640-235/2.55 CNC 6 AXIS ROBOT WITH IRC5 CONTROLLER

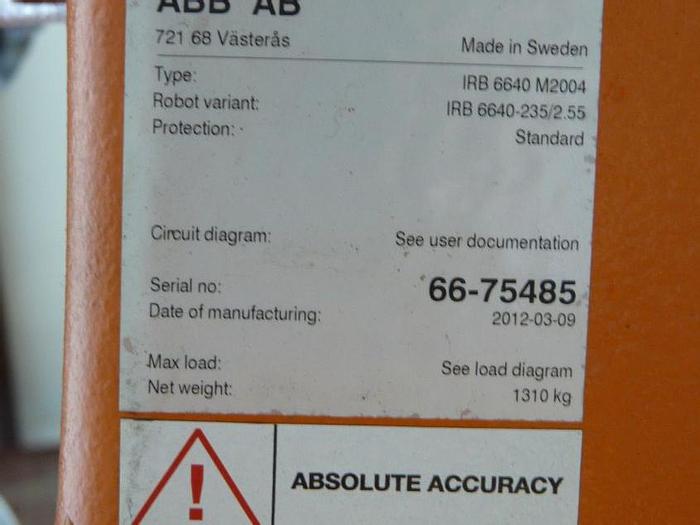

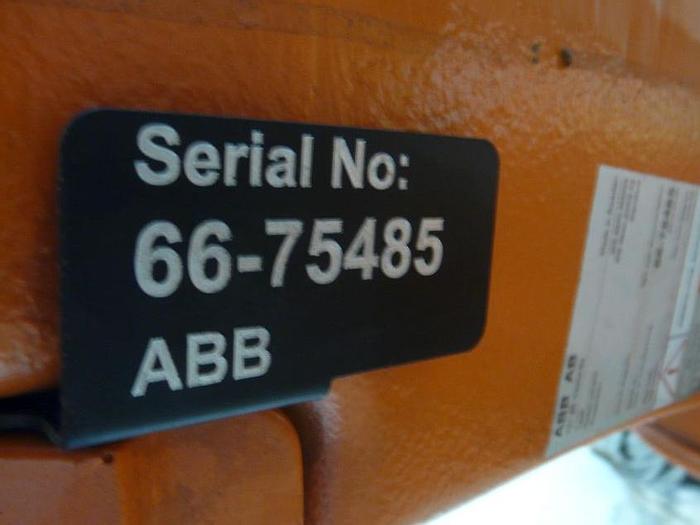

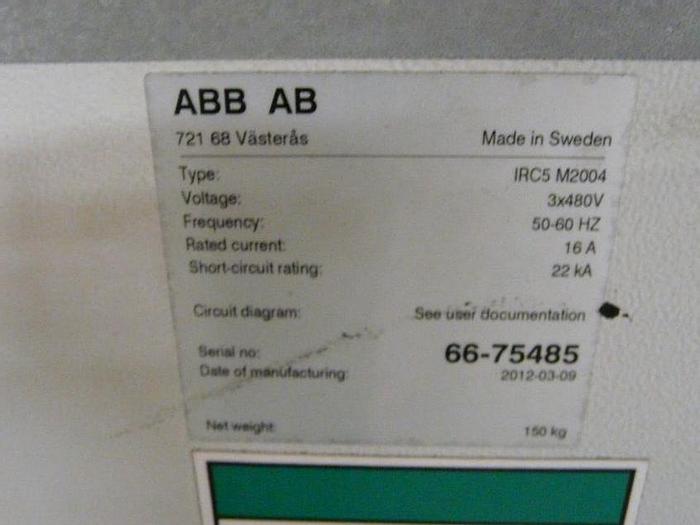

SERIAL NUMBER 66-75485

DATE OF MFG 2012-03-09

STK#104220

=============================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


Robot Specifications:

Axes: 6

Payload: 235.00kg

H-Reach: 2550.00mm

Repeatability: ±0.0700mm

Robot Mass: 1310.00kg

Structure: Articulated

Mounting: Floor


Robot Motion Speed:

J1 100 °/s (1.75 rad/s)

J2 90 °/s (1.57 rad/s)

J3 90 °/s (1.57 rad/s)

J4 170 °/s (2.97 rad/s)

J5 120 °/s (2.09 rad/s)

J6 190 °/s (3.32 rad/s)


Robot Motion Range:

J1 ±170°

J2 +85° - 65°

J3 +70° - 180°

J4 ±300°

J5 ±120°

J6 ±360°


FROM THE OEM:


The ABB IRB 6640-235, paired with the IRC5, is the ideal robot for your material handling, machine tending, or spot welding jobs. It can tackle any heavy duty job that requires a payload of up to 235 kg, has outstanding inertia capabilities, top of the line collision resistance, easy maintenance, and simplified fork lift pockets. It has a reach of 2550 mm and can bend fully backwards, which enables it the ability to decrease its footprint and fit into tight production lines.


Customization is also easy with the upper arm extenders and different wrist modules. A variety of protection options are available such as Foundry Plus 2 or Foundry Prime 2. There are passive safety features such as load identification, movable mechanical stops, electronic positions switches (EPS), and a stiff steel structure.


The IRB 6640-235 IRC5 has TrueMove and Quick Move software to help it achieve increased path performance and monitor internal robot loads. They also help to decrease the risk of overload and increase the robot’s life cycle.


ROBOT APPLICATIONS:

MACHINE TENDING

MATERIAL HANDLING

SPOT WELDING


EQUIPPED WITH:

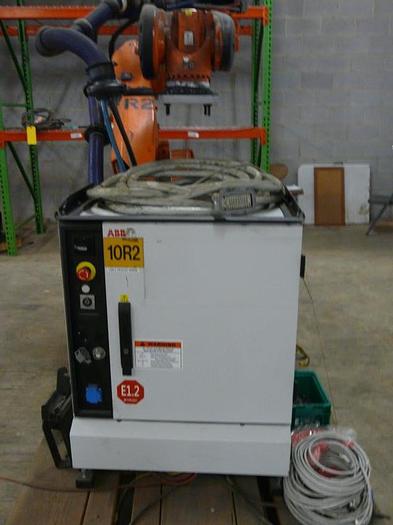

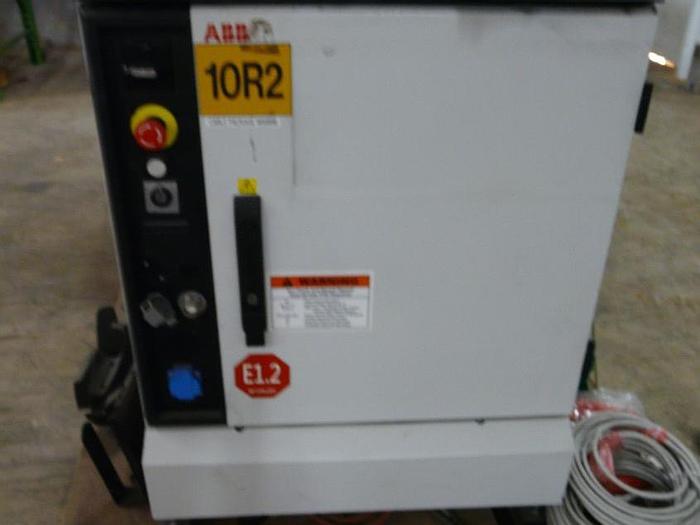

IRC5 CONTROLLER

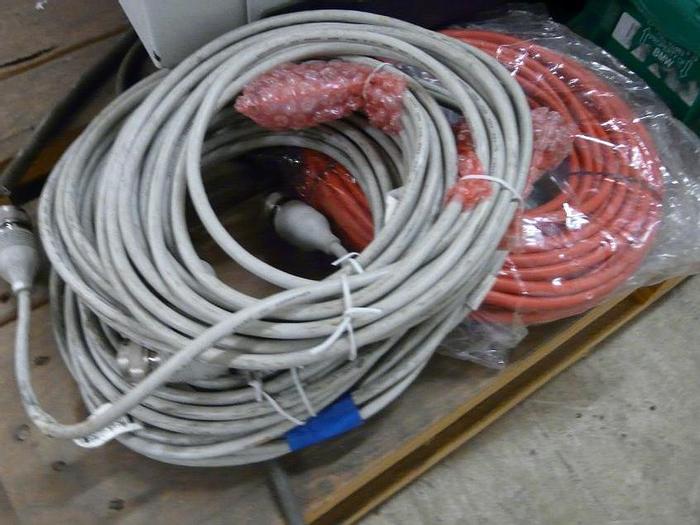

CABLES

TEACH PENDANTS

ABSOLUTE ACCURACY


FOB TRUCK, IMLAY CITY, MI. 48444 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerABB
ModelABB IRB 6640-235/2.55
Year2012
ConditionUsed
Serial Number66-75485
Stock Number104220
