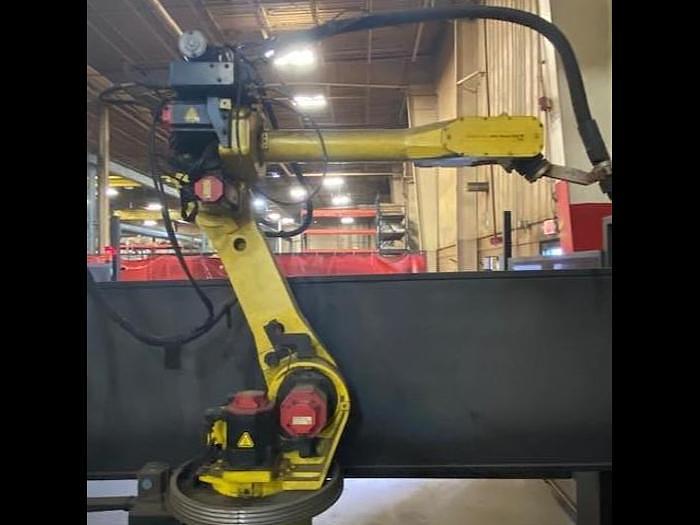

LINCOLN SYSTEM 55 DUAL TRUNION MIG WELDING CELL WITH FANUC ARCMATE 120iB/10L 6 AXIS CNC ROBOT

1-USED LINCOLN SYSTEM 55 DUAL TRUNION MIG WELDING CELL WITH

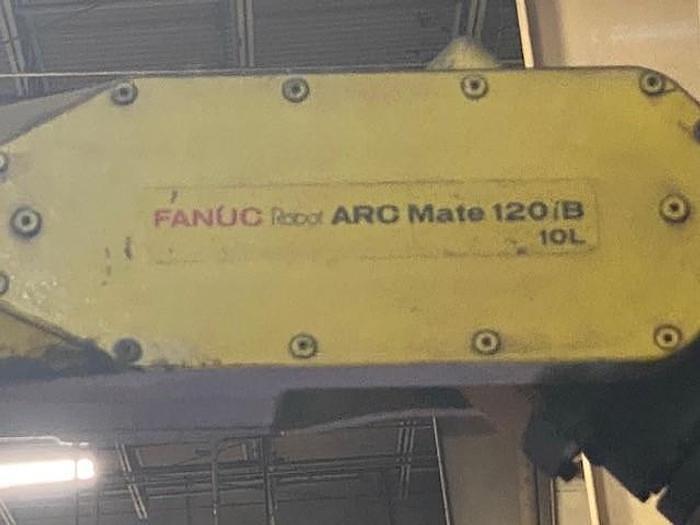

FANUC ARCMATE 120iB/10L 6 AXIS CNC ROBOT

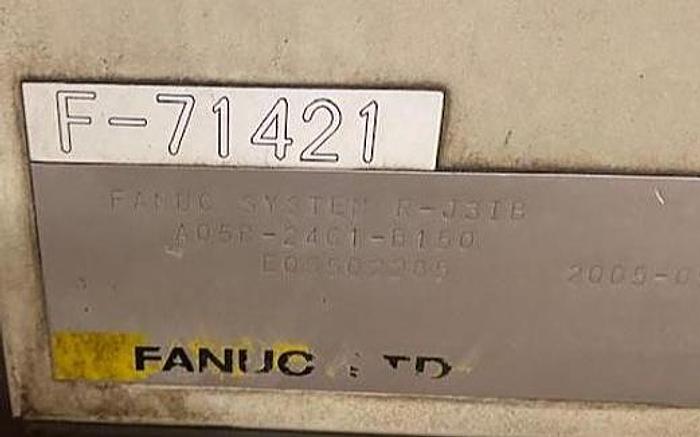

SERIAL NUMBER F71421

DATE OF MFG 05/2005

STK#104194

============================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

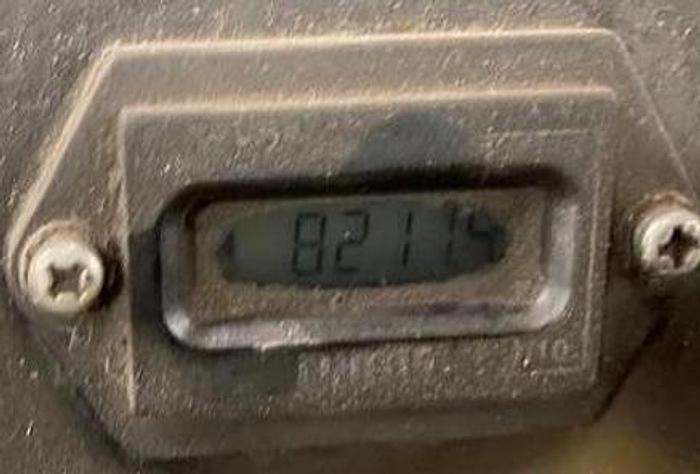

HOURS SHOWN ON METER 8,211

Robot Specifications

Axes:6

Payload:10.00kg

H-Reach:1885.00mm

Repeatability:±0.1000mm

Robot Mass:220.00kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1165 °/s (2.88 rad/s)

J2165 °/s (2.88 rad/s)

J3175 °/s (3.05 rad/s)

J4350 °/s (6.11 rad/s)

J5340 °/s (5.93 rad/s)

J6520 °/s (9.08 rad/s)

Robot Motion Range:

J1±170°

J2+160° - 90°

J3+285° - 170°

J4±200°

J5±140°

J6±450°

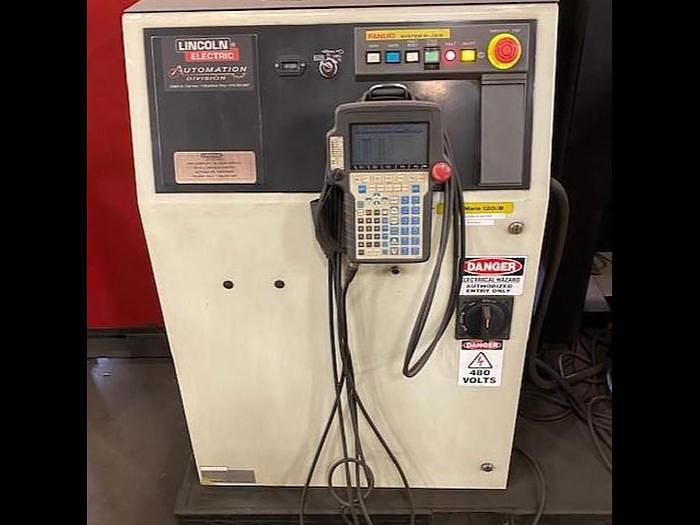

Robot Controller:

• FANUC R-J3iB Controller

Robot Applications:

• MIG Welding Robots
• Plasma Welding Robots
• TIG Welding Robots
• Welding Automation Robots
• Arc Welding Robots

INCLUDES:

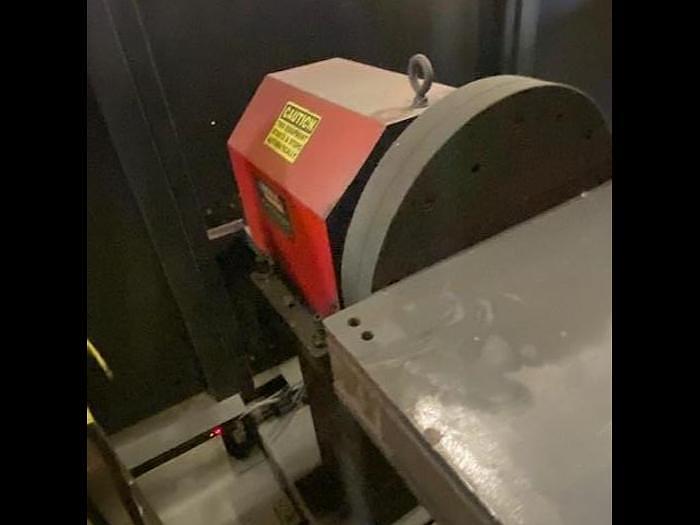

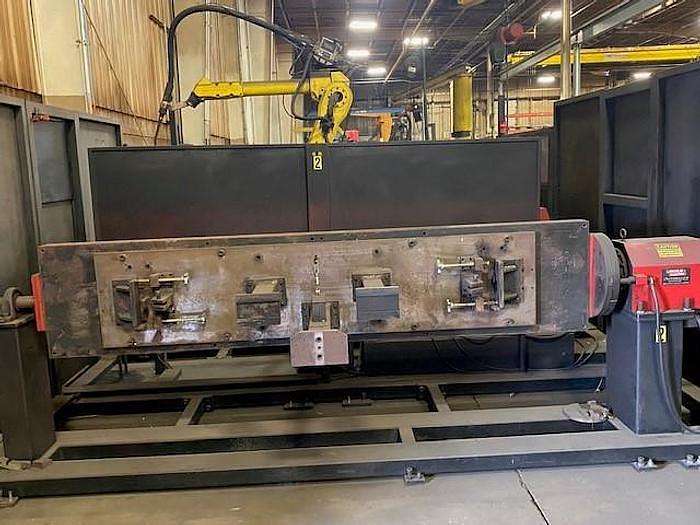

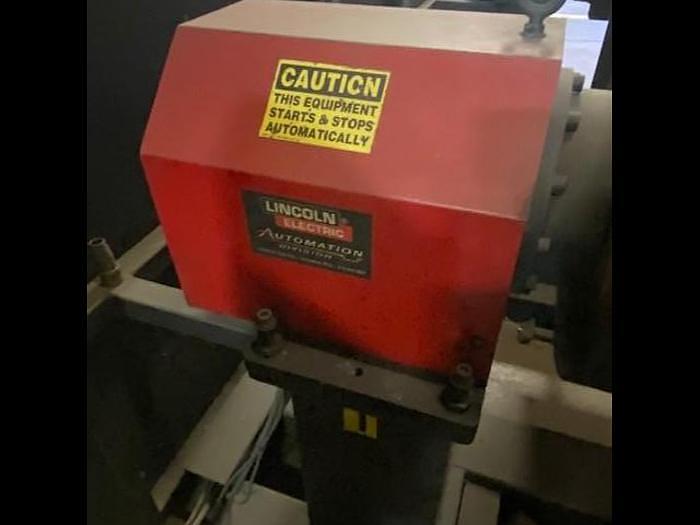

LINCOLN DUAL TRUNION PACKAGE APPROX. 10' CENTERS

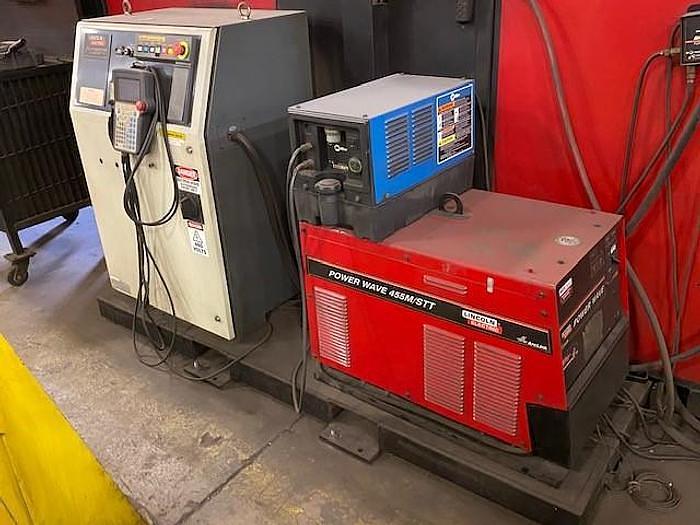

LINCOLN POWERWAVE 455

TORCH TIP

WIRE FEED

TEACH PENDANT

CABLES

LIGHT CURTAINS

FOB TRUCK, IMLAY CITY, MI 48444 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
