GENESIS SYSTEM 3X DUAL TRUNION MIG WELDING CELL WITH 2 ARC MATE 100iC R-30iB ROBOTS

1-USED GENESIS SYSTEM 3X DUAL TRUNION MIG WELDING CELL WITH

2 FANUC ARC MATE 100iC ROBOTS RUNNING ON R-30iB CONTROLS.

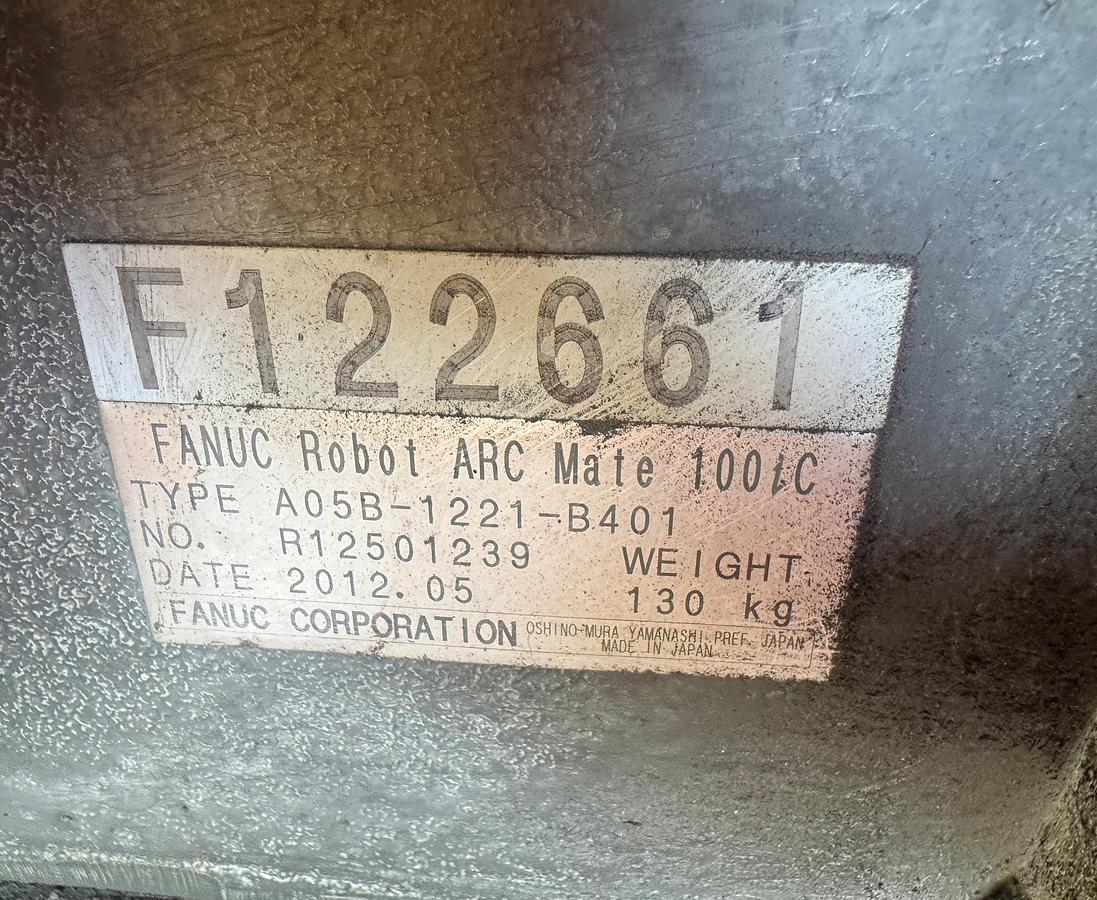

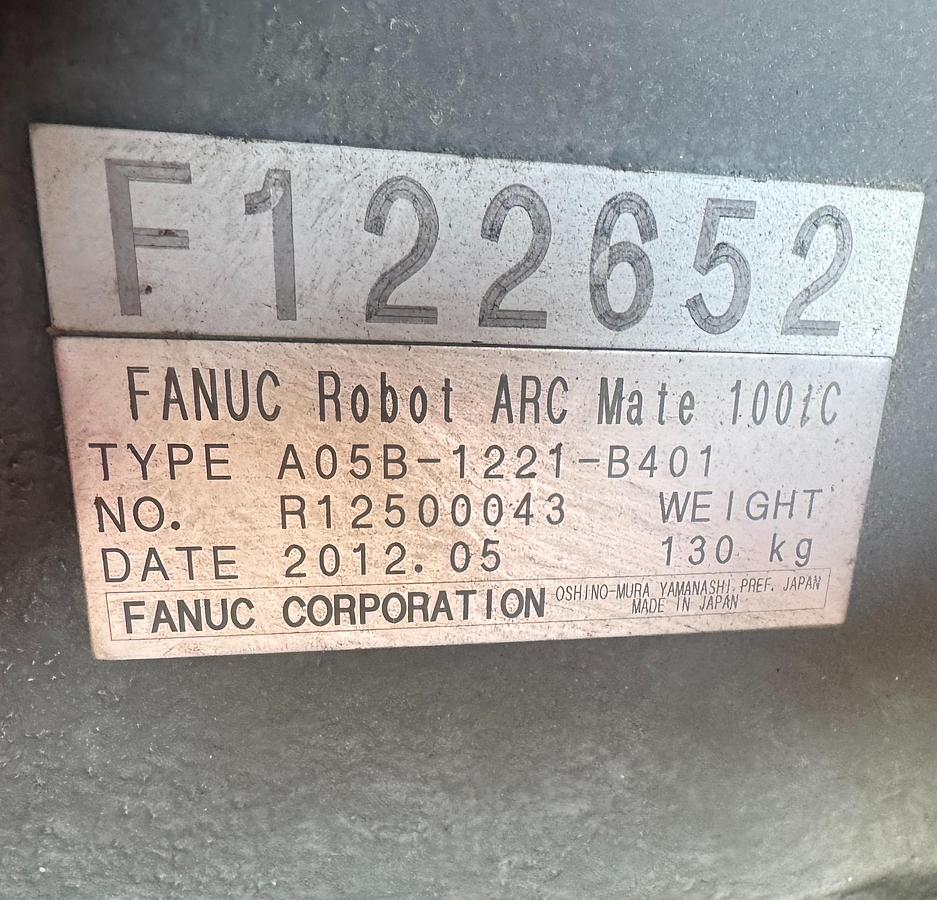

ROBOT SERIAL NUMBERS F122661 & F122652

DATE OF MFG. 2012

STK#105295

=================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

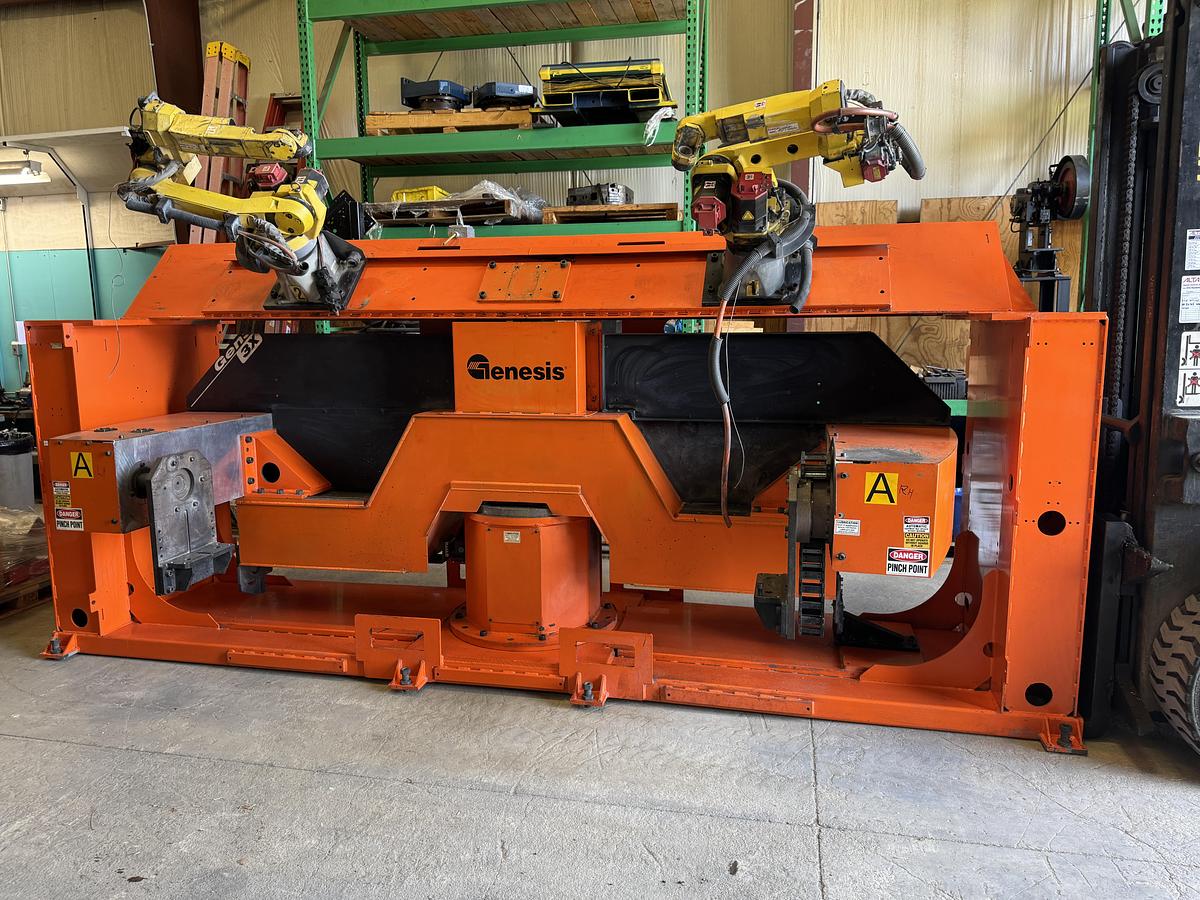

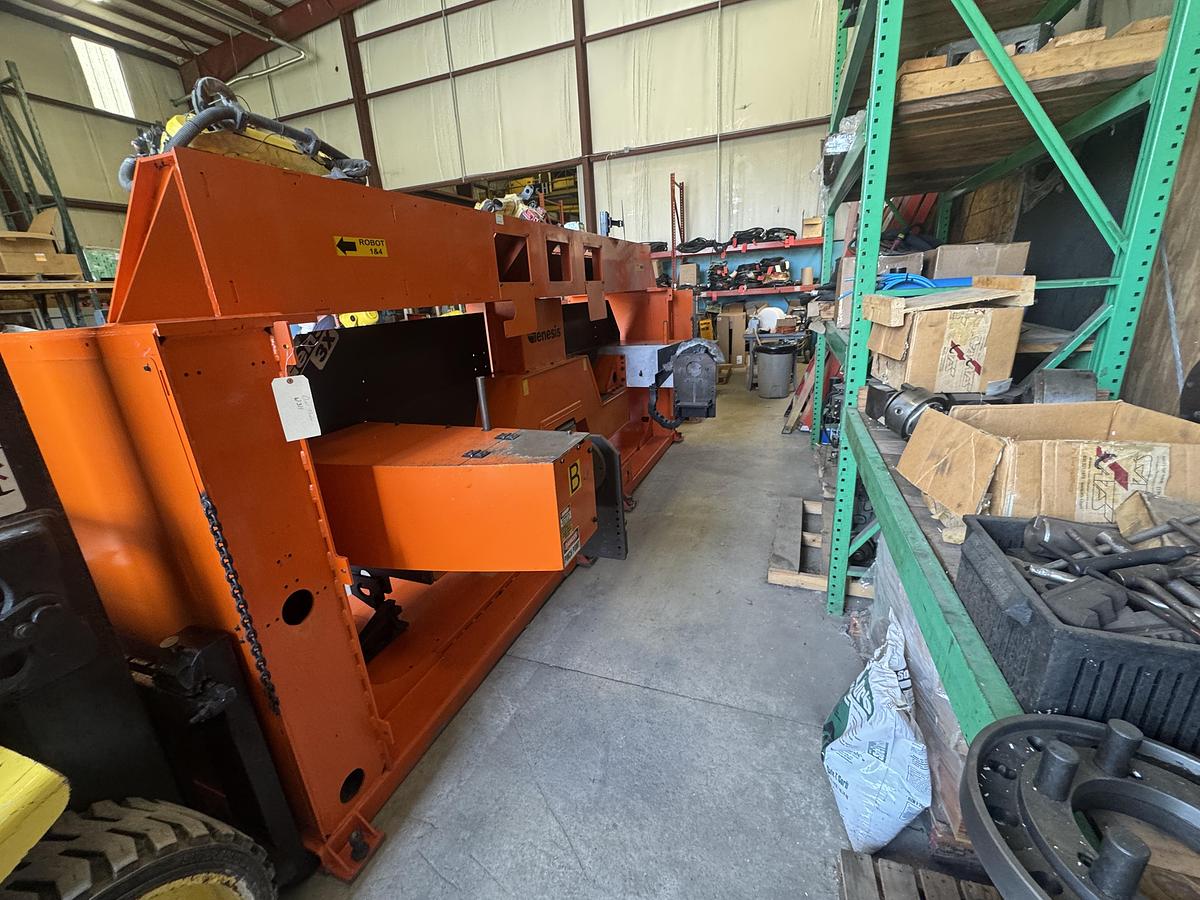

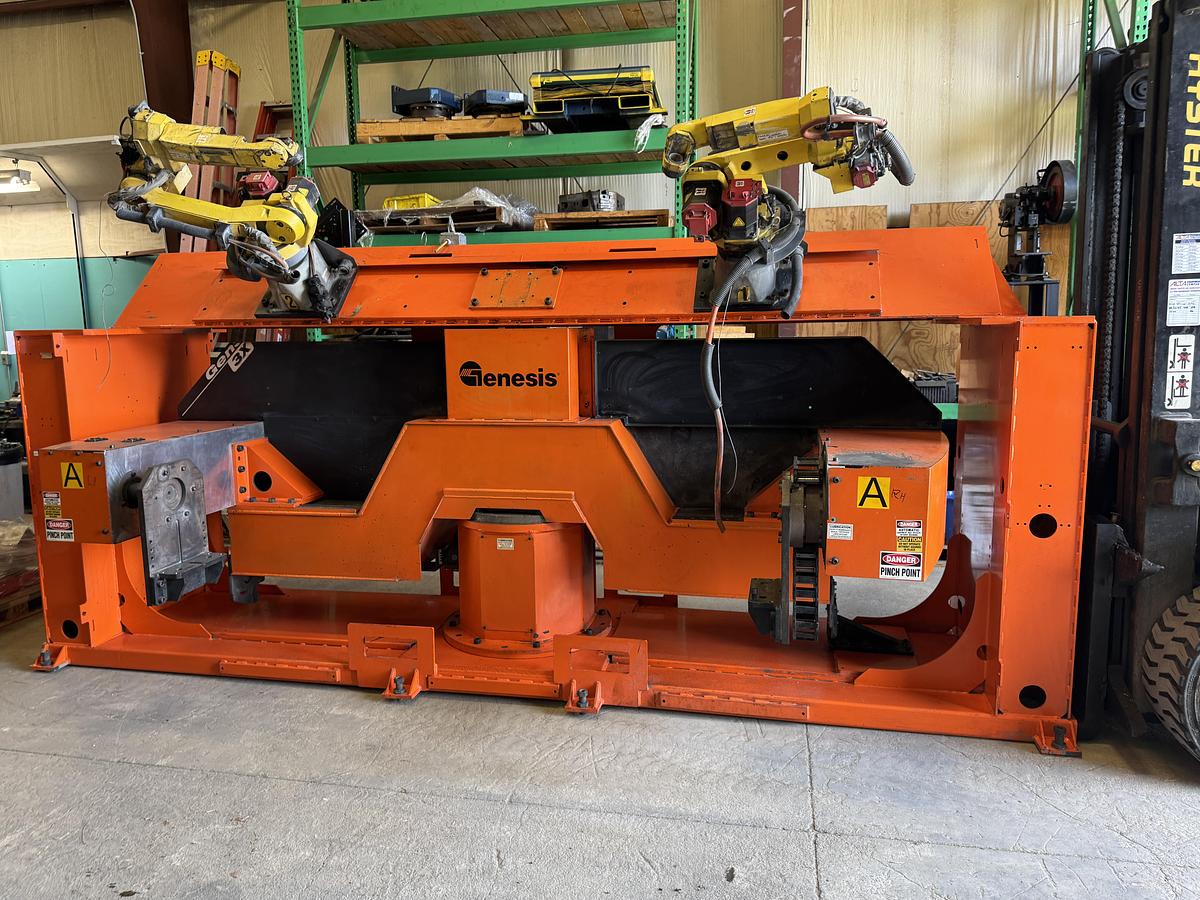

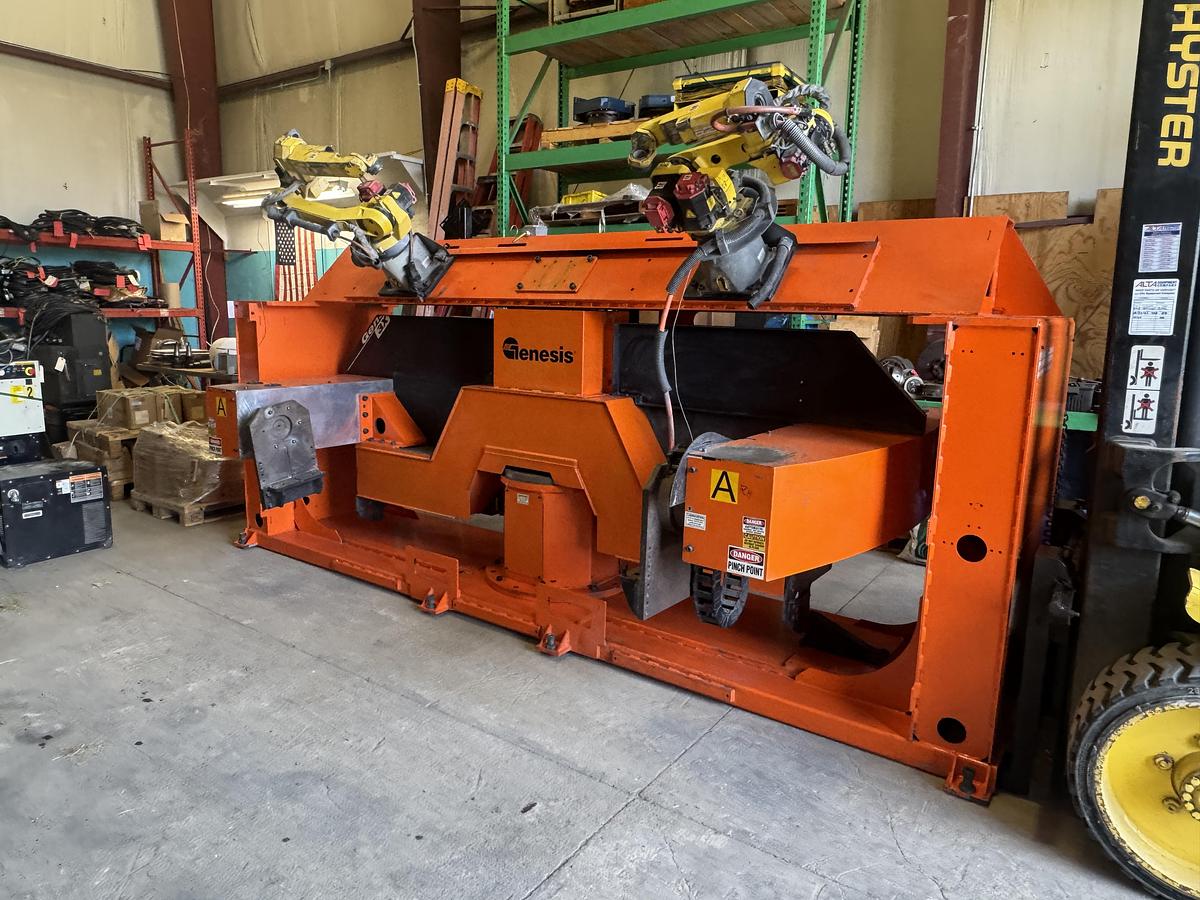

THE GENESIS SYSTEM 3X DUAL TRUNNION WELDING CELL IS BUILT

ON EASILY MOVEABLE FABRICATED BASE. THE ROBOTS SIT ABOVE

THE DUAL TRUNNION ASSEMBLY FACING ONE SIDE OF THE SYSTEM.

THE DUAL TRUNNIONS ARE BUILT ON AN INDEXING CENTER COLUMN

AND ROTATE 180 DEGREES UNDER THE ROBOTS TO ALLOW FOR

WORK LOAD AND UNLOAD ON YOUR FIXTURE ON ONE SIDE WHILE

WELDING IS PERFORMED ON THE WORK SIDE OF THE SYSTEM.

THE SYSTEM IS HIGHLY FLEXIBLE WITHIN IT'S WORKING RANGE

AS THE BOTH THE AC MOTOR DRIVEN SIDE AND THE FREE TURNING

BEARING SIDE (TAILSTOCK SIDE) OF THE TRUNNION ARE ADJUSTABLE

IN LENGTH. ALLOWING FOR BOTH THE HEADSTOCK AND TAILSTOCK

TO BE ADJUSTED APPROX. 1' TO OR FROM THE CENTER LINE OF THE

TRUNNION. IN ADDITION ON THE ROBOT TOP MOUNTING PLATE THERE

ARE PRE-DRILLED AND TAPPED HOLES ALLOWING THE ROBOTS TO BE

REPOSITIONED BASED ON THE LENGTH SET FOR THE TRUNNIONS.

THE MAX. CENTER DISTANCE FOR THE TRUNNIONS CAN BE SET TO APPROX. 8'

THE MIN. CENTER DISTANCE FOR THE TRUNNIONS CAN BE SET TO APPROX 6'

THEY CAN ALSO BE ADJUSTED ANY WHERE IN BETWEEN IN APPOX. 2" INCREMENTS.

APPROX. SWING 49"

MAIN SWEEP INDEX TIME 4.5 TO 5 SECONDS

APPROX. WEIGHT CAPACITY PER STATION 2,204 LBS (OPTIONAL 3,009 LBS)

NOT SURE HOW THIS CELL WAS BUILT.

THE ROBOTS IN THIS CELL AS EQUIPPED:

The Fanuc Arc Mate100iC robot creates a large work area and maintains high speeds throughout, conquering up to 10 kg of payload, all the while using a slim wrist enabling entry into small openings in the work space. In addition, this robot arm moves 15% faster than the other robots in its class and can process large parts and use complex tooling without compromising productivity. The FANUC ARC Mate 100iC is compatible with all major brands of welding equipment and can be interfaced with most types of servo-driven or indexing positioners. The Robot is Compatible with Fanuc RJ3iC or R30iA Controller.

Robot Specifications:

Axes: 6

Payload: 10kg

H-Reach: 1420mm

Repeatability: ±0.08mm

Robot Mass: 130kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 210 °/s (3.67 rad/s)

J2 190 °/s (3.32 rad/s)

J3 210 °/s (3.67 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 600 °/s (10.47 rad/s)

Robot Motion Range:

J1 ±360°

J2 ±250°

J3 ±447°

J4 ±380°

J5 +380° - 280°

J6 +720° - 540°

Applications:

Arc Welding Robots

Laser Welding Robots

MAG Welding Robots

MIG Welding Robots

Orbital Welding Robots

Oxyacetylene Welding Robots

Plasma Cutting Robots

Plasma Welding Robots

Submerged Arc Welding Robots

TIG Welding Robots

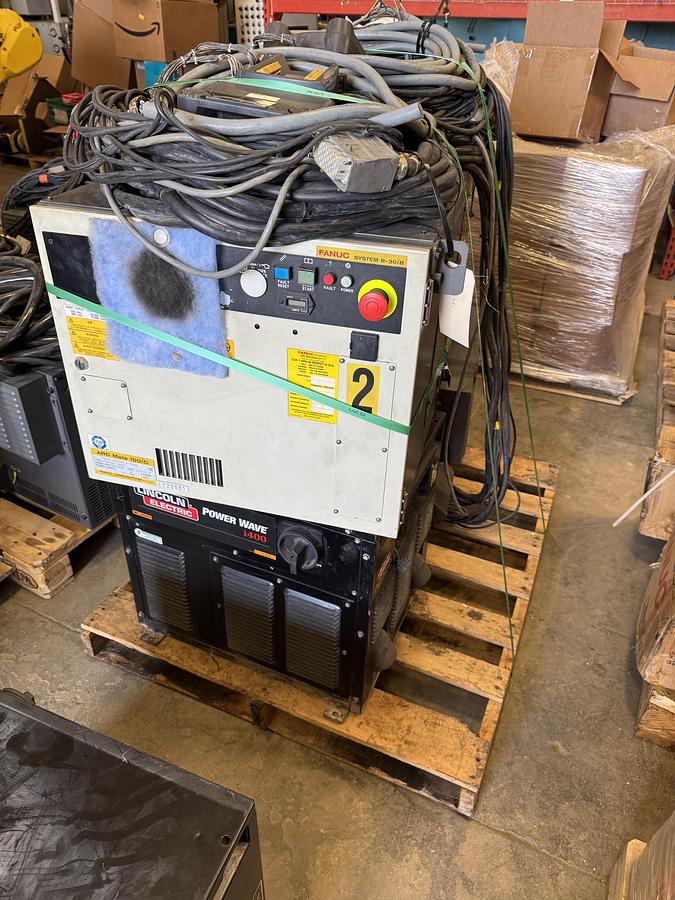

CELL EQUIPPED WITH:

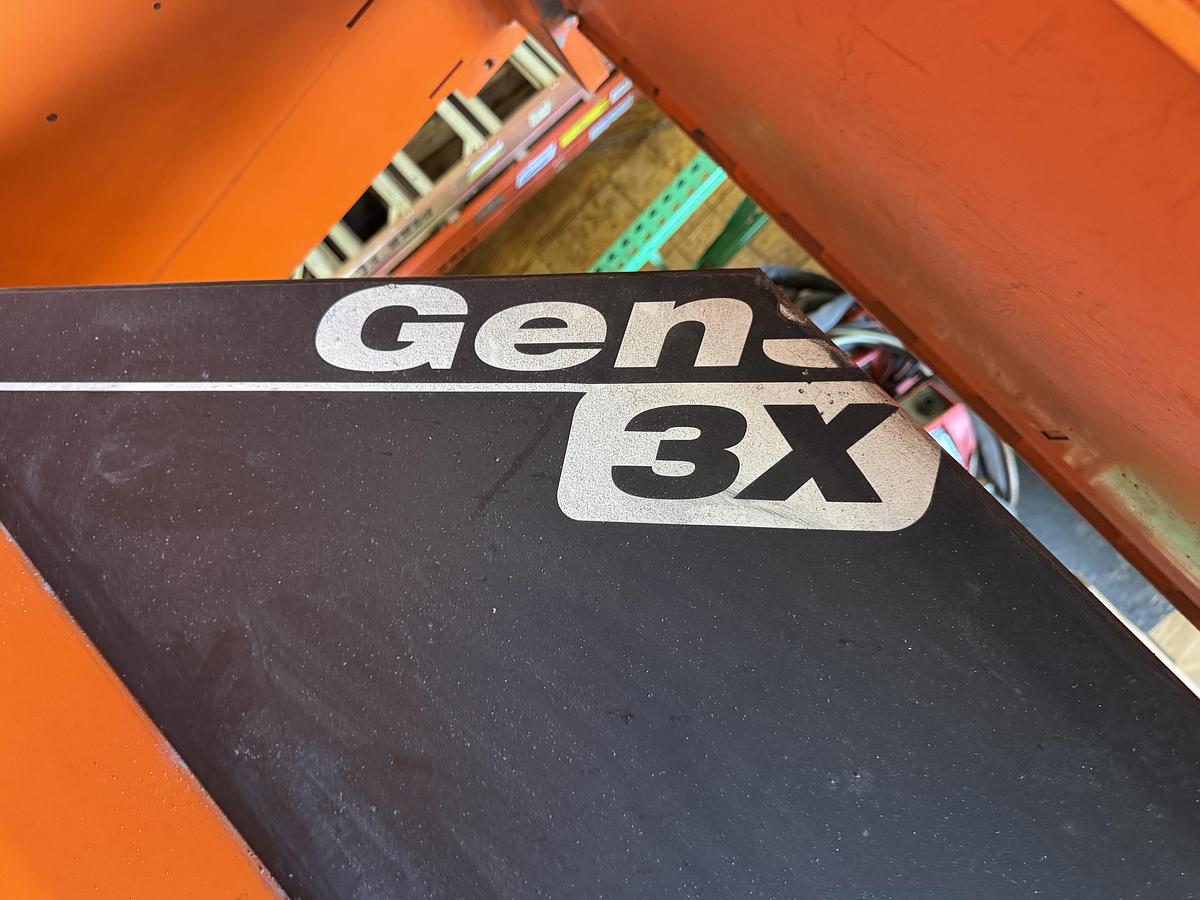

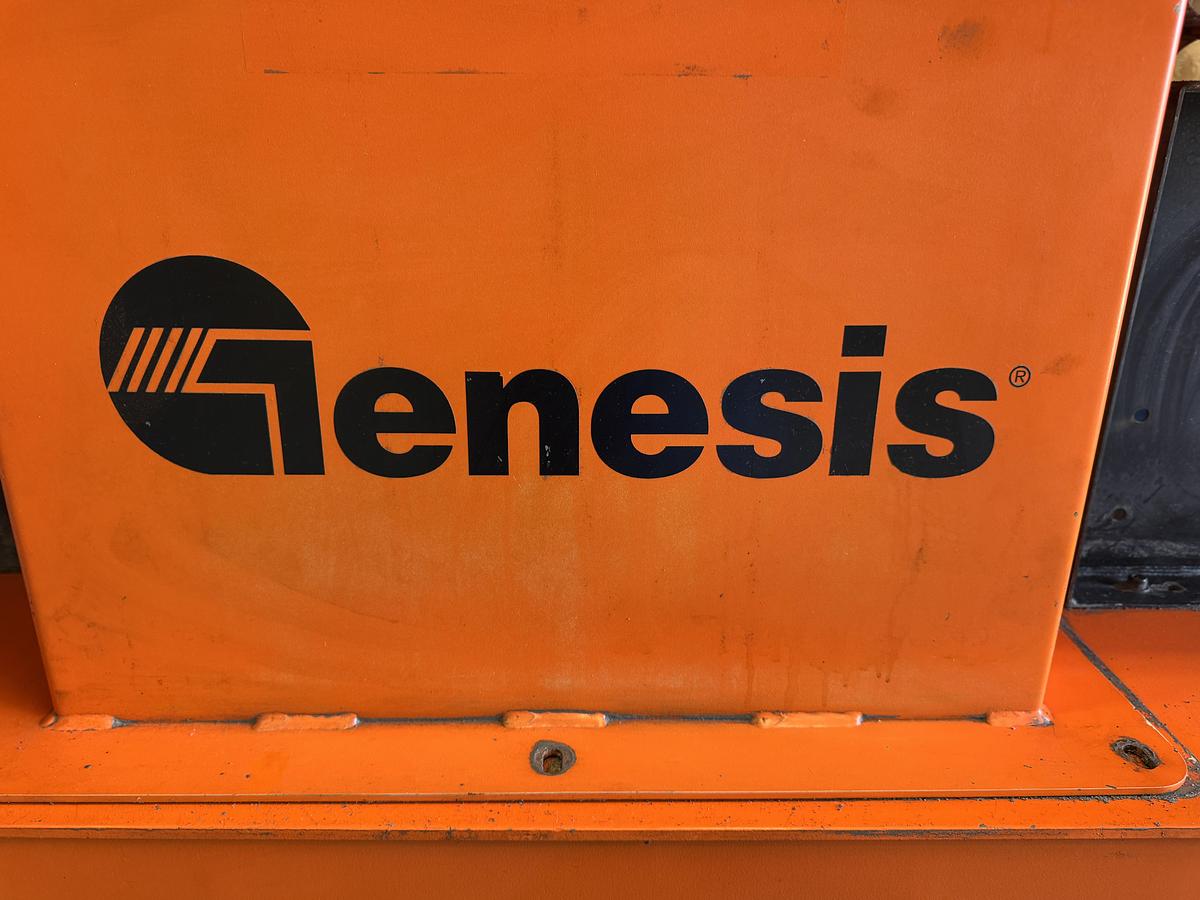

GENESIS SYSTEM 3X DUAL TRUNNION INDEXING WELDING FIXTURE

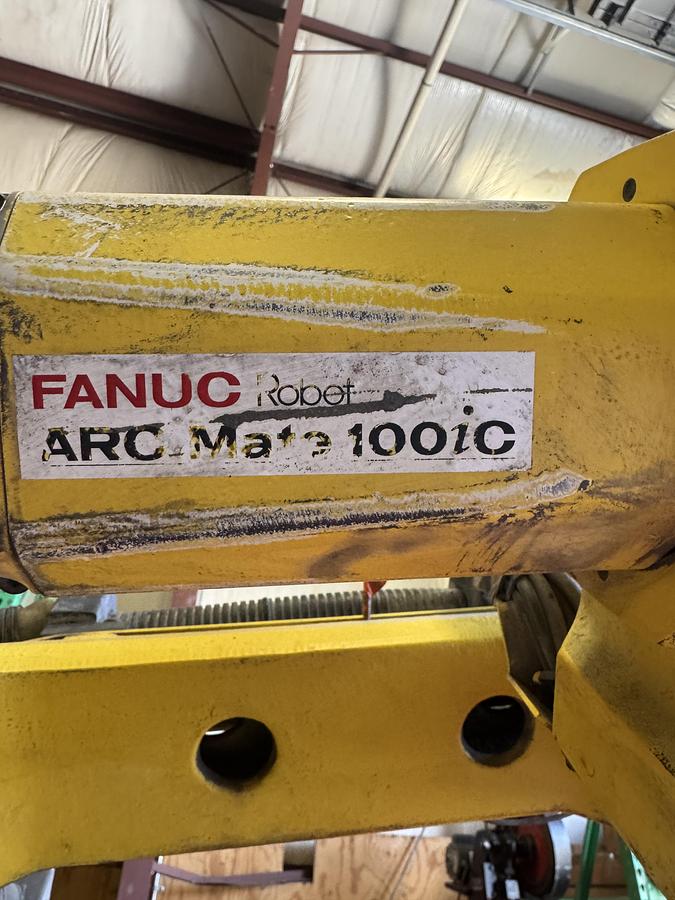

2 FANUC ARC MATE 100iC ROBOTS

2 FANUC R-30iB CONTROLLERS

2 SETS FANUC ROBOT CONNECTION CABLES

2 FANUC COLOR TEACH PENDANTS

2 LINCOLN I-400 WELDING POWER SUPPLIES

1 TORCH TIP CLEANER

2 LINCOLN WIRE FEEDERS

2 WELDING TORCHES

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.

CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.

See Our Arc Mate Stock as well as other Robots that lend themselves to Mig Welding Applications.

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
