FANUC ARCMATE 100iB/6S ROBOTIC LINCOLN SYSTEM 05 MIG WELDING CELL

Sold

FANUC ARCMATE 100iB/6S ROBOTIC LINCOLN SYSTEM 05 MIG WELDING CELL

Location:Imlay City, MI

Available quantity:1

Description

48 HOURS ON METER USED FOR TRAINING ONLY.

1-USED FANUC ARCMATE 100iB/6S LINCOLN SYSTEM O5 MIG WELDING CELL HOURS SHOWN ON METER 48

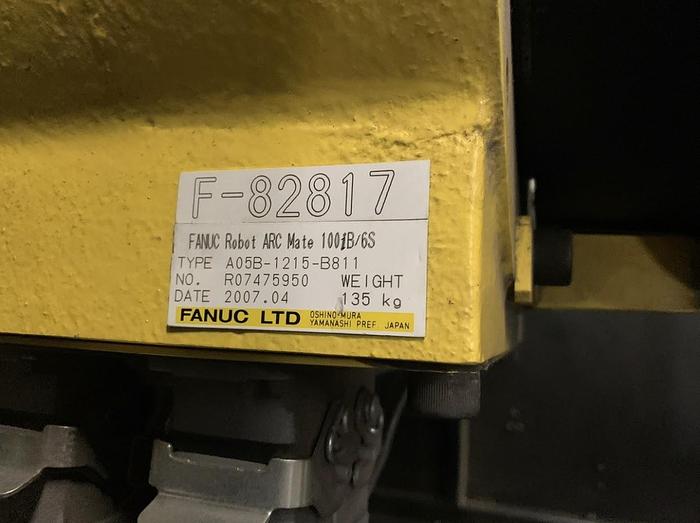

SERIAL NUMBER F82817

DATE OF MFG. 04/2007

STK#104183

=========================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


A Fanuc 100iB/6S is a high speed welding robot with a short arm for tight spaces. A compact design allows for easy installation and transportation of the FANUC 100iB/6S system. The small size of the ARC Mate 100iB/6S allows for very small weld cells or a high density of arc welding torches in a given area while high axis speeds enhance product output.


Robot Specifications:

Axes: 6

Payload: 6.00kg

H-Reach: 951.00mm

Repeatability: ±0.0800mm

Robot Mass: 135.00kg

Structure: Articulated

Mounting: Floor, Inverted, Angle, Wall


Robot Motion Speed:

J1 200 °/s (3.49 rad/s)

J2 200 °/s (3.49 rad/s)

J3 260 °/s (4.54 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 720 °/s (12.57 rad/s)


Robot Motion Range

J1 ±170°

J2 +160° - 90°

J3 +170° - 140°

J4 ±190°

J5 ±140°

J6 ±360°


EQUIPPED WITH:

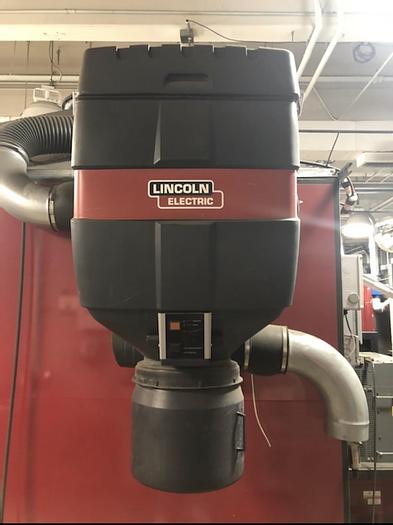

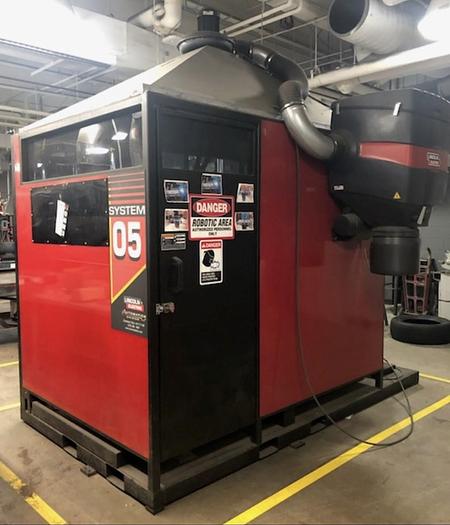

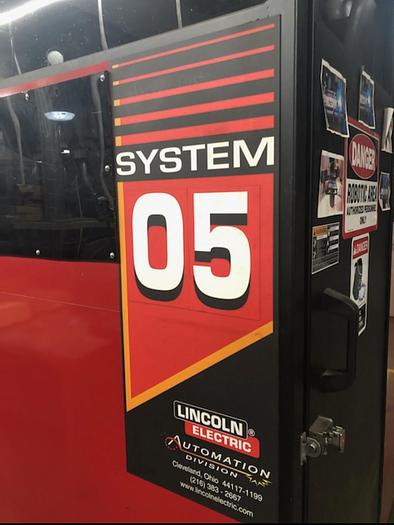

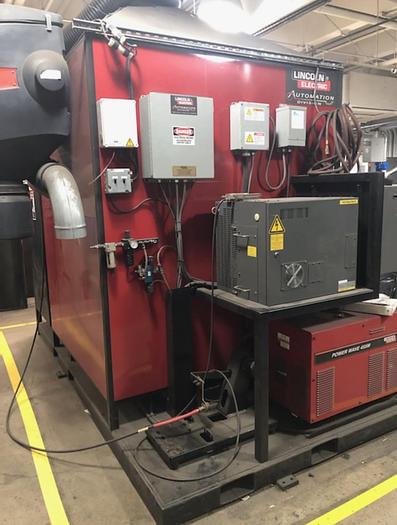

LINCOLN ENCLOSURE SYSTEM O5 WITH HOOD AND VACUMN SYSTEM

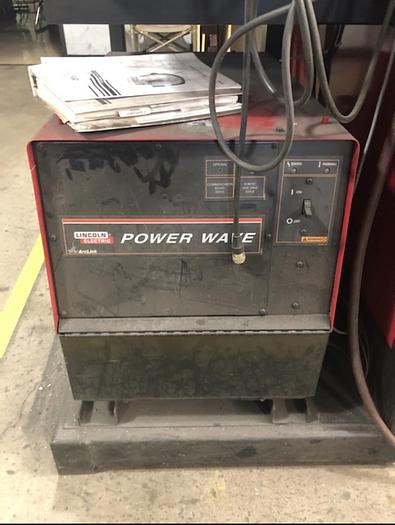

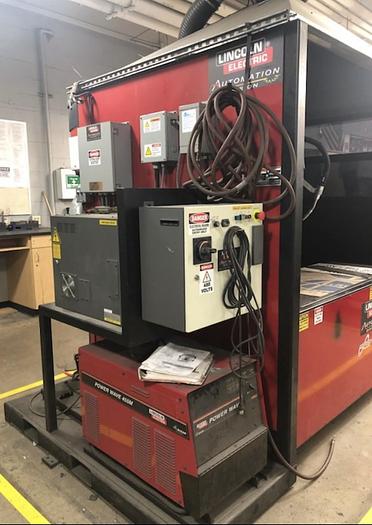

LINCOLN POWER WAVE 455M WELDING POWER SUPPLY

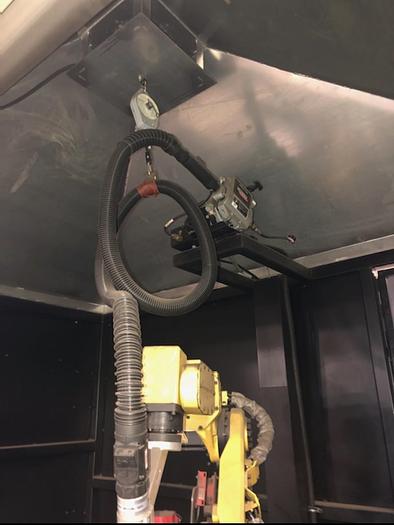

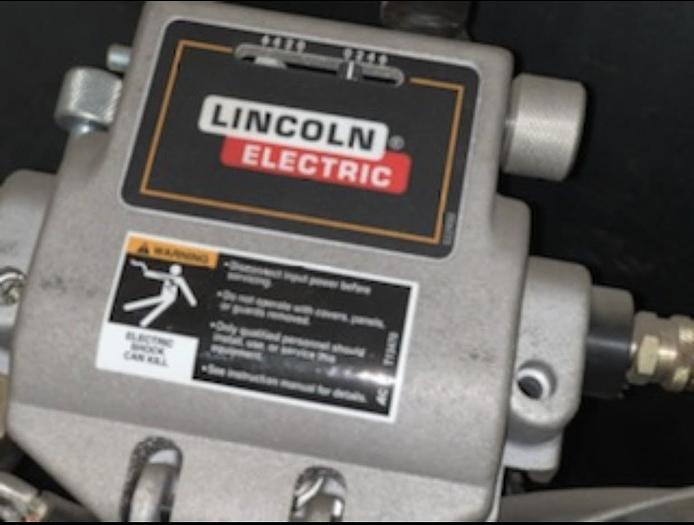

LINCOLN ELECTRIC WIRE FEEDER

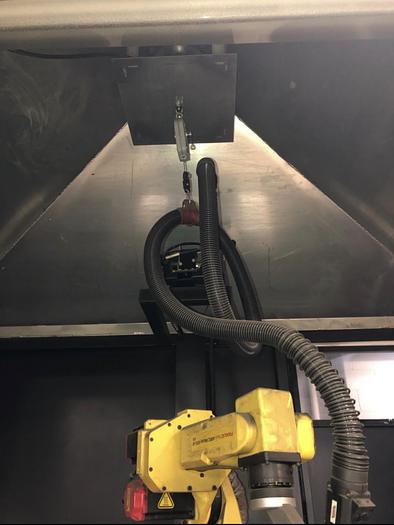

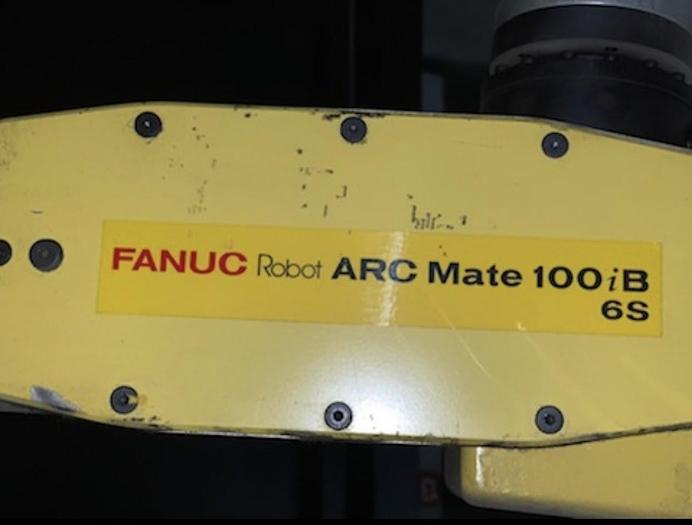

FANUC ARCMATE 100iB/6S MIG WELDING ROBOT

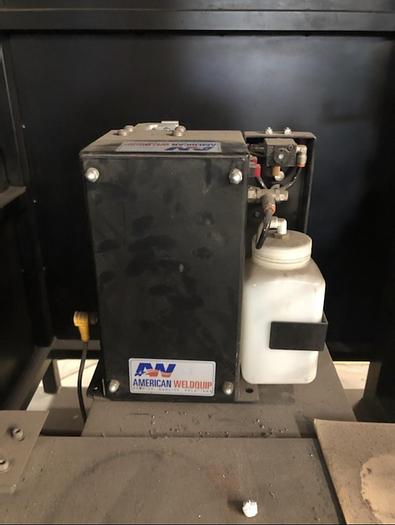

TORCH TIP CLEANER

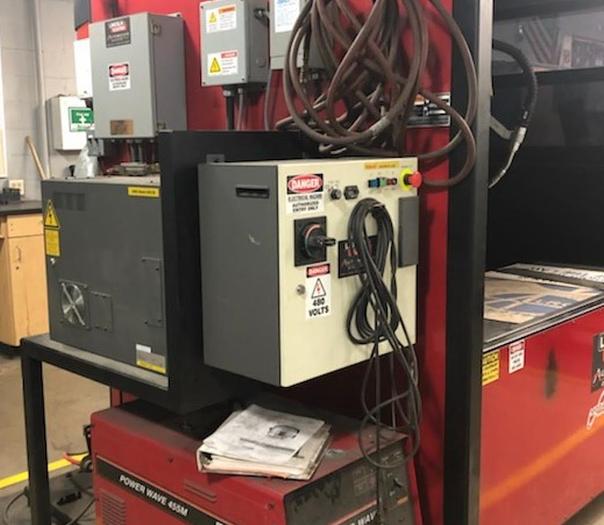

FANUC R30iA ROBOT CONTROLLER

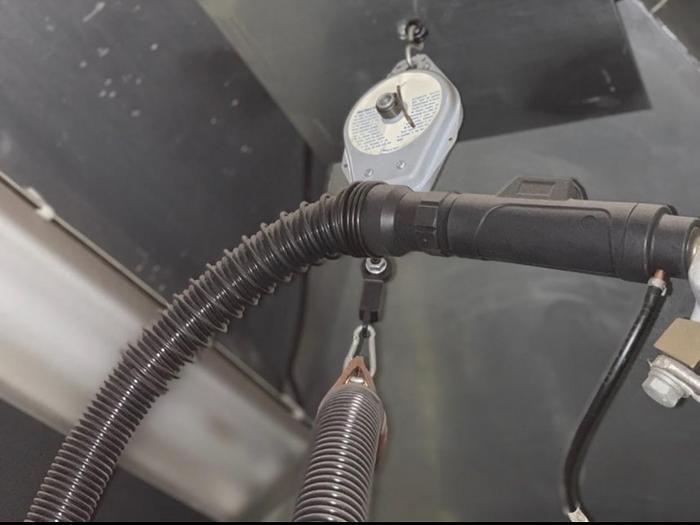

WELDING TORCH

ALL CABLEING

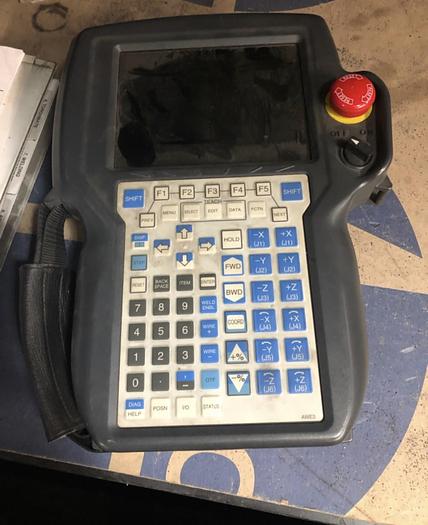

TEACH PENDANT

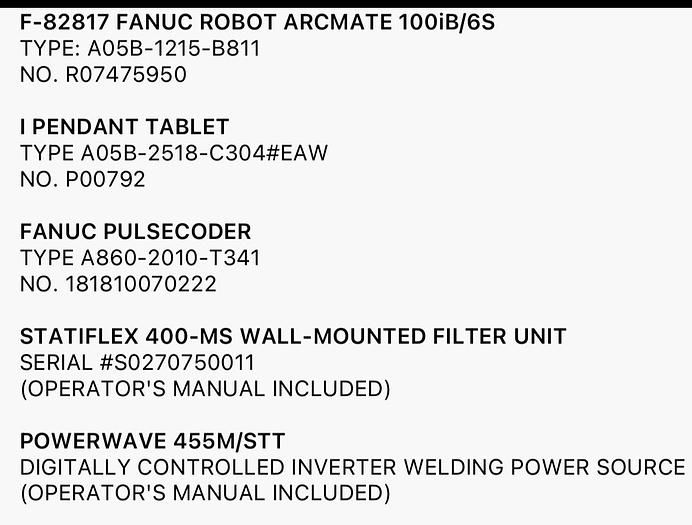

THIS CELL CONSISTED OF THE FOLLOWING WHEN IT WAS NEW.

FOB TRUCK, IMLAY CITY, MI 48444 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelFANUC ARCMATE 100iB/6S
Year2007
ConditionUsed
Serial NumberF82817
Stock Number104183
