DMG MORI NLX 2500/700 2 AXIS CNC LATHE WITH CHIP BLASTER AND CONVEYOR

1-USED DMG MORI NLX 2500/700 2 AXIS CNC LATHE WITH CHIP BLASTER

SN NL255151211

DATE OF MFG. 2015

STK#105290

===============================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

SURPLUS TO ONGOING OPERATIONS OF MANUFACTURING COMPANY

7 UNITS AVAILABLE

Features:

Mori Seiki MSX-853IV CNC Control

Cutting Time ?

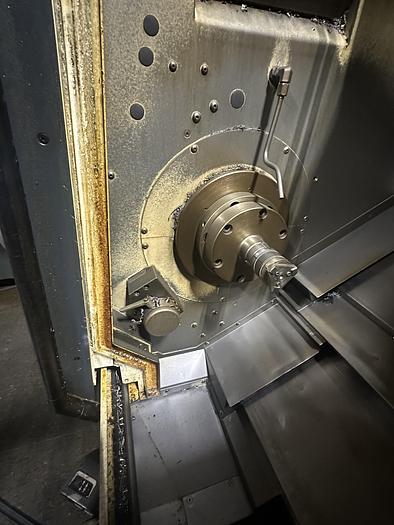

Collet Hydraulic Chuck

10 Station High Speed Turret

25 HP Spindle Power

PCMCIA Card Slot

Rigid Tapping

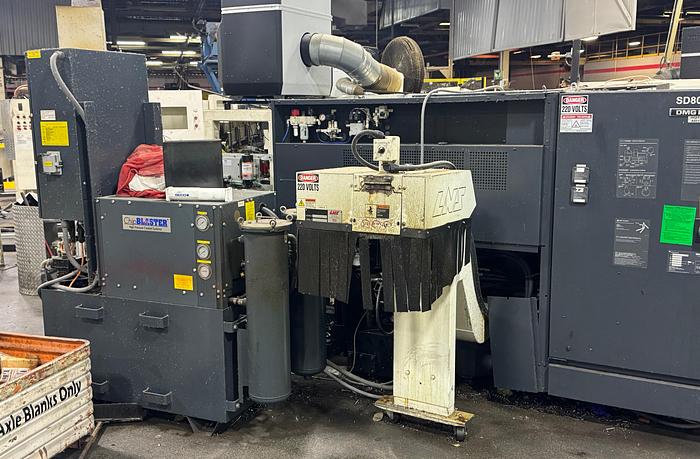

Coolant System Chip Blaster

Capacity:

Max Turning Diameter: 14.4″

Max Turning Length: 27.7″

Max Bar Capacity: 3.1″

Swing Over Bed: 23.2″

Distance Between Centers: 31.5″

Travels:

X Axis Travel: 10.2″

Z Axis Travel: 31.2″

Rapid Traverse X Axis: 1181 IPM

Rapid Traverse Z Axis: 1181 IPM

Spindle: Spindle Nose: A2-8

Spindle Bore: 3.5″

Spindle Speed: 4000 RPM

Spindle Motor: 25 HP

Turret:

Turret Capacity: 12 Stations

Turret Index Time: 0.5 Second

Tool Holders Type: BMT

Tailstock:

Tailstock Body Travel: 25.5″

Tailstock Quill Dia.: 3.34″

Tailstock Quill Stroke: 3.1″

Tailstock Taper: MT-4

General: Power Source: AC 220 V, Three Phase, 60 Hz Power Requirement: 26 kva

Overall Dimensions: 103″ x 75 ″ x 72″ High

Weight : 9,900 lbs Approx.

EQUIPPED WITH:

Programmable Tailstock

Chip Conveyor

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
