FANUC R-2000iC/270F 6 AXIS ROBOT WITH R-30iB PLUS CONTROLLER

1-USED FANUC R-2000iC/270F 6 AXIS ROBOT WITH R-30iB PLUS CONTROLLER

SERIAL NUMBER F218787

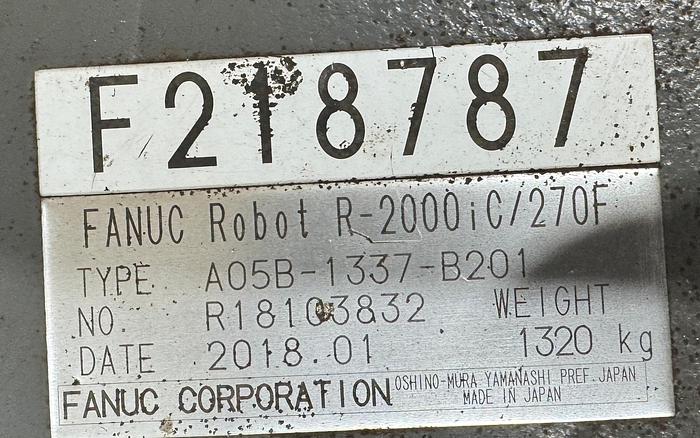

MECHANICAL ARM TYPE A05B-1337-B201

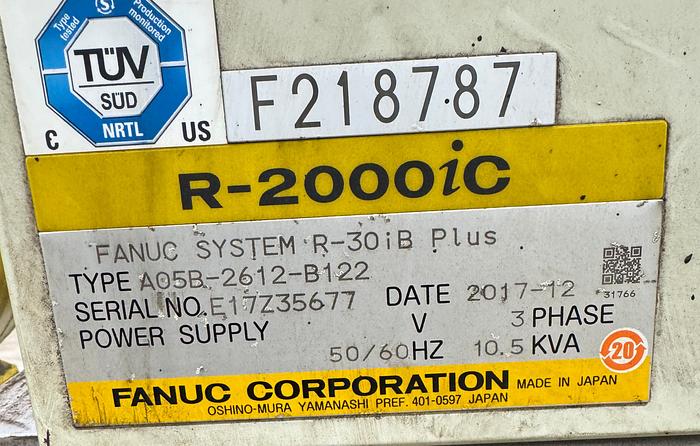

CONTROL TYPE A05B-2612-B122

DATE OF MFG. 01/2018

STK#105232

======================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

The FANUC R-2000iC/270F industrial robot follows on from the FANUC 2000iB/250F, adding an additional 20 kgs of payload and 455 mm of reach to the package. This makes it by far the strongest robot in the R-2000 range. Sitting within a relatively small footprint, its design makes best use of space in crowded factory environments. On spot welding applications, its strength, compactness and speed come to the forefront. It will, however, also handle a wide range of additional manufacturing and palletizing processes. The robot runs on the Fanuc R-30iB Control Platform

Primary Robot Applications:

Spot Welding Robots, Material Handling Robots, Palletizing Robots, Welding Robots

ROBOT SPECIFICATIONS:

PAYLOAD 270 kg

REACH 2655 mm

AXES 6

REPEATABILITY 0.3 mm

MASS 1320 kg

STRUCTURE Articulated

MOUNTING Floor

ROBOT MOTION SPEED:

J1 105 °/s (1.83 rad/s)

J2 90 °/s (1.57 rad/s)

J3 85 °/s (1.48 rad/s)

J4 120 °/s (2.09 rad/s)

J5 120 °/s (2.09 rad/s)

J6 200 °/s (3.49 rad/s)

ROBOT MOTION RANGE:

J1 ±370°

J2 ±136°

J3 ±312°

J4 ±720°

J5 ±250°

J6 ±720°

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
