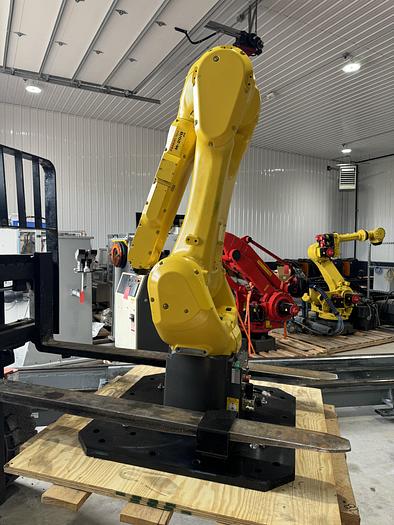

FANUC M-20iB/25 6 AXIS ROBOT WITH R-30iB PLUS CONTROLLER

1-USED FANUC M-20iB/25 6 AXIS ROBOT WITH R-30iB PLUS CONTROLLER,

LIKE NEW APPROXIMATELY 200 RUN HOURS ON UNIT.

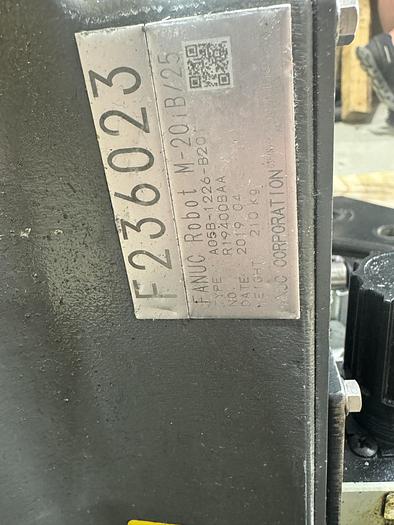

SN F236023

DATE OF MFG. 04/2019

MECHANICAL UNIT PART NUMBER A05B-1226-B201

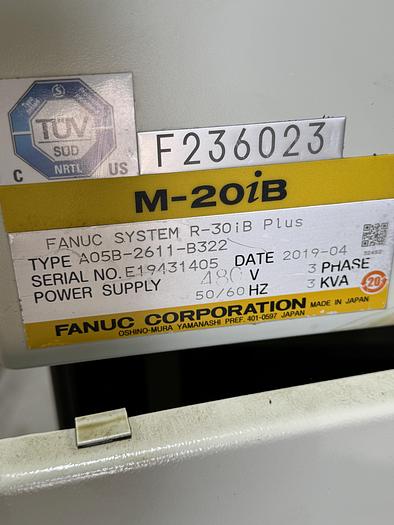

CONTROL UNIT PART NUMBER A05B-2611-B322

STK#105203

===========================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

The FANUC M-20iB/25 is a smaller robot with a payload of 25kg. This advanced M20iB/25 has an advanced design, combining a lightweight hollow upper arm and wrist, with the cables that run inside the arm. The Fanuc M-20iB/25 runs on the R30iB Controller.

Robot Specifications:

Axes: 6

Payload: 25kg

H-Reach: 1853mm

Repeatability: ±0.05mm

Robot Mass: 250kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 205 °/s (3.58 rad/s)

J2 205 °/s (3.58 rad/s)

J3 260 °/s (4.54 rad/s)

J4 415 °/s (7.24 rad/s)

J5 415 °/s (7.24 rad/s)

J6 880 °/s (15.36 rad/s)

Robot Motion Range:

J1 +340° - 360°

J2 ±240°

J3 ±303°

J4 ±400°

J5 ±290°

J6 ±540°

Applications:

Material Handling Robots

Pick and Place Robots

Machine Tending Robots

Machine Loading Robots

Material Removal Robots

Deburring Robots

Waterjet Robots

EQUIPPED WITH:

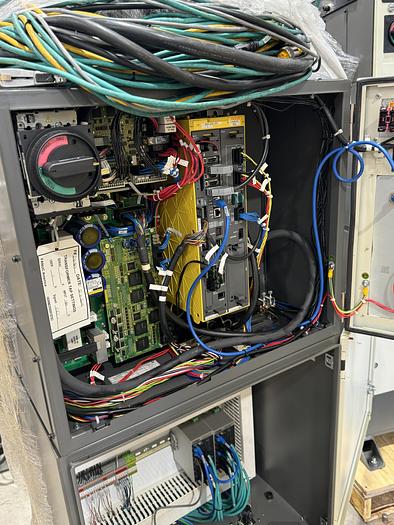

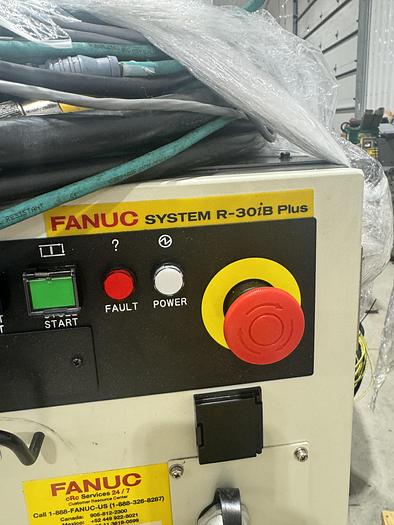

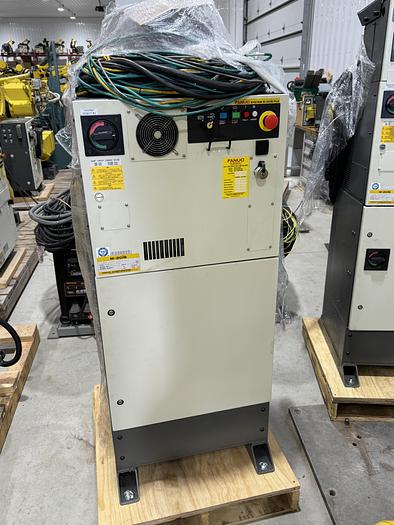

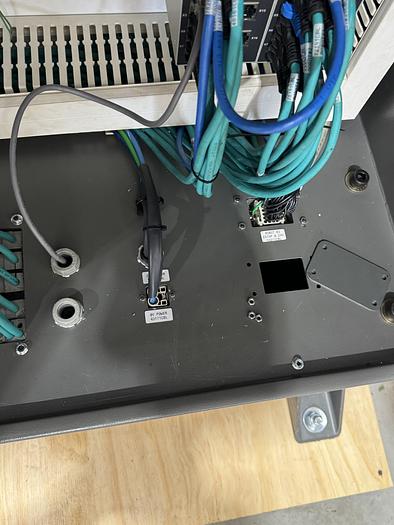

FANUC R-30iB ROBOT CONTROLLER

FANUC ROBOT CONNECTION CABLES

FANUC COLOR I-TEACH PENDANT

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.

CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
