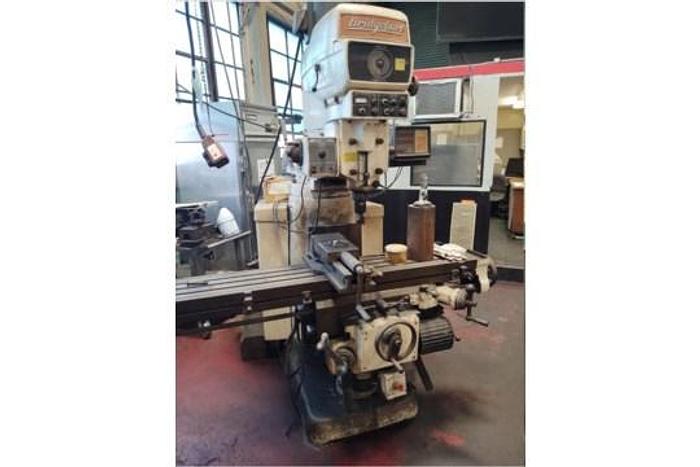

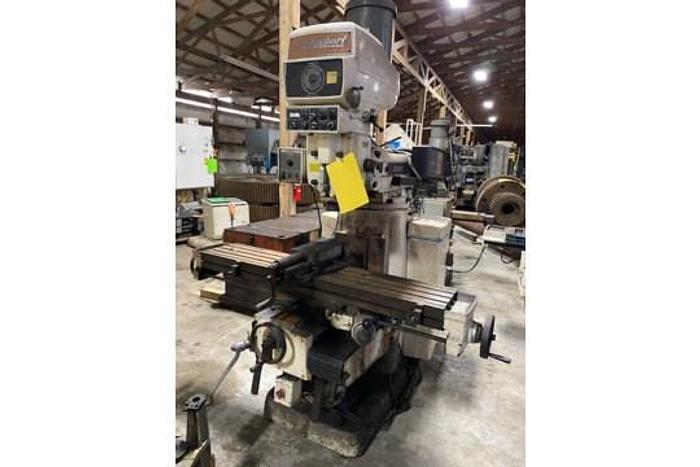

BRIDGEPRT SERIES II 5 HP VERTICAL MILLING MACHINE

1-USED BRIDGEPORT SERIES II 5HP VERTICAL MILLING MACHINE

SERIAL NUMBER

STK#104101

===============================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE

ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

Table Size...11" X 58"

Spindle Taper...# 40

Spindle Speeds Variable...50 To 3,500 Rpm's

Spindle Feeds....0 To .240 IPM

Spindle Quill Travel...5"

Spindle Tilt...+/- 45 Degrees

Spindle Swivel...+/- 45 Degrees

Spindle To Table Min / Max...6-3/4" / 18-3/4"

Saddle Travel In & Out...16"

Table Travel Cross...30"

Knee Travel...16"

Table / Knee Feeds....075 To .150 I.P.R.

Main Motor....4 Hp. 240 Volts

Weight....6,500 Lbs.

Floor Space Left To Right / Front To Back ...74" X 74"

Machine Height...100"

Chrome Knee...Yes

Power Tool Lock....Yes

FOB TRUCK, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE

AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS.

RAB INDUSTRIES, INC.
