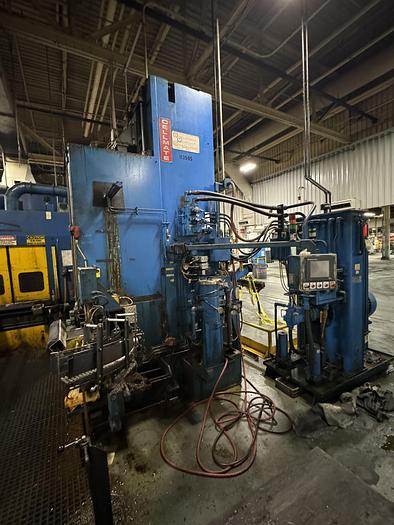

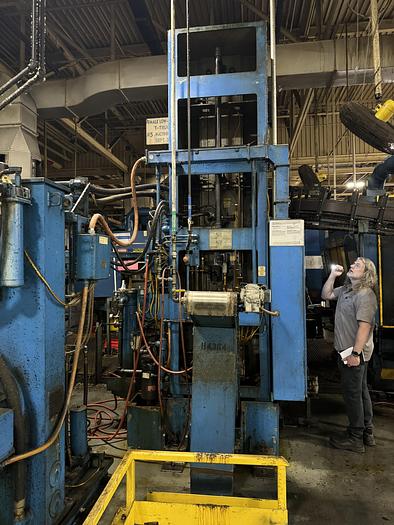

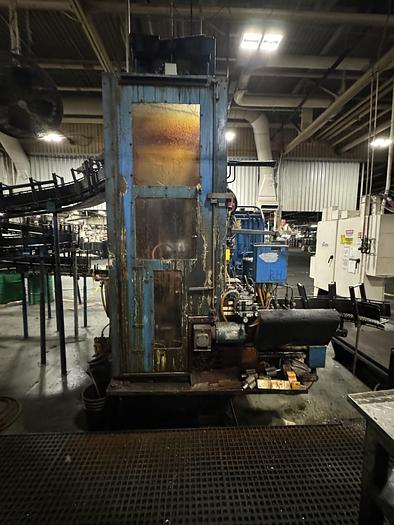

BMS CELLMATE BMCM15-48 VERTICAL TABLE UP DUAL STATION BROACHING MACHINE
![Used BMS CELLMATE BMCM15-48 VERTICAL TABLE UP DUAL STATION BROACHING MACHINE](https://i.machineryhost.com/eecca5b6365d9607ee5a9d336962c534/2e53024bb12dc5dbb8041760d6cdf5aa/large-used-bms-cellmate-bmcm-15-48-vertical-table-up-dual-station-broaching-machine.jpg)
BMS CELLMATE BMCM15-48 VERTICAL TABLE UP DUAL STATION BROACHING MACHINE
$19,500 (USD)
Location:Saginaw, MI
Available quantity:1
Description
1-USED BMS CELLMATE 15 TON X 48" STROKE VERTICAL TABLE UP BROACHING MACHINE
MODEL BMCM15-48 DUAL STATION
SERIAL NUMBER 1164-98
DATE OF MFG. 1998
STK#105179
==============================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:
MODEL BMCM15-48
CAPACITY 15 TONS
STROKE 48"
PULLING CAPACITY 30,000 LBS
MAX CUTTING SPEED 30 FPM
MAX RETURN SPEED 60FPM
COOLANT RESIVOIR CAPACITY 175 GALLONS
OIL RESIVOIR CAPACITY 200 GALLONS
MAIN MOTOR HP 40
APPROX. FLOOR SPACE 118" X 72"
APPROX HEIGHT 164"
APPROX WEIGHT 32,000 LBS
EQUIPPED WITH:
DUAL STATION
CHIP CONVEYOR
COOLANT SYSTEM
AUTO LOADER

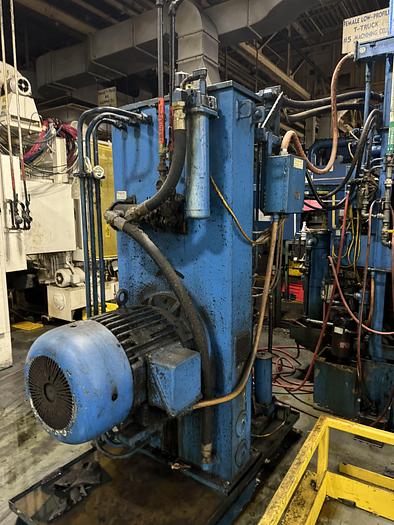

EXTERNAL HYDRAULIC UNIT JLC CONTROLS PANEL
OPERATORS STATION THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
Specifications
Manufacturer | BMS |
Model | BMCM15-54 |
Year | 1998 |
Condition | Used |
Serial Number | 1164-98 |
Stock Number | 105179 |
