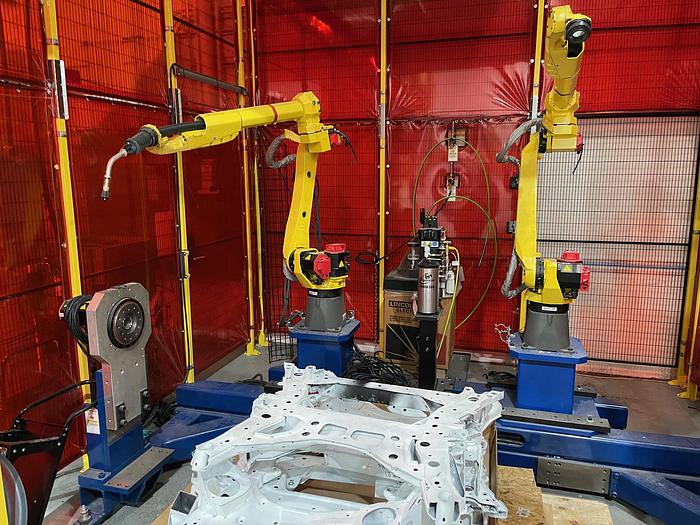

NEVER USED FANUC ARCMATE 100iC/8L DUAL ARM WELDING CELL WITH TRUNNION

1- NEVER USED DUAL ARM ARCMATE 100iC/8L ROBOTIC

WELDING CELL WITH R30iB CONTROLLERS, ENCLOSURE,

HEADSTOCK/TAIL STOCK, ROBOVENT HOOD

SERIAL NUMBERS: F193843;F193844

DATE OF MFG. 2016

STK#105170

=========================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

EQUIPPED WITH:

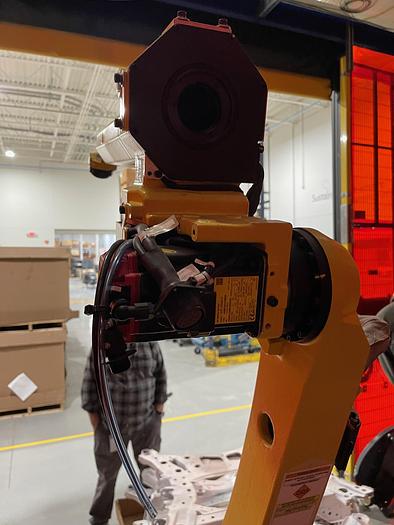

(2) FANUC ARCMATE 100iC/8L ROBOTS

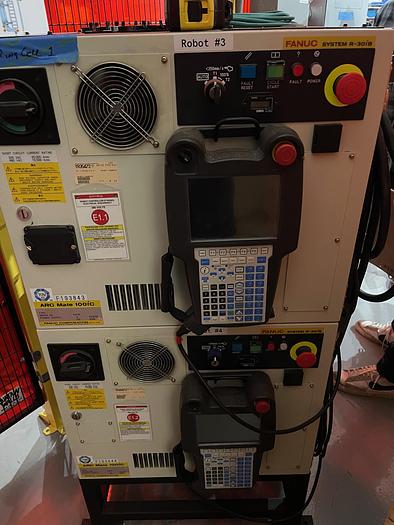

(2) FANUC R30iB CONTROLLERS

TEACH PENDANTS

CABLES

(1) TREGASKISS TORCH TIP CLEANER

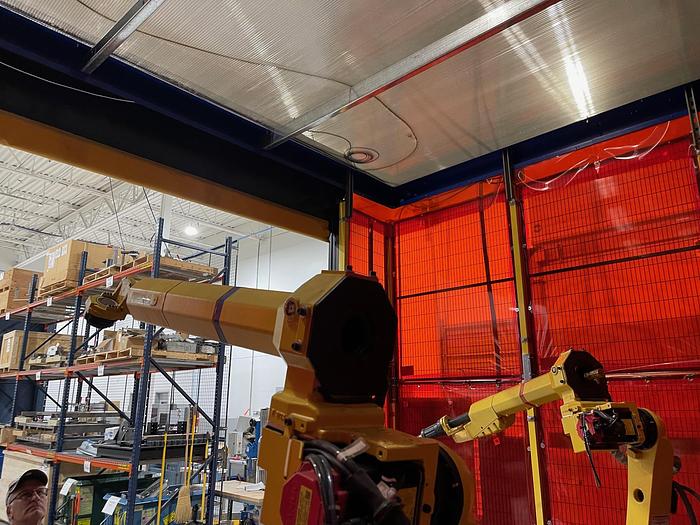

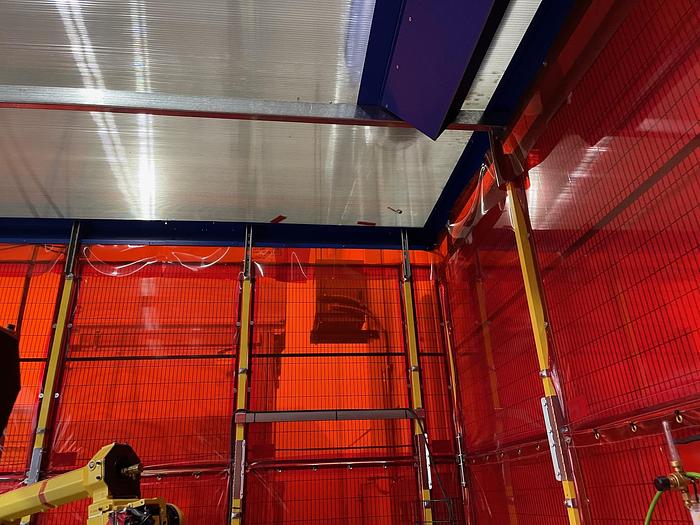

ENCLOSURE WITH LIGHT CURTAINS

ROBOVENT HOOD

FANUC SERVO DRIVEN HEADSTOCK W/ TAILSTOCK

DEFENDER MACHINE GUARD PANEL W/ OPEN/CLOSE/STOP/EMERGENCY STOP BUTTON

(1) MIG WELDING TORCH MOUNTED ON 1 ROBOT

NO WELDING POWER SUPPLIES OR WIRE FEEDERS

ARE INCLUDED WITH THE CELL. THIS CELL BUILD WAS

NEARLY FINISHED BEFORE THE BUILD WAS CANCELLED.

TRUNNION SPECS:

MOTOR BRAND: FANUC

SWING: 78"

DISTANCE BETWEEN CENTERS: 106"

CELL INFORMATION:

OVERALL DIMENSIONS: APPROX 10' X 12' X 10' TALL

ROBOT MOUNTING AREA HEIGHT: 15" TALL

Robot Specifications

Axes: 6

Payload: 8kg

H-Reach: 2028mm

Repeatability: ±0.08mm

Robot Mass: 150kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed

J1 200 °/s

J2 200 °/s

J3 210 °/s

J4 430 °/s

J5 430 °/s

J6 630 °/s

Robot Motion Range

J1 ±360°

J2 ±255°

J3 ±462°

J4 ±400°

J5 ±360°

J6 ±900°

Applications

• Arc Welding Robots
• MIG Welding Robots
• Plasma Cutting Robots
• Plasma Welding Robots
• TIG Welding Robots

FOB TRUCK, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND

BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS

AND CONDITIONS.

RAB INDUSTRIES, INC.
