TENNESMITH MODEL A3616 PNEUMATIC 16 GAUGE X 36" SHEAR

TENNESMITH MODEL A3616 PNEUMATIC 16 GAUGE X 36" SHEAR

$4,000 (USD)

Location:Imlay City, MI

Available quantity:1

orCall 586-752-0090 Extension 1 for Sales

Description

1- USED TENNESMITH MODEL A3616 PNEUMATIC 16 GAUGE X 36" SHEAR

STOCK NUMBER: 105163

===================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

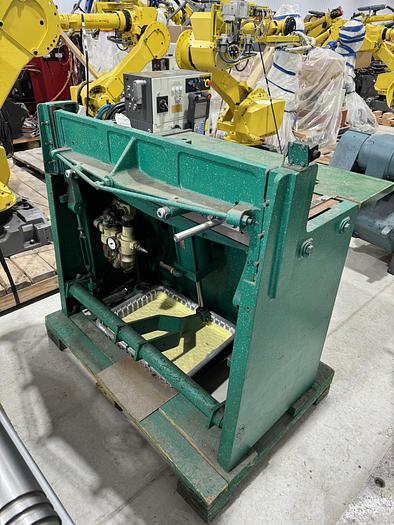

3′ x 16ga New Tennsmith Pneumatic Shear Model 36A power shears are a productive addition to any shop. The air shears utilize heavy-duty, tie rod-type pneumatic cylinders, which provide up to 40 strokes per minute in capacity materials.

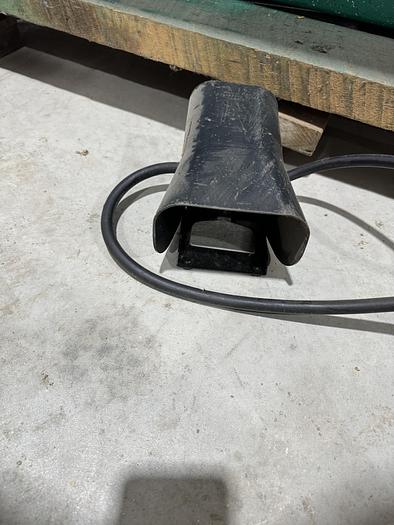

A foot-operated air valve control, pressure regulator, air gauge, oiler/condenser cups and neoprene, padded holddown feet are standard features. We recommend a maximum air supply of 75 psi for operating these shears at rated capacity. Where air supply pressures exceed 75 psi, an in-line regulator is helpful to provide pressure control.


3′ x 16ga Tennsmith Pneumatic Shear Model 36A Specifications:

Max. Shearing Capacity (Mild Steel) 16 gauge 1.6mm

Max. Shearing Capacity (Stainless Steel) 20 gauge 1.0mm

Maximum Cutting Length 37 in 940 mm

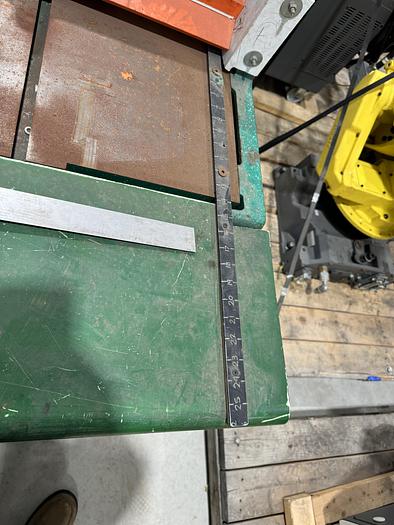

Back Gauge Range 30 in 762 mm

Front Gauge Range 37 in 940 mm

Strokes Per Minute Full Length 40

Maximum Operating Pressure 75 psi. 1 atmos.

Air Consumption Per Stroke 1.1 cu ft. 0.031 cu.m.

Motor 3 HP 230/460V 3 Phase 60 Hz, 1745 rpm

Dimension 46-1/2 x 24 x 42 in.  THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerTENNESMITH
ModelA3616
ConditionUsed
Stock Number105163
