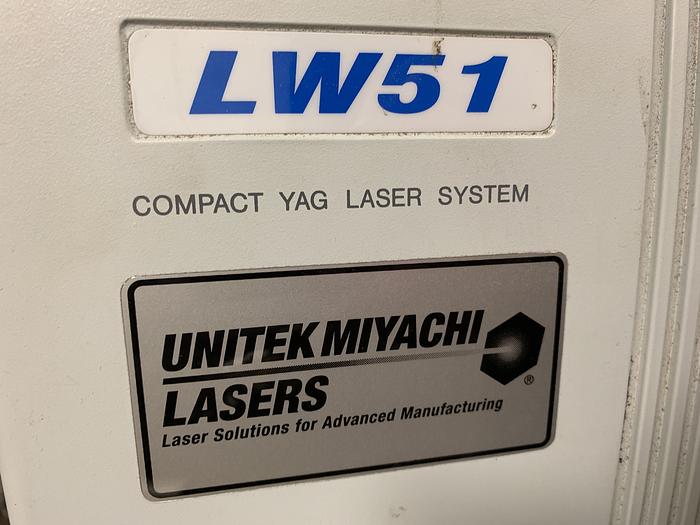

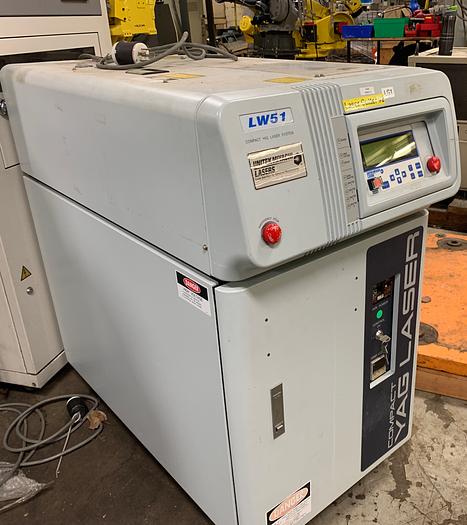

MIYACHI UNITEK LW51 COMPACT YAG LASER

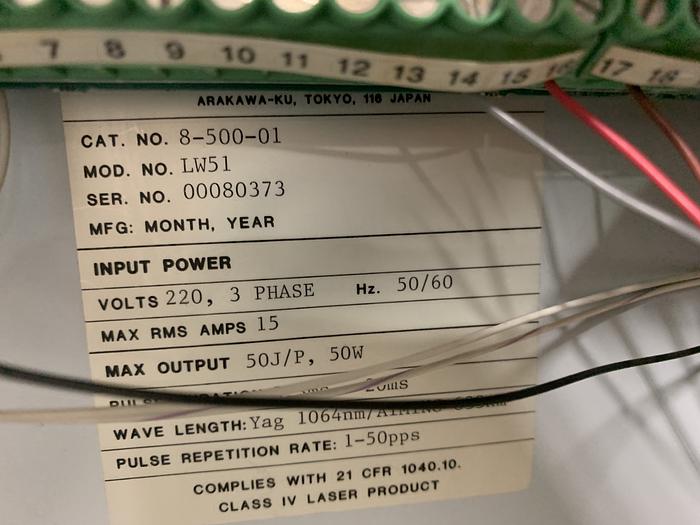

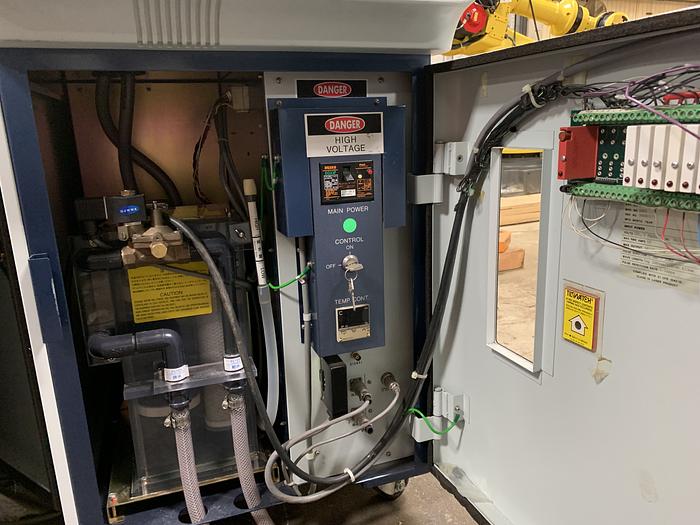

1-USED MIYACHI UNITEK LW51 COMPACT YAG LASER MACHINE SERIAL NUMBER 00080373 CATALOG NUMBER 8-500-01 APPROX. DATE OF MFG. 2005 STK#103577 ================================================= SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: Power: 200/220VAC Tap Selectable, 3-Phase, 50/60Hz, 15 Amps Max (Wired for 60Hz 220V) Max Output: 50 Joules / 50 Watts Pulse Duration: 0.3-20.0ms Pulse Repetition Rate: 1-50 pps Bead Diameter: 8mm Set Voltage: 150-510VDC Wavelength: 1064nm YAG, 633nm NeHe Laser Class: IV Software Versions: Laser Unit: V1-17E Program Unit: V3-05A Cooling Method: Heat Exchanger Cooling Medium: Water, D.I. or Steam Distilled, 2 Gallons Required Chilled Water: ?Pressure: 1-3Bar Flow Rate: 8 L/Min Temperature: 5-25°C Inner Hose Dia.: 15mm Dimensions: 41" H x 22" W x 42" D Features: 4 Swivel Casters w/ Leg Levelers. Local Control w/ MLE-103B Controller w/ 10ft Cable. External Operation Through I/O and RS-485 Connections. Weight: 555lbs (w/ coolant) FOB TRUCK, ALMONT, MI 48003 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. (586)752-0090 WWW.RABINDUSTRIES.COM
