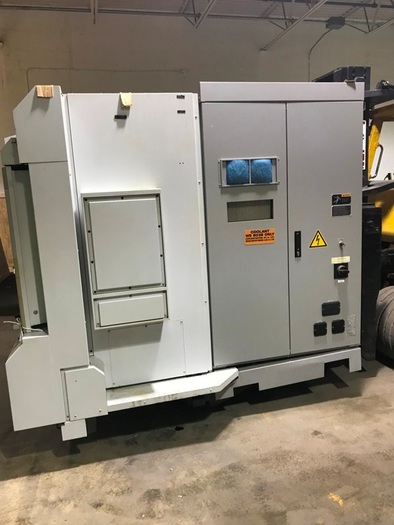

MORI SEIKI NT1000SZ MULTI AXIS TURNING/MILLING CENTER
Sold
MORI SEIKI NT1000SZ MULTI AXIS TURNING/MILLING CENTER
$139,500 (USD)
Location:Almont, MI
Description
CAPACITY:
.MAX WORKPIECE DIAMETER 14.57"
.SWING OVER CROSS SLIDE 14.57"
.MAXIMUM DISTANCE BETWEEN SPINDLE NOSES 35"
.BW-AXIS MAX. SWING 35.04"
.MAXIMUM TURNING DIAMETER TOOL SPINDLE 14.57"/TURRET 10.63"
.MAXIMUM TURNING LENGTH 16.69"
.BAR WORK CAPACITY 2.05" OR 2.56" DEPENDING ON CHUCK CYLINDER TYPE
TRAVEL:
.X1-AXIS TOOL SPINDLE 14.96"
.Y AXIS TOOL SPINDLE 4.13"
.Z1 AXIS TOOL SPINDLE 18.11" + 6.1" ATC TRAVEL
.B AXIS TOOL SPINDLE +/- 120 DEGREES
.X2 AXIS TURRET 2 6.10"
.Z2 AXIS TURRET 2 24.01"
.BW AXIS 0 DEGREES PROCESS/-25 DEGREES PROCESS/-90 DEGREES RETRACT/
-180 DEGREES LS LOADER/-225 DEGREES WORKPIECE CONVEYOR
SPINDLE 1:
.SPINDLE SPEED 6,000 RPM
.NUMBER OF SPINDLE SPEED RANGES 2 STEP WOUND ROTOR
.SPINDLE NOSE JIS A2-5
.THROUGH SPINDLE HOLE DIAMETER 2.4"
.MINIMUM SPIDNLE INDEXING ANGLE 0.0001 DEGREES
.SPINDLE BEARING INSIDE DIAMTER 3.94"
.SPINDLE TORQUE 40%ED/30MIN/CONT N.M 223/172/158
SPINDLE 2:
.SPINDLE SPEED 6,000 RPM
.NUMBER OF SPINDLE SPEED RANGES 1
.
Specifications
Manufacturer | MORI SEIKI |
Condition | Used |
Stock Number | 103526 |
