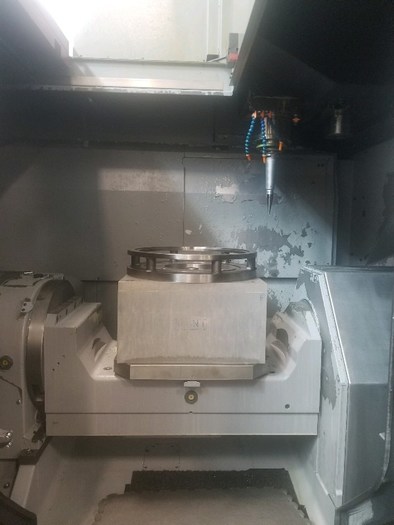

OKK VC-X500 FULL 5 AXIS CNC VERTICAL MACHINING CENTER
Sold
OKK VC-X500 FULL 5 AXIS CNC VERTICAL MACHINING CENTER
Location:Almont, MI
Description
X Axis Travel 700mm (27.56")
Y Axis Travel 850mm (33.46")
Z Axis Travel 610mm (24.02")
A Axis Travel -120 to +30 degrees
C Axis Travel 360 degrees
Rapid Tranverse Rate XY: 48m/min-1 (1889ipm), Z: 32m/min (1259ipm)
Spindle Speeds 20,000 min-1 (OP: 12,000)
Spindle Motor 30/25HP
Magazine Capacity 60 (OP: 120)
Table Size 500mm (19.69") Square
Spindle Taper No. 40
Controller Type FANUC31iB5
Max. Work Dia/Height 700mm (27.6") / 500mm (19.7")
Max. Weight Loadable on Table 500kg (1102 lbs)
NEW COST ON THIS MACHINE WAS $450,000 IN 2014
Specifications
Manufacturer | OKK |
Year | 2014 |
Condition | Used |
Stock Number | 103645 |
