FANUC ARCMATE 120i 6 AXIS MIG WELDING ROBOT WITH LINCOLN WIRE FEEDER AND GUN

1-FANUC ARCMATE 120i 6 AXIS MIG WELDING ROBOT WITH LINCOLN WIRE & TORCH

SERIAL NUMBER F48720

DATE OF MFG. 11/2000

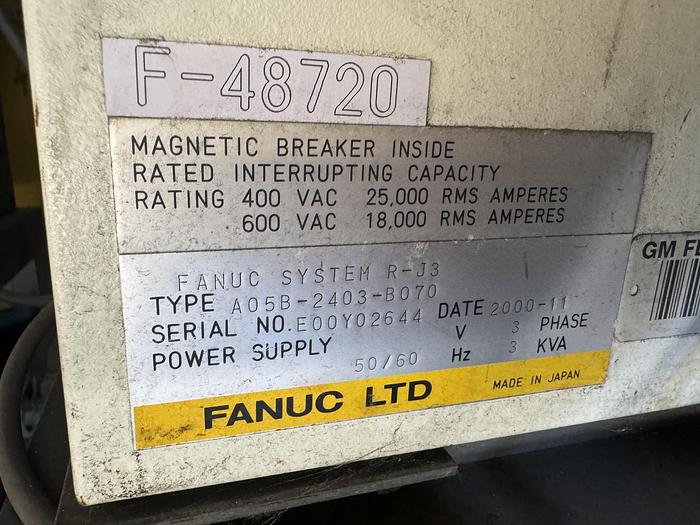

CONTROL TYPE A05B-2403-B070 (RJ3)

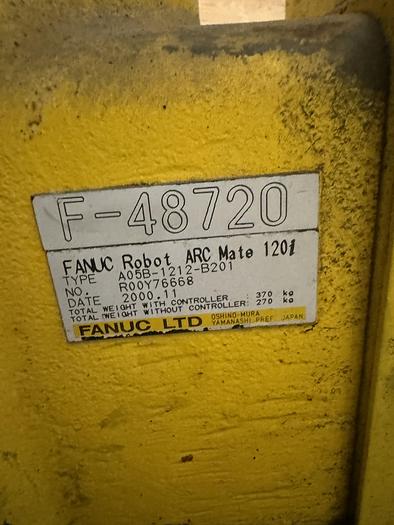

MECHANICAL UNIT TYPE A05B-1212-B201 (ARCMATE 120i)

STK#105154

===================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

This is one of Fanuc's Legacy Robots and is Compatible with RJ2 or RJ3 Controller. We try to stock some of the more popular Fanuc Legacy robots as many companies through out the country still have these robots in production. This speaks highly of the quality of Fanuc products. Its very easy for these companies

when time is of the essence to simply replace the arm or controller in the event of a break down. This allows your company to keep production up and running and provides your company the time it needs to send out the robot or controller that is need of repair for repairs.

Robot Specifications:

Axes: 6

Payload: 16kg

H-Reach: 1542mm

Repeatability: ±0.08mm

Robot Mass: 370kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 140 °/s (2.44 rad/s)

J2 140 °/s (2.44 rad/s)

J3 140 °/s (2.44 rad/s)

J4 330 °/s (5.76 rad/s)

J5 330 °/s (5.76 rad/s)

J6 450 °/s (7.85 rad/s)

Robot Motion Range

J1 ±165°

J2 +162° - 78°

J3 +275° - 180.5°

J4 ±200°

J5 ±140°

J6 ±450°

EQUIPPED WITH:

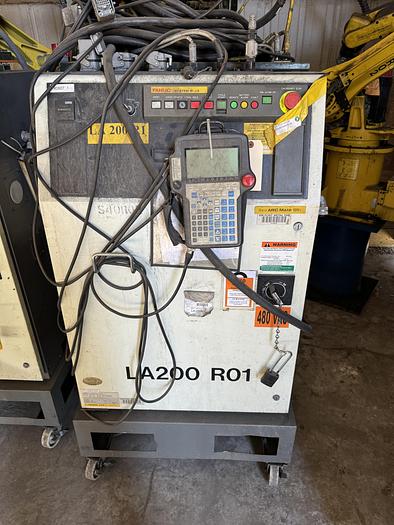

FANUC RJ3 CONTROLLER

FANUC ROBOT CONNECTION CABLES

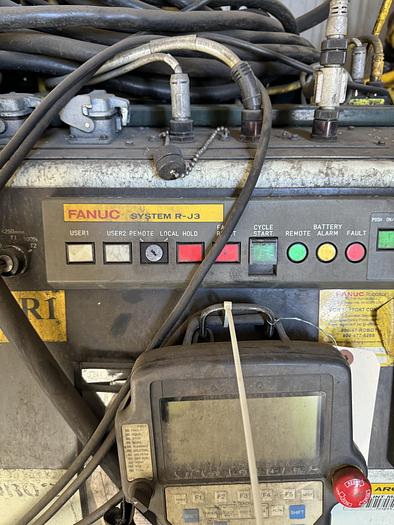

FANUC TEACH PENDANT

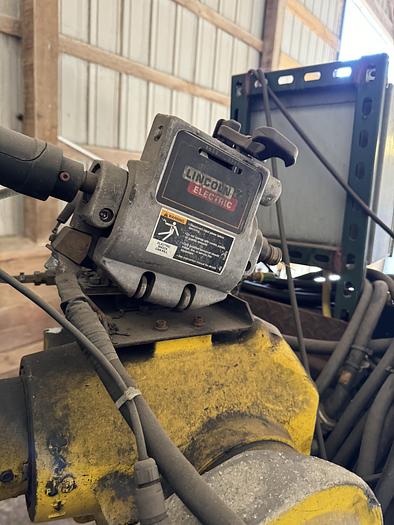

LINCOLN WIRE FEEDER

TORCH MIG WELDING GUN

Applications

MAG Welding Robots

MIG Welding Robots

Orbital Welding Robots

Plasma Welding Robots

Shielded Metal Arc Welding Robots

Submerged Arc Welding Robots

TIG Welding Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.

CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.

See Our Arc Mate Stock as well as other Robots that lend themselves to Mig Welding Applications.

FOB TRUCK, 300 EAST SECOND STREET, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
