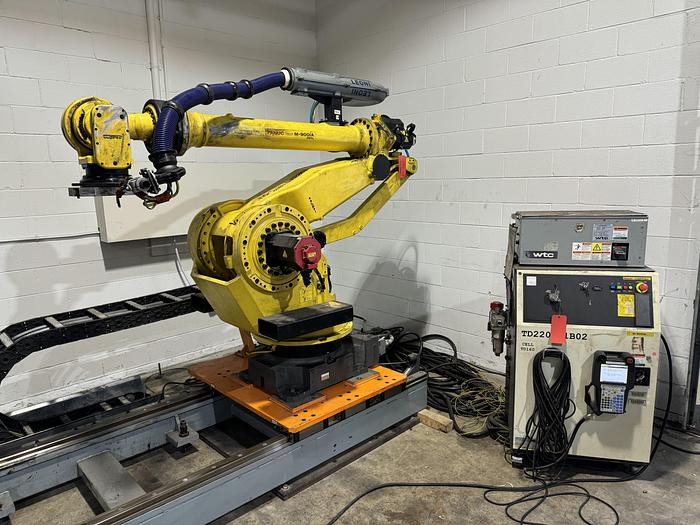

FANUC M-900iA/260L ROBOT ON 10' TRVL FANUC GEN 6 RTU WITH R-30iA CONTROLLER

1-USED FANUC M-900iA/260L ROBOT ON 10' FANUC GEN VI RTU WITH R-30iA CONTROLLER

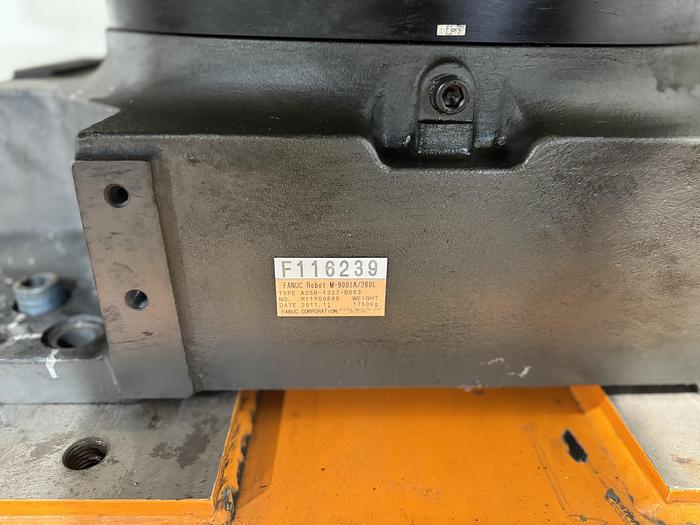

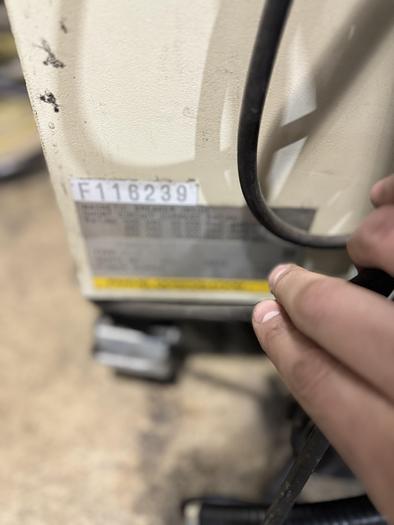

SERIAL NUMBER F116239

DATE OF MANUFACTURE 11/2011

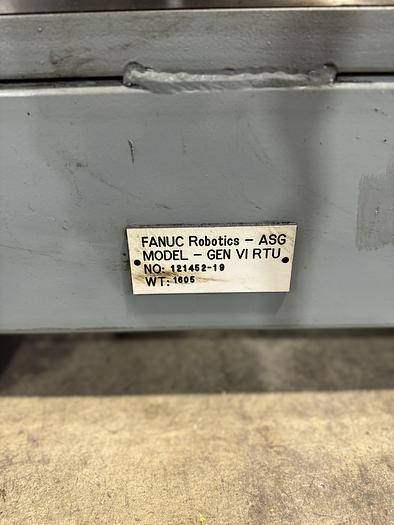

RTU GENERATION VI SERIAL NUMBER 121452-19

ROBOT TYPE A05B-1327-B503

ROBOT CONTROL TYPE WITH 7TH DRIVE FOR RTU

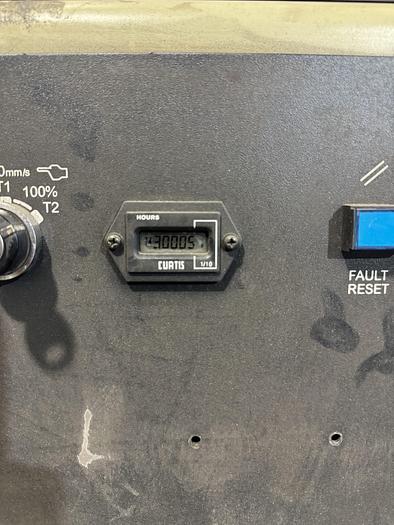

HOURS ON ROBOT METER 30,000

CLEANED & TESTED UNDER POWER RUNS GOOD

STK# 105148

===================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

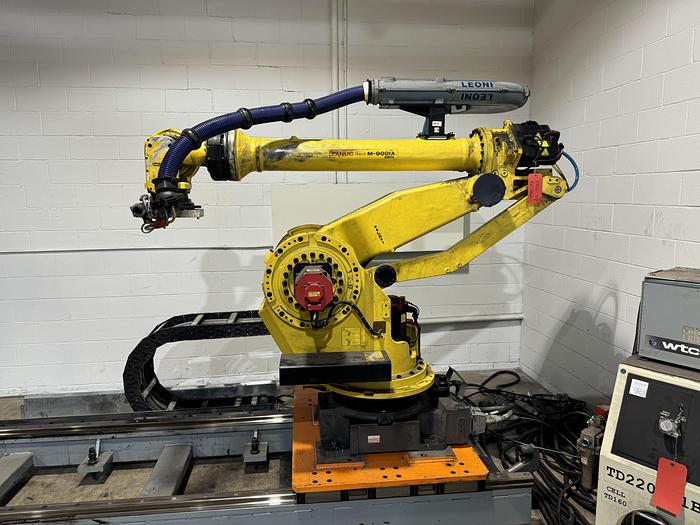

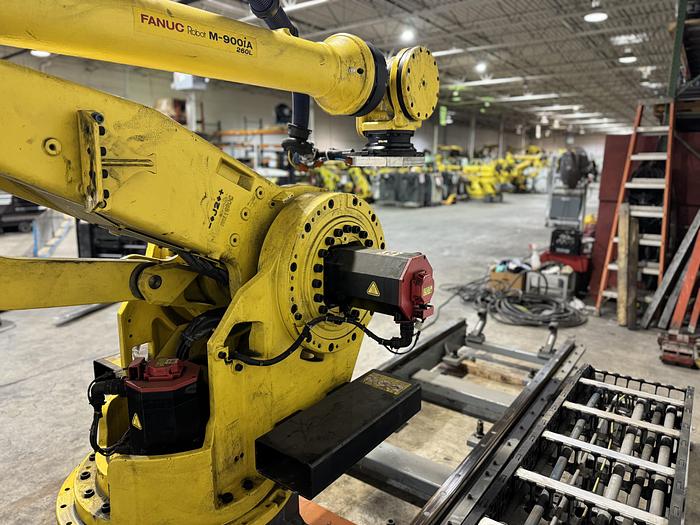

The Fanuc M-900iA/260L robot is part of the Fanuc M-Series of Robots, it is a long reach heavier payload of 260kg depending on the date of manufacture this robot will run on the Fanuc R30iA or Fanuc R30iB controller.

Robot Specifications:

Axes: 6

Payload: 260kg

H-Reach: 3100mm

Repeatability: ±0.3mm

Robot Mass: 1800kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 100 °/s (1.75 rad/s)

J2 105 °/s (1.83 rad/s)

J3 95 °/s (1.66 rad/s)

J4 120 °/s (2.09 rad/s)

J5 120 °/s (2.09 rad/s)

J6 200 °/s (3.49 rad/s)

Robot Motion Range:

J1 ±180°

J2 ±75°

J3 +90° - 121°

J4 ±360°

J5 ±125°

J6 ±360°

Applications:

Waterjet Robots

Material Handling Robots

Fiberglass Cutting Robots

Equipped with:

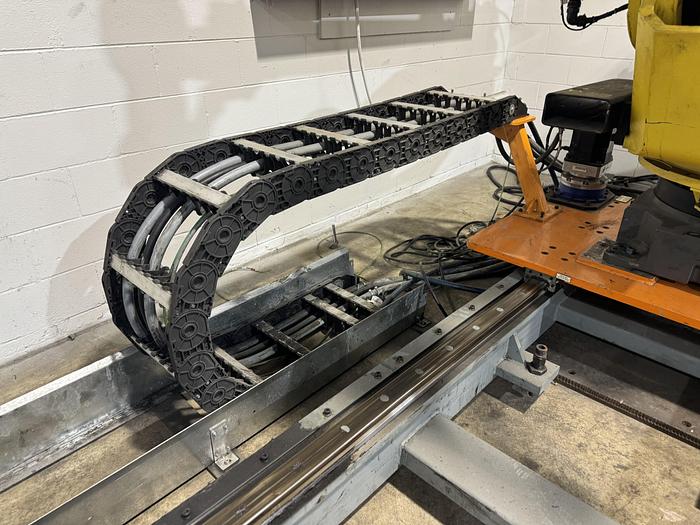

Fanuc Gen 6 10' Robot Transfer Unit

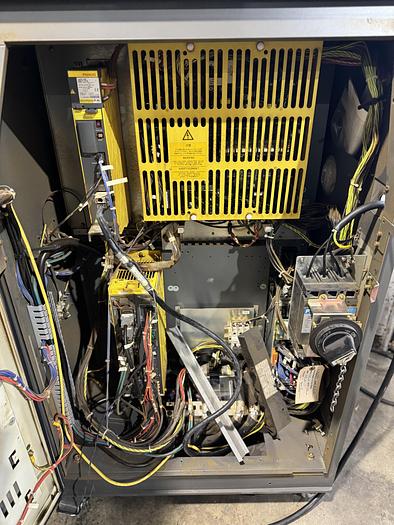

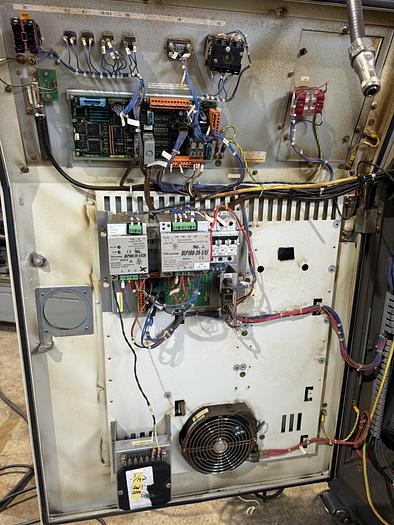

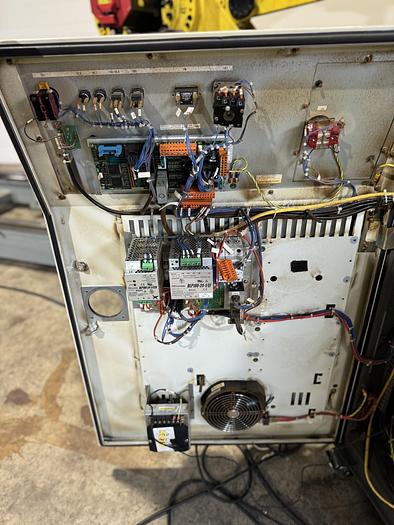

Fanuc R-30iA control with 7th Axis Drive for RTU

Fanuc Robot Connection Cables

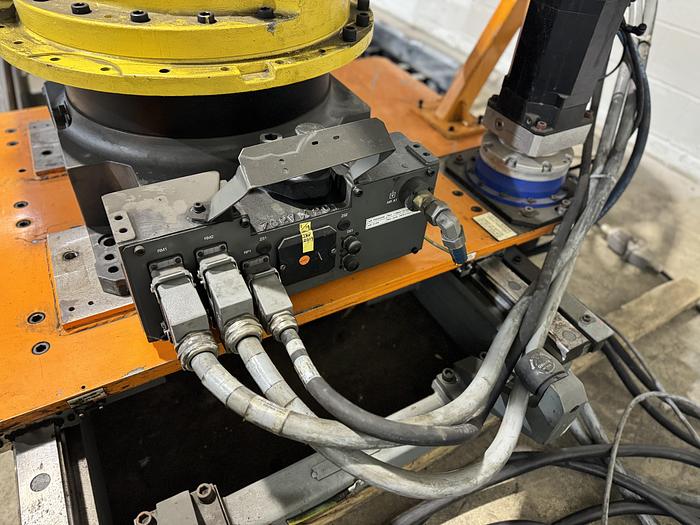

Fanuc Robot Cables for RTU

Fanuc I-Pendant

FOB Truck, IMLAY CITY, MI 48444
