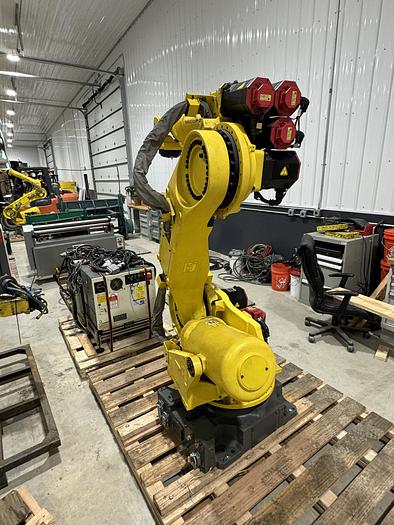

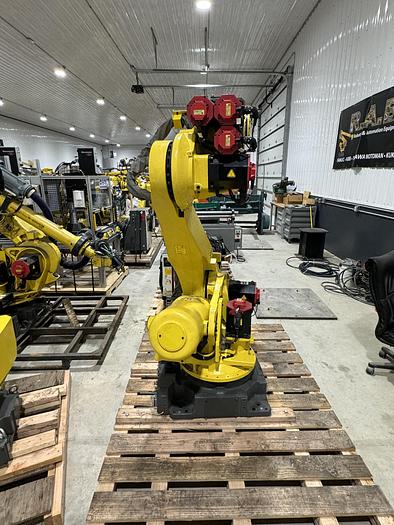

FANUC R-2000iB/210F 6 AXIS ROBOT WITH R-30iB CONTROLS

1-USED FANUC R-2000iB/210F 6 AXIS ROBOT WITH R-30iB CONTROLLER

SERIAL NUMBER F142365

DATE OF MFG. 11/2013

FANUC MECHANICAL UNIT TYPE A05B-1329-B205

FANUC R-30IB CONTROL TYPE

STK#105141

===============================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

PAYLOAD 210 KG

REACH 2655 MM

AXIS 6

APPLICATIONS: Resistance Welding Robots, Spot Welding Robots, Injection Molding Robots, Machine Loading Robots, Machine Tending Robots, Material Handling Robots, Assembly Robots, Fiberglass Cutting Robots

The Fanuc R‑2000iB/​210F is a floor-mount­ed robot with an extreme­ly high pay­load of 210kg (462lbs), 2655mm hor­i­zon­tal reach, and six degrees of free­dom. It is great for a vari­ety of appli­ca­tions, such as mate­r­i­al han­dling, weld­ing, dis­pens­ing, and mate­r­i­al removal. The R‑2000iB/​210F has a slim arm and wrist which helps it fit into con­fined and hard to reach places, giv­ing man­u­fac­tur­ers even more ver­sa­til­i­ty when plan­ning their appli­ca­tions. This also helps to reduce inter­fer­ence with sys­tem periph­er­als. Despite the slim arm, the R‑2000iB/​210F has a very large work enve­lope with the abil­i­ty to reach over­head and behind. You can find this robot running on both the Fanuc R30iA or R30iB robot controller platforms depending on date of mfg. The R-2000iB/210F is one of the most popular robots Fanuc has ever produced.

Robot Specifications:

PAYLOAD 210 kg

REACH 2655 mm

AXES 6

REPEATABILITY 0.3 mm

MASS 1240 kg

STRUCTURE Articulated

MOUNTING Floor

Robot Motion Speed:

J1 95 °/s (1.66 rad/s)

J2 90 °/s (1.57 rad/s)

J3 95 °/s (1.66 rad/s)

J4 120 °/s (2.09 rad/s)

J5 120 °/s (2.09 rad/s)

J6 190 °/s (3.32 rad/s)

Robot Motion Range:

J1 ±180°

J2 +75° - 60°

J3 +230° - 132°

J4 ±360°

J5 ±125°

J6 ±360°

Equipped with:

Fanuc R-30iB Controller

Fanuc robot connection cables

Fanuc color teach pendant

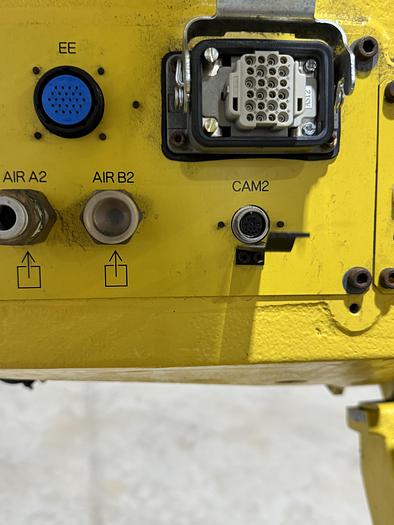

Fanuc EE connection

Fanuc Vision connections.

FOB Truck, 205 Graham Road, Imlay City, MI 48444

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
