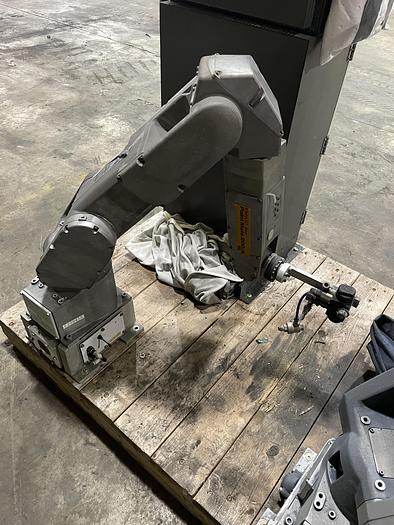

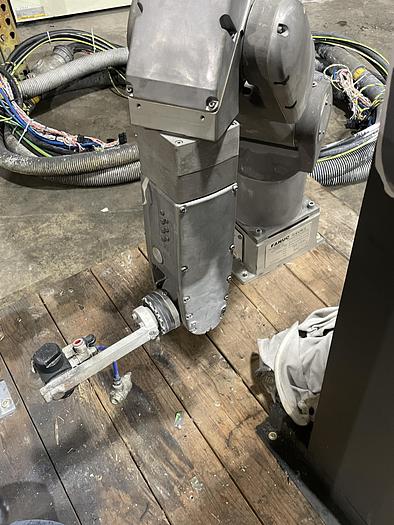

FANUC PAINT MATE 200iC/5L 6 AXIS ROBOT WITH R-30IB CONTROL FOR SALE

1-USED FANUC PAINT MATE 200iC 6 AXIS PAINT ROBOT WITH FANUC R-30iB CONTROL

SERIAL NUMBER F200413

DATE OF MFG. 04/2017

STK#105126

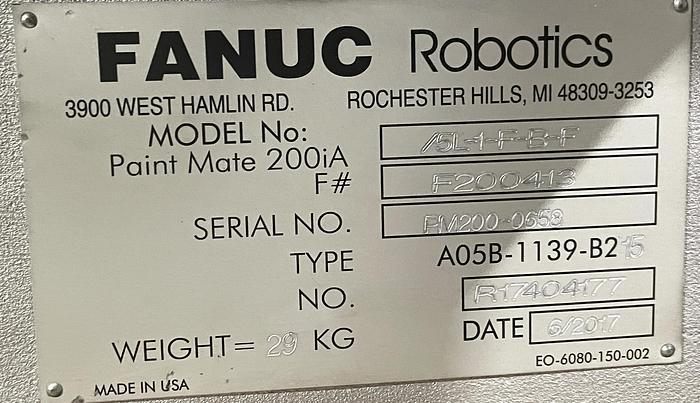

FANUC MECHANICAL ARM PART NUMBER A05B-1139-B215

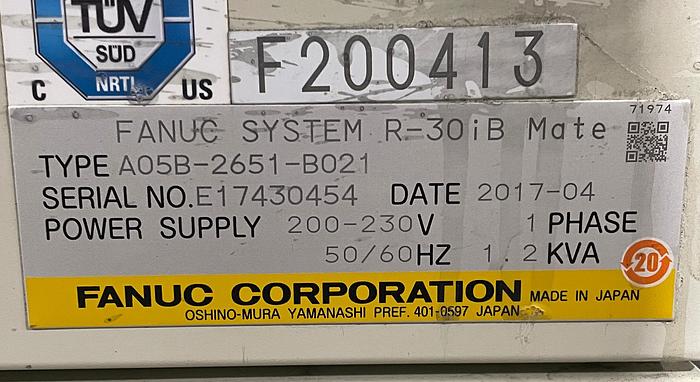

FANUC R-30iB CONTROL PART NUMBER A05B-2651-B021

=====================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

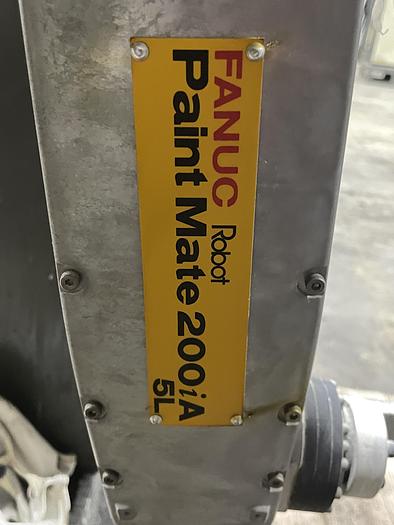

The long arm Fanuc Paint Mate 200iA/5L is a versatile, compact paint robot with an increased maximum reach and 5 kg payload capacity. Ideal for painting applications, assembly and handling operations requiring increased reach even in hazardous environments. This fast painter has a standard handling capacity of 5 kg and an increased reach of up to 892 mm. Optional one or four pneumatic three-way solenoid valves located in the purge cavity for gun triggering capability. To get the most out of even the smallest of paint booths, this robot comes with floor, inverted, angle and wall mounting options for increased locational versatility. Handling and PaintTool software options have been designed to make setting up and adjusting during production easy.

Robot Specifications:

Axes: 6

Payload: 5kg

H-Reach: 892mm

Repeatability: ±0.03mm

Robot Mass: 37kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 270 °/s (4.71 rad/s)

J2 270 °/s (4.71 rad/s)

J3 270 °/s (4.71 rad/s)

J4 450 °/s (7.85 rad/s)

J5 450 °/s (7.85 rad/s)

J6 720 °/s (12.57 rad/s)

Robot Motion Range:

J1 ±340°

J2 ±230°

J3 ±373°

J4 ±380°

J5 ±240°

J6 ±720°

EQUIPPED WITH:

FANUC R-30iB MATE CONTROL

FANUC ROBOT CONNECTION CABLES

FANUC COLOR TEACH PENDANT

Applications:

Paint Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.

CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.

Click to see LR Mate Robots In Stock Ready for Immediate Delivery

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
