BRAND NEW KAWASAKI BA006L ROBOT WITH E01 CONTROLLER, TEACH PENDANT, CABLES, AND 14 MONTH WARRANTY

1- BRAND NEW KAWASAKI MODEL BA006L THRU ARM

ARC WELDING ROBOT WITH

WITH E01 CONTROLLER, TEACH PENDANT, CABLES,

STANDARD 14 MONTH WARRANTY

STK#104941

 ======================

SPECIFICATIONS OBTAINED FROM OEM SOURCE.

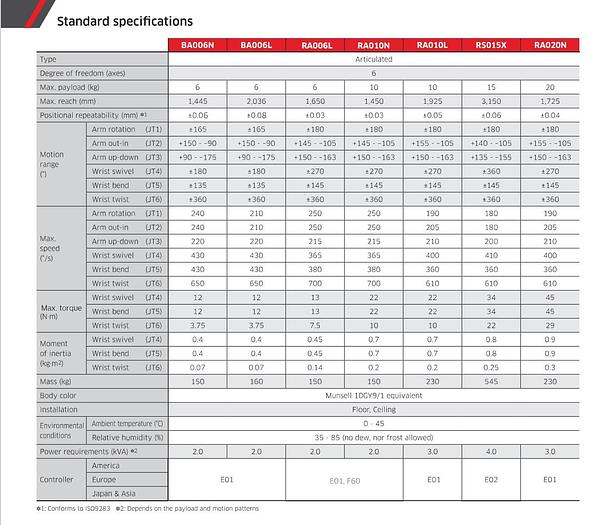

ROBOT SPECIFICATIONS:

PAYLOAD: 6KG

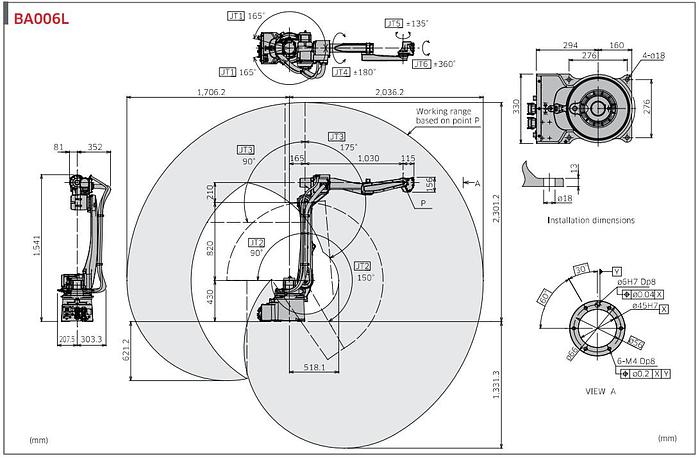

MAX. REACH: 2,036MM

ROBOT CATEGORY: ARTICULATED 6 AXIS THUR ARM ARC WELDING ROBOT

MOUNTING: FLOOR, CEILING

POSITIONAL REPEATABILITY: ±0.08MM

ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±165

ARM OUT-IN (JT2): +150 - −90

ARM UP-DOWN (JT3): +90 - −175

WRIST SWIVEL (JT4): ±180

WRIST BEND (JT5): ±135

WRIST TWIST (JT6): ±360

MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 210

ARM OUT-IN (JT2): 210

ARM UP-DOWN (JT3): 220

WRIST SWIVEL (JT4): 430

WRIST BEND (JT5): 430

WRIST TWIST (JT6): 610

MAXIMUM TORQUE (N X M)

WRIST SWIVEL (JT4): 12

WRIST BEND (JT5): 12

WRIST TWIST (JT6): 3.75

ROBOT WRIST MOMENT OF INERTIA (KG X M SQUARED)

WRIST SWIVEL (JT4): .4

WRIST BEND (JT5): .4

WRIST TWIST (JT6): .07

ROBOT MASS (KG)

160

EQUIPPED WITH (STANDARD)

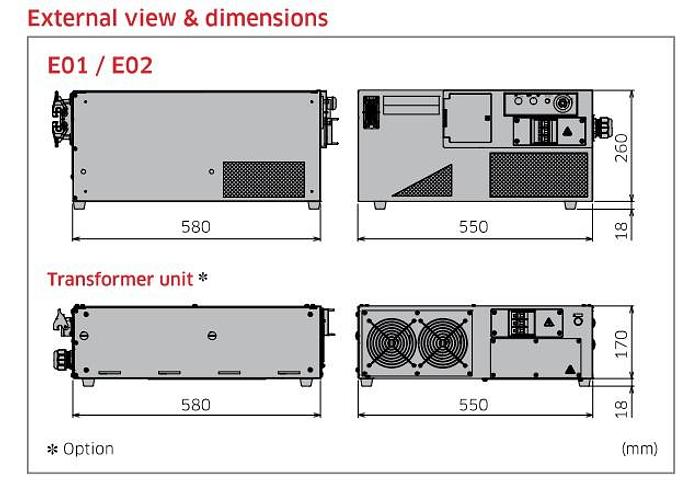

KAWASAKI ROBOTICS E01 CONTROLLER

CABLES

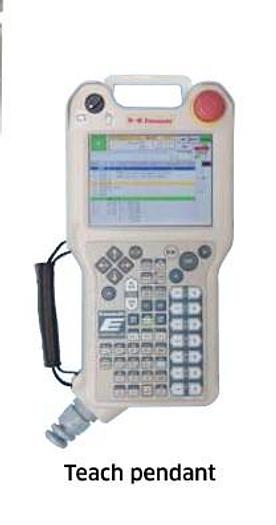

TEACH PENDANT

STANDARD 14 MONTH WARRANTY

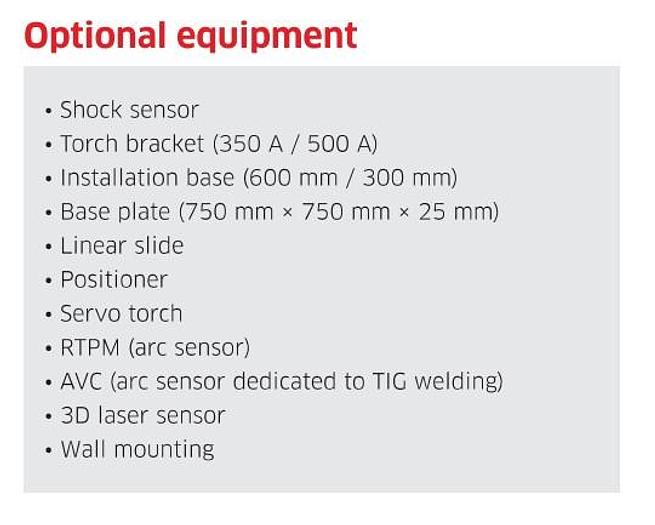

OPTIONAL EQUIPMENT:

KAWASAKI SERVO TORCH

SHOCK SENSOR

TORCH BRACKET (350A / 500A)

INSTALLATION PEDESTAL (300MM / 600MM HEIGHT)

INSTALLATION BASE (750MM X 750MM X 25MM)

LINEAR SLIDE

WELDING POSITIONER

RTPM (ARC SENSOR)

AVC (ARC SENSOR SPECIFICALLY FOR TIG WELDING)

3D LASER SENSOR

WALL MOUNTING

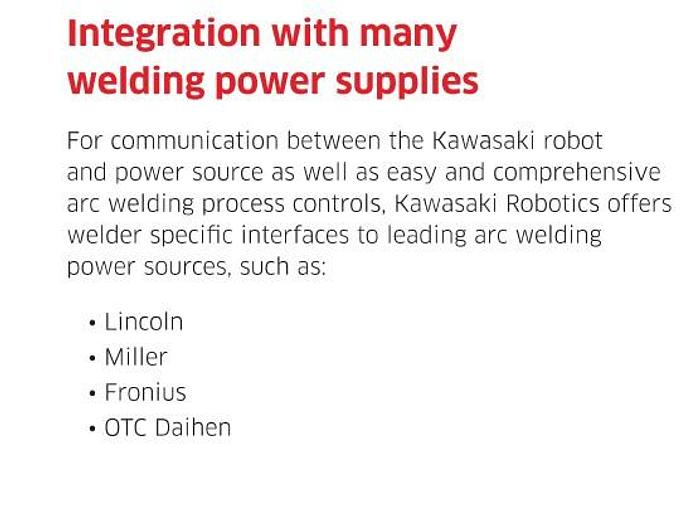

SUPPORTED WELDING POWER SUPPLY BRANDS:

MILLER

LINCOLN ELECTRIC

FRONIUS

OTC

AND OTHERS

Description:

Through-Arm Cable Arc Welding Robot

The BA006L arc welding robot has a maximum reach of 2,036 mm and a hollow wrist structure that allows for easy management of cables and hoses around the torch, providing stable wire feeding and reliable offline teaching. Improve product quality while addressing labor shortages with this high performance robot.

======================================
