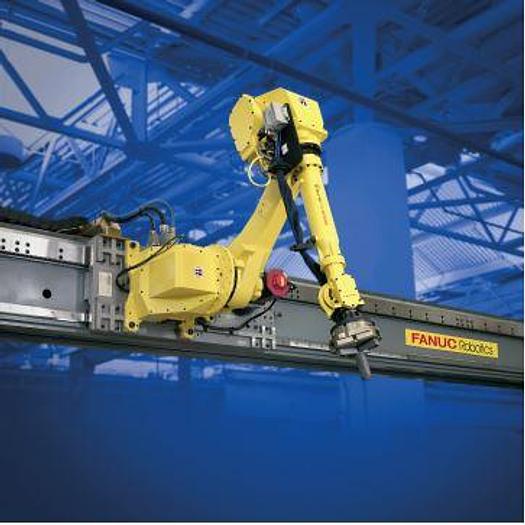

FANUC M710iC/70T GANTRY ROBOTIC SYSTEM, R30iA, 8' TALL RAIL X 11'6" OF TRAVEL

1-USED FANUC ROBOTIC GANTRY SYSTEM WITH FANUC M710iC/70T ROBOT R30iA CONTROLLER 8' TALL X 11'6" OF TRAVEL ON RAIL, ROBOTS ARE SIDE MOUNTED ON RAIL. PERFECT FOR MACHINE TENDING LOAD/UNLOAD ROBOT SERIAL NUMBER F86530 RAIL SERIAL NUMBER TP-004377 DATE OF MFG. 08/2007 STK#104040 ================================================ SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: HOURS SHOWN ON METER 2,434.4 ROBOT SPECIFICATIONS: AXES 6 PAYLOAD WRIST 70KG PAYLOAD J3 ARM 15KG REACH 1900MM REPEATABILITY 0.07MM INTERFERENCE 351MM STRUCTURE ARTICULATED ROBOT AND CARRIER MASS 580KG ROBOT MOTION SPEED: J1 TRAVEL ON RAIL 2.5 OR 3.0 METERS/SECOND J2 120 DEGREES/SECOND J3 120 DEGREES/SECOND J4 225 DEGREES/SECOND J5 225 DEGREES/SECOND J6 225 DEGREES/SECOND ROBOT MOTION RANGE: J1 TRAVEL ON RAIL 3550 MM J2 261 DEGREES J3 491 DEGREES J4 720 DEGREES J5 250 DEGREES J6 720 DEGREES EQUIPPPED WITH: R30iA CONTROLLER TEACH PENDANT CABLES CABLE TRACK 8' UPRIGHTS 3550MM TRAVEL SIDE MOUNT RAIL OVERALL LENGTH OF RAIL 20'2" GRIPPER UNITS TWO STYLES UNIT IS IN GREAT SHAPE AND READY TO RUN THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
