BRAND NEW KAWASAKI BX250L ROBOT WITH F02 CONTROLLER, TEACH PENDANT, CABLES, 14 MONTH WARRANTY

BRAND NEW KAWASAKI BX250L ROBOT WITH F02 CONTROLLER, TEACH PENDANT, CABLES, 14 MONTH WARRANTY

Contact us for price

Location:Imlay City, MI

Description

1- BRAND NEW KAWASAKI MODEL BX250L

WITH F02 CONTROLLER, TEACH PENDANT, CABLES,

STANDARD 14 MONTH WARRANTY

STK#104938

 ======================

SPECIFICATIONS OBTAINED FROM OEM SOURCE.

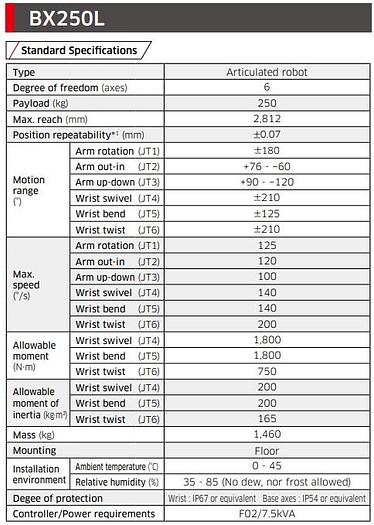

ROBOT SPECIFICATIONS:


PAYLOAD: 250KG

MAX. REACH: 2,812 MM

ROBOT CATEGORY: LARGE GENERAL PURPOSE ROBOTS (100-300KG PAYLOAD)

MOUNTING: FLOOR

ROBOT SERIES: BX SERIES

POSITIONAL REPEATABILITY: ±0.07MM

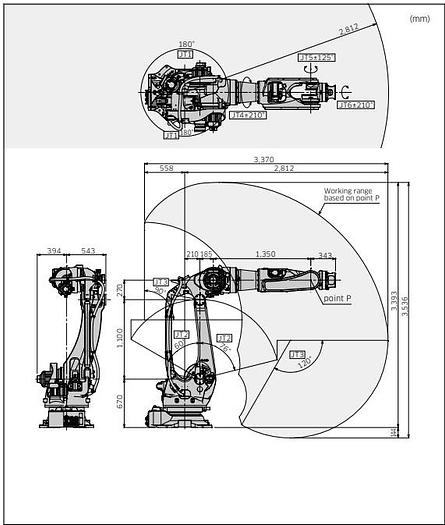

ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±180

ARM OUT-IN (JT2): +76 - −60

ARM UP-DOWN (JT3): +90 - −120

WRIST SWIVEL (JT4): ±210

WRIST BEND (JT5): ±125

WRIST TWIST (JT6): ±210


MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 125

ARM OUT-IN (JT2): 120

ARM UP-DOWN (JT3): 100

WRIST SWIVEL (JT4): 140

WRIST BEND (JT5): 140

WRIST TWIST (JT6): 200


ROBOT WRIST MOMENT (N X M)

WRIST SWIVEL (JT4): 1,800

WRIST BEND (JT5): 1,800

WRIST TWIST (JT6): 750


ROBOT WRIST MOMENT OF INERTIA (KG X M SQUARED)

WRIST SWIVEL (JT4): 200

WRIST BEND (JT5): 200

WRIST TWIST (JT6): 165


ROBOT MASS (KG)

1,460


DEGREE OF PROTECTION

ROBOT WRIST: IP67

BASE AXES: IP54


EQUIPPED WITH:

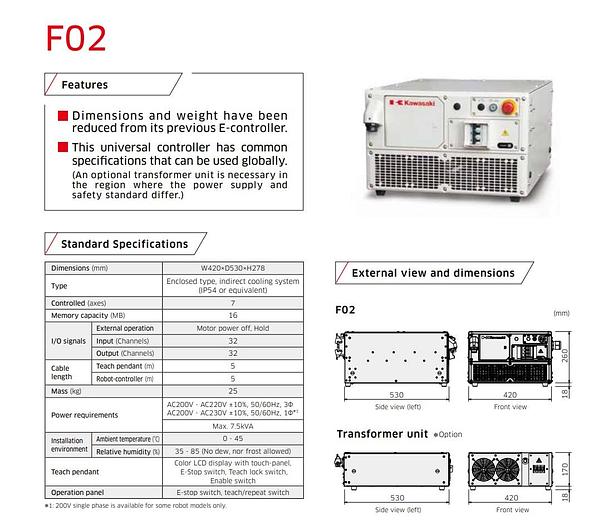

KAWASAKI ROBOTICS F02 CONTROLLER

CABLES

TEACH PENDANT

STANDARD 14 MONTH WARRANTY


Description:


Kawasaki's large general-purpose robots (100-300kg payload) are used in diverse industries, such as the automobile, aerospace, machinery, metal working, electric, electronics and food industries. With high versatility, they can be used for a wide range of applications including assembling, handling and spot welding.


The BX/BT series robots are equipped with hollow wrists and arms.


Specifications

ManufacturerKAWASAKI
ModelBX250L
ConditionNew
Stock Number104938
PAYLOAD250KG
MAX. REACH2,812 MM
MOUNTINGFLOOR
ROBOT SERIESBX SERIES
POSITIONAL REPEATABILITY±0.07MM
