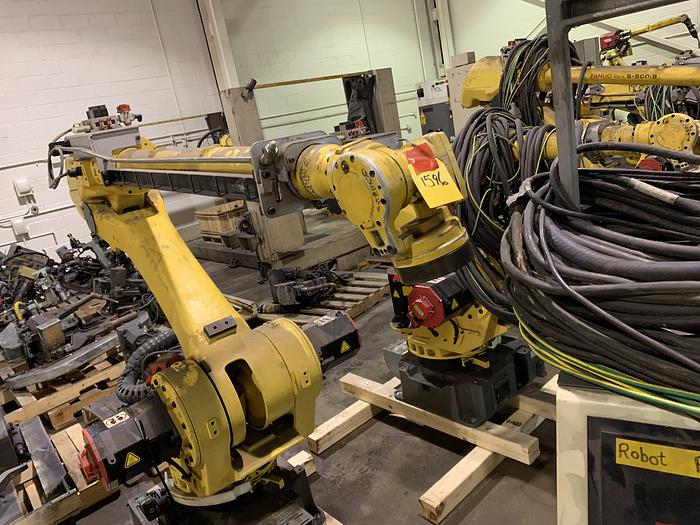

FANUC S500iB 15KG X 2757MM REACH 6 AXIS CNC ROBOT

1-USED FANUC S500iB 15KG X 2757MM REACH 6 AXIS CNC ROBOT SERIAL NUMBER F54983

MECHANICAL ARM PART NUMBER A05B-1217-B201

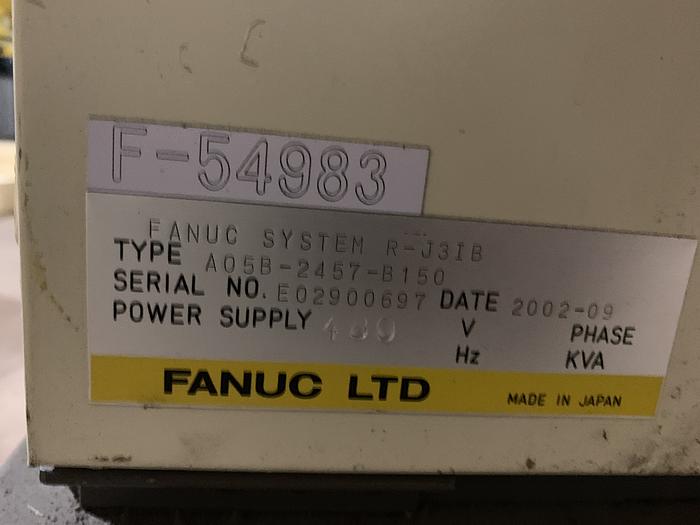

CONTROL PART NUMBER A05B-2457-B150

TAG 1596 DATE OF MFG. 09/2002 STK#103851 ============================ SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: HOURS SHOWN ON METER 13,359.9 Robot Specifications: Axes: 6 Payload: 15.00kg H-Reach: 2757.00mm Repeatability: ±0.1500mm Robot Mass: 610.00kg Structure: Articulated Mounting: Floor, Inverted, Angle Robot Motion Speed: J1 170 °/s (2.97 rad/s) J2 170 °/s (2.97 rad/s) J3 200 °/s (3.49 rad/s) J4 335 °/s (5.85 rad/s) J5 360 °/s (6.28 rad/s) J6 600 °/s (10.47 rad/s) Robot Motion Range: J1 ±160° J2 +100° - 60° J3 +149° - 119° J4 ±240° J5 ±120° J6 ±450° EQUIPPED WITH: FANUC RJ3iB CONTROLLER FANUC ROBOT CONNECTION CABLES FANUC TEACH PENDANT

MECHANICAL UNIT WEIGHT 610 KG

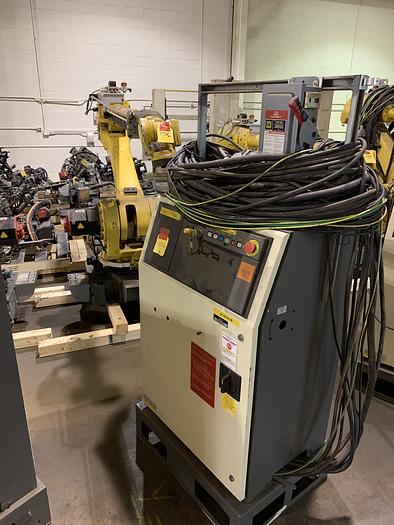

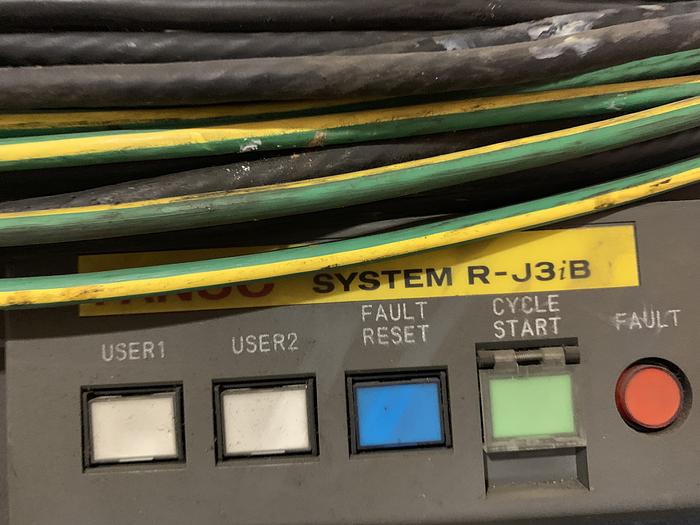

APPROX. WEIGHT OF CONTROL 180 KG Robot Applications: Dispensing Robots Machine Loading Robots Material Handling Robots Material Removal Robots Part Transfer Robots You will like the 6-axis FANUC S-500iB is designed for high-speed smooth movements. The refined movement of the S-500iB R-J3iB, a result of RV speed reducers, is powered by brushless AC servo motors. Cables are routed through hollow joints on the S-500ib arm to reduce interference. The FANUC S-500iB R-J3iB has a slender arm design that increases access to parts and eases installation. It can operate in many environments ranging from harsh to the traditional factory floor. The slender arm design improves robot repeatability and no robot modifications are required for upright, inverted, or wall-mountings. THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
