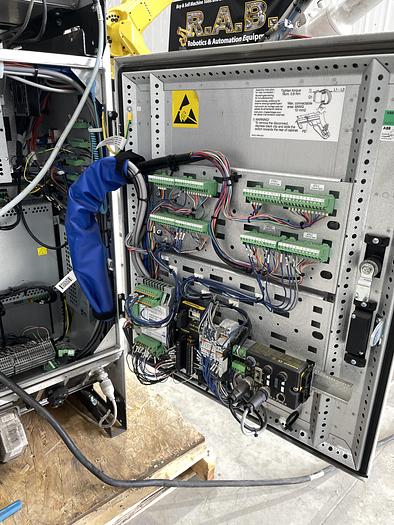

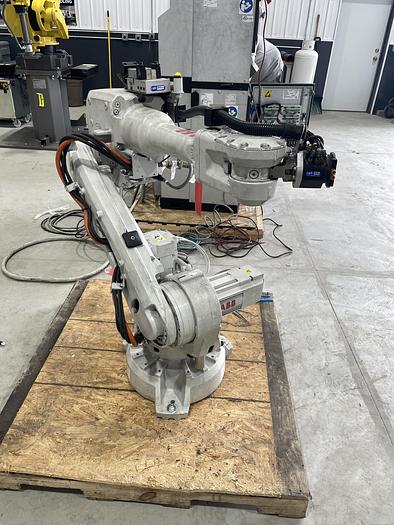

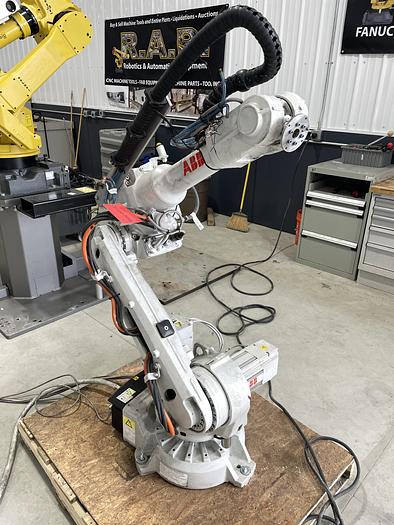

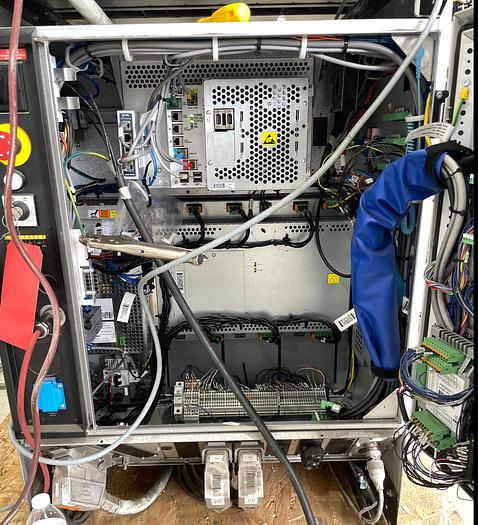

ABB IRB 2600-12/1.65 ROBOT WORK CELL CONSISTING OF 2 IRB 2600 ROBOTS RUNNING OFF OF 1 IRC5 CONTROLLER

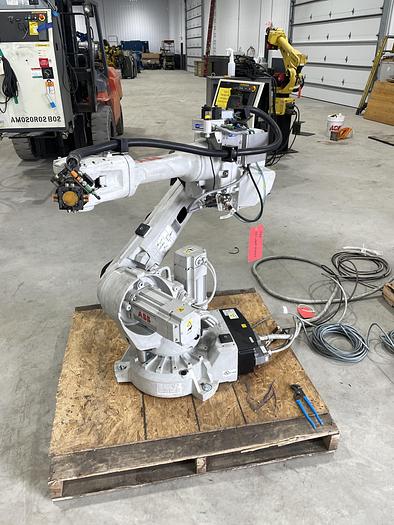

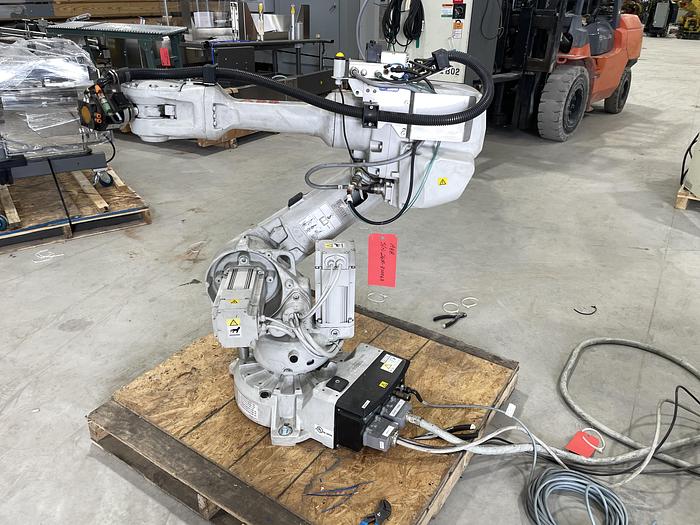

1-USED ABB IRB 2600-12/1.65 DUAL ARM WORK CELL RUNNING ON 1 IRC5 CONTROLLER

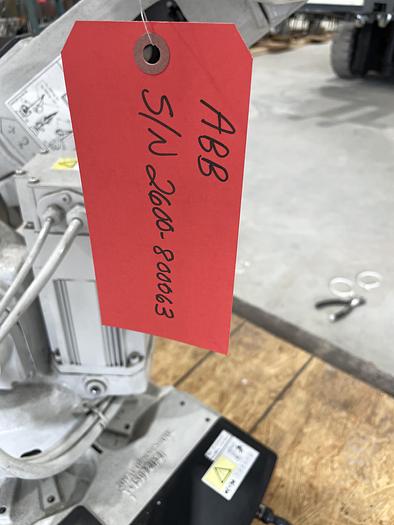

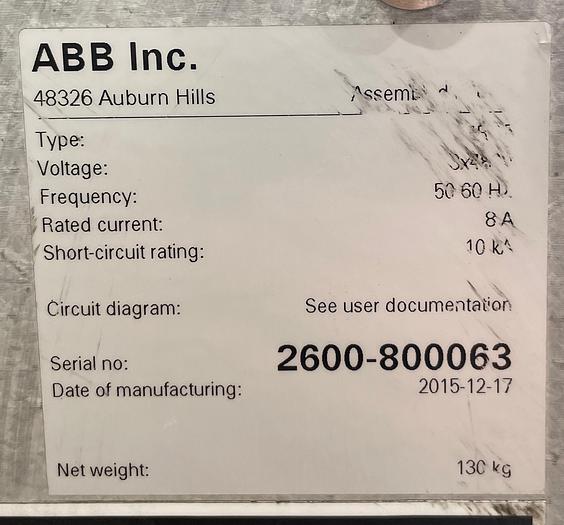

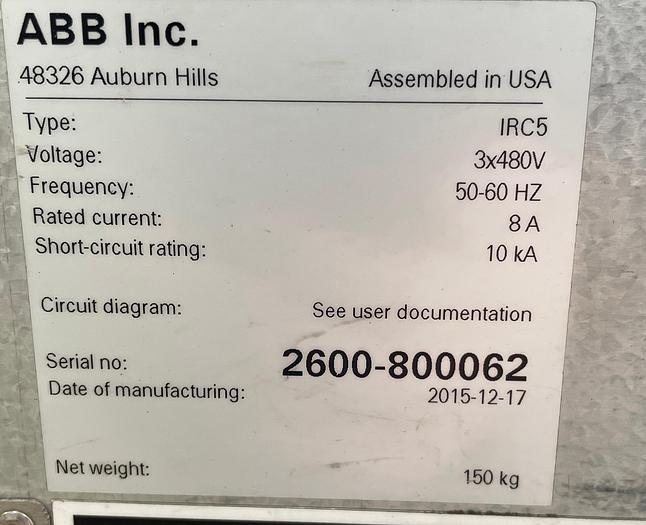

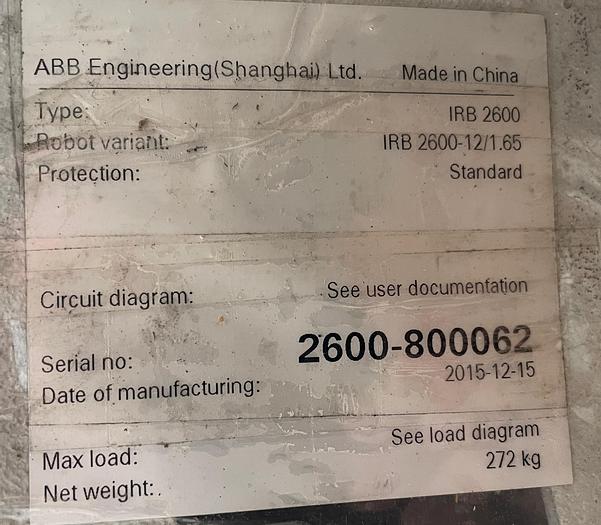

SERIAL NUMBER 2600-800062 & 2600-800063

DATE OF MFG. 12/2015

STK#104762

===============================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

HOURS ON SYSTEM 3,500

Tested - See Video Under Power

Highly accurate the ABB IRB 2600 increase production through high process speeds and low waste amounts. The patented ABB software, TrueMove, is used for ultimate motion control. The compact design of the IRB 2600 IRC5 cuts cycle times by up to 25%. Maximum acceleration is achieved by the new lower body weight of the arm.

Robot Specifications:

Axes: 6

Payload: 12kg

H-Reach: 1650mm

Repeatability: ±0.06mm

Robot Mass: 280kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 175 °/s (3.05 rad/s)

J2 175 °/s (3.05 rad/s)

J3 175 °/s (3.05 rad/s)

J4 360 °/s (6.28 rad/s)

J5 360 °/s (6.28 rad/s)

J6 500 °/s (8.73 rad/s)

Robot Motion Range:

J1 +180° - 180°

J2 +155° - 95°

J3 +75° - 180°

J4 +400° - 400°

J5 +120° - 120°

J6 +400° - 400°

Applications

• Arc Welding Robots
• Cutting Robots
• Deburring Robots
• Drilling Robots
• Fiberglass Cutting Robots
• Grinding Robots
• Laser Welding Robots
• Machine Tending Robots
• Material Handling Robots
• Material Removal Robots
• Milling Robots
• Polishing Robots
• Routing Robots
• Sanding Robots
• Spindle Robots
• Meat Processing Automation Robots

F.O.B. TRUCK, 205 GRAHAM ROAD, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
