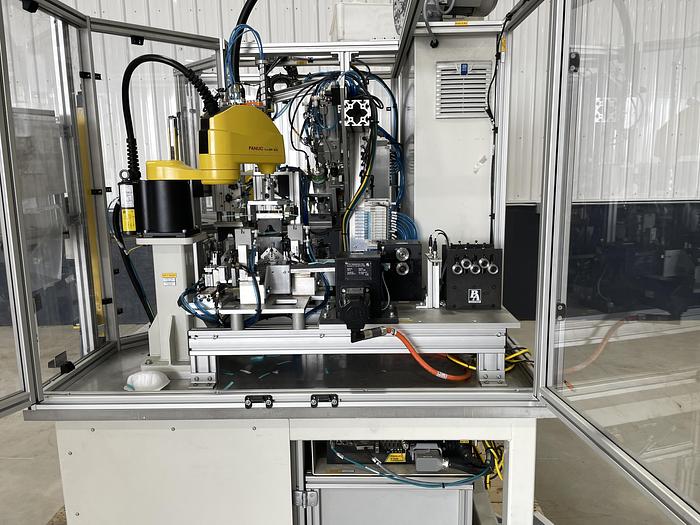

FANUC LR MATE 200iD/4S & FANUC SR3iA ROBOTIC ASSEMBLY CELL WITH ROTARY INDEX TABLE LIKE NEW 2020

1-USED FANUC LR MATE 200iD/4S & FANUC SR3iA ROBOTIC ASSEMBLY CELL WITH ROTARY INDEX TABLE

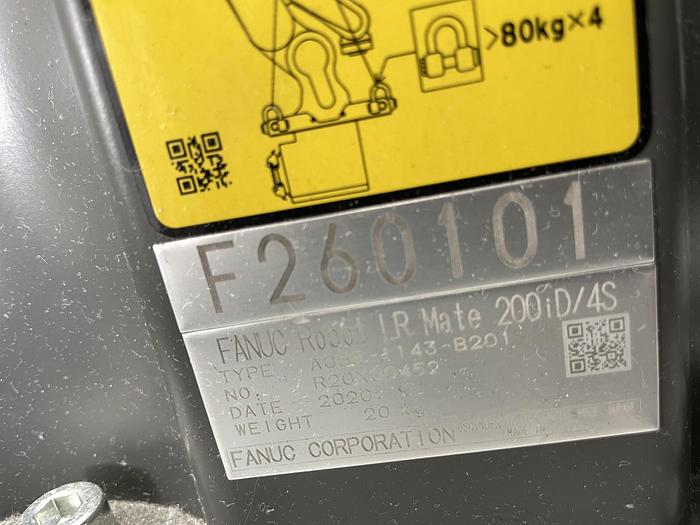

(1) FANUC LR MATE 200iD/4S ROBOT SN F260101 DATE OF MFG 10/2020

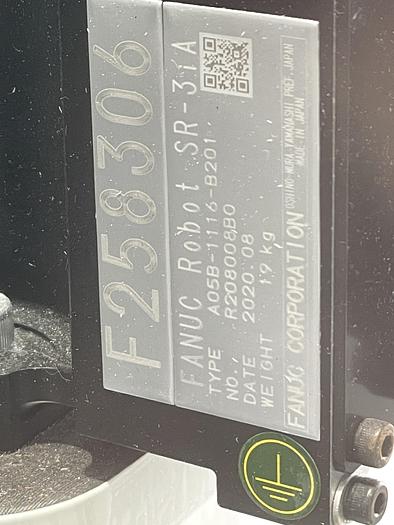

(1) FANUC SR3iA SCARA ROBOT SN F258306 DATE OF MFG 08/2020

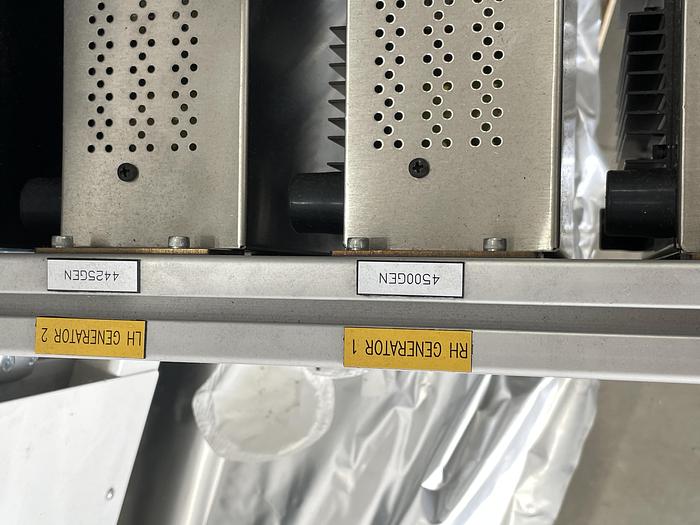

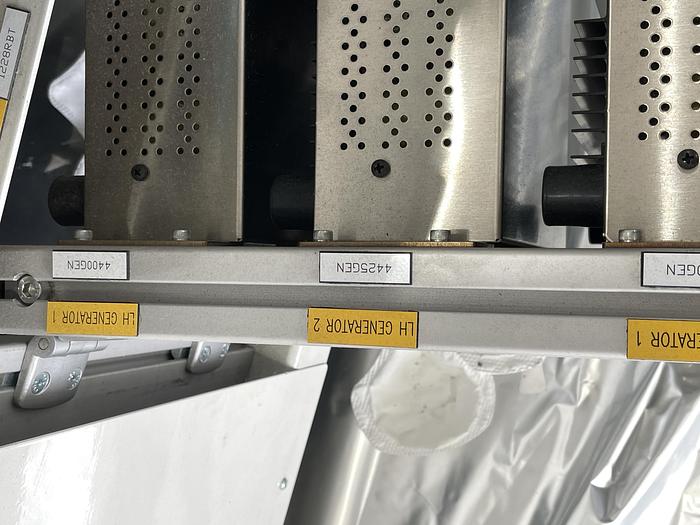

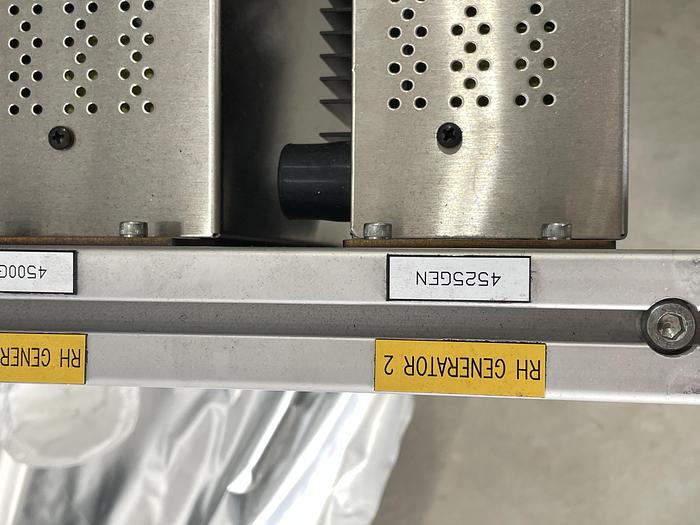

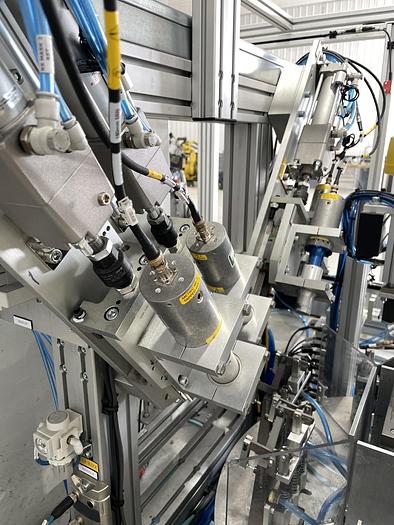

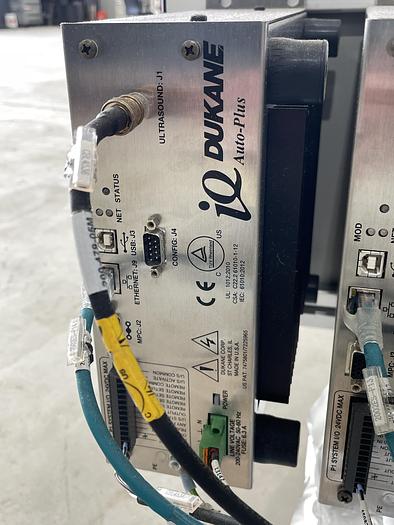

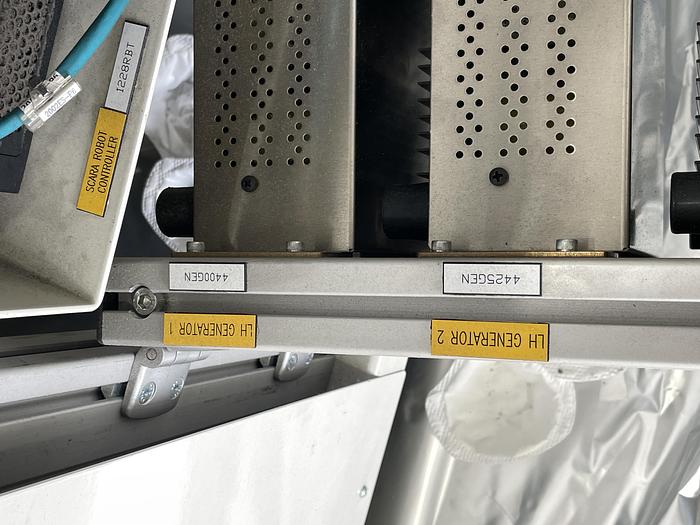

(4) DUCANE ULTRASONIC WELDERS

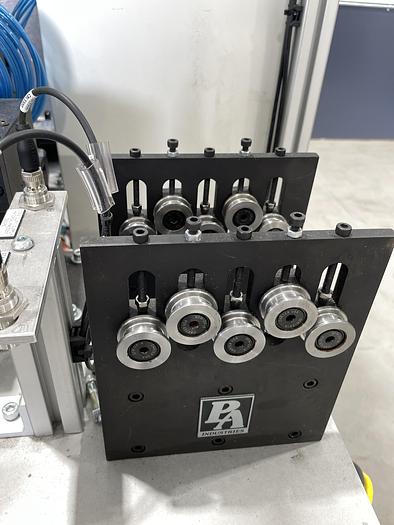

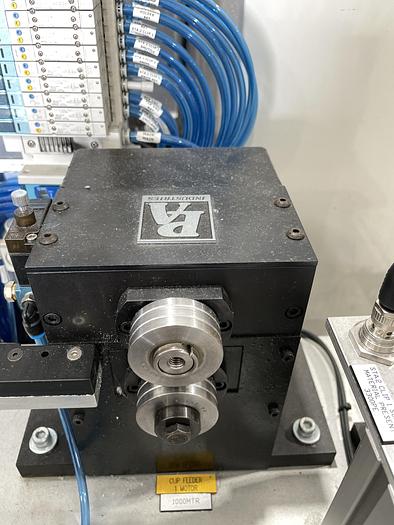

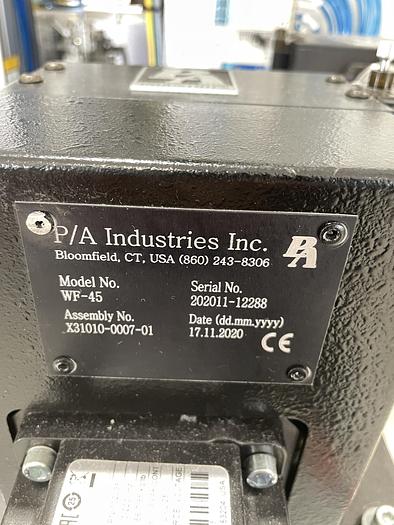

(2) PA INDUSTRIES LIGHT CAPACITY WIRE FEEDERS, STRAIGHTENERS AND CUT OFF SHEARS

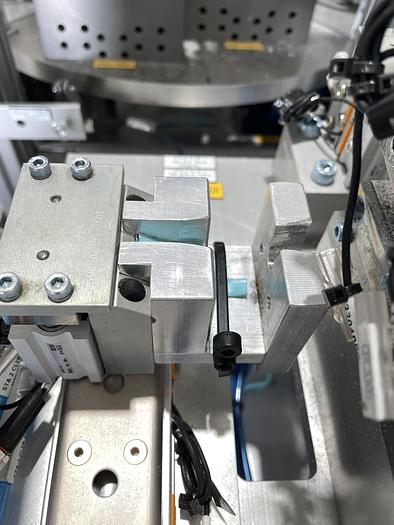

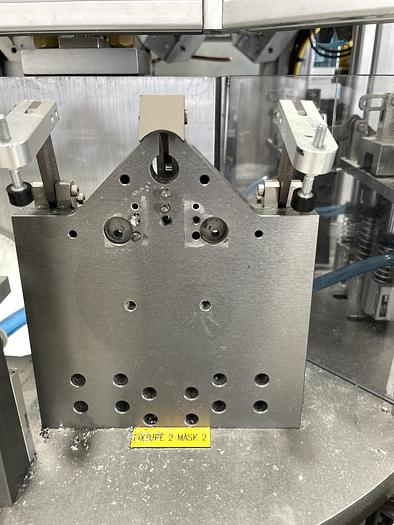

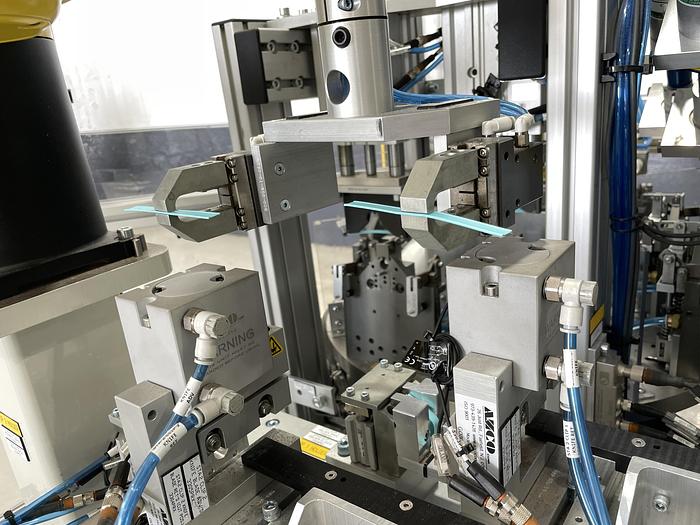

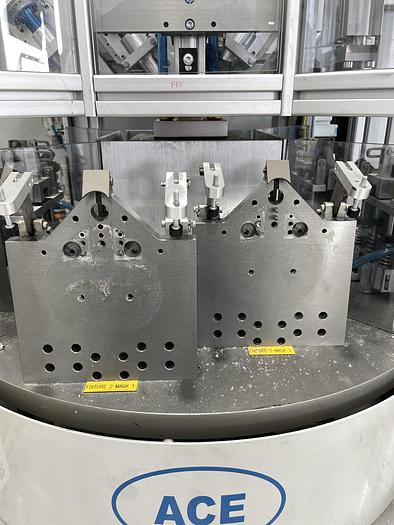

(1) INDEX TABLE WITH TWO FIXTURES PER TABLE POSITION

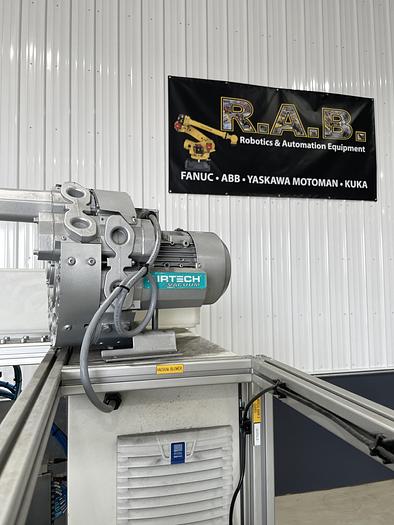

(1) AIRTECH VACUUM GENERATOR

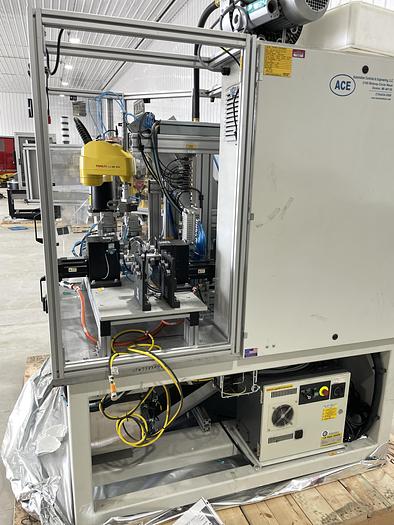

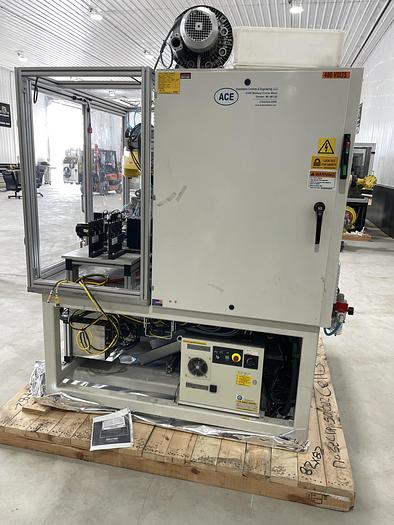

THE ENTIRE CELL WAS MANUFACTURED ON A COMMON BASE WITH FORK POCKETS

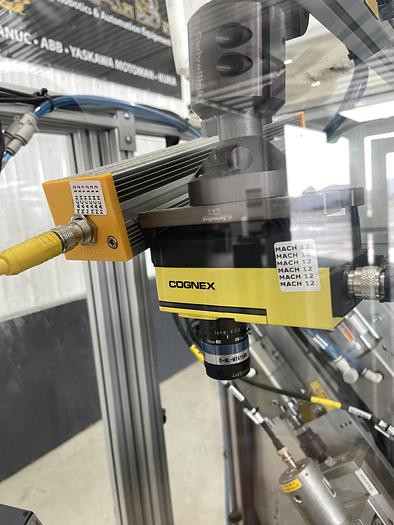

COGNEX CAMERA AND LIGHTING FOR VISION SYSTEM

THE CELL WAS BUILT BY AUTOMATION CONTROLS & ENGINEERING IN LATE 2020

STK#104744

==============================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

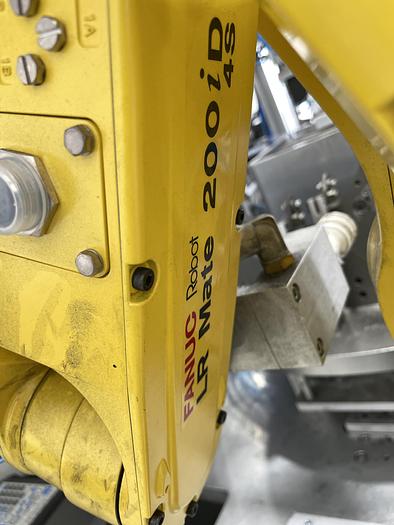

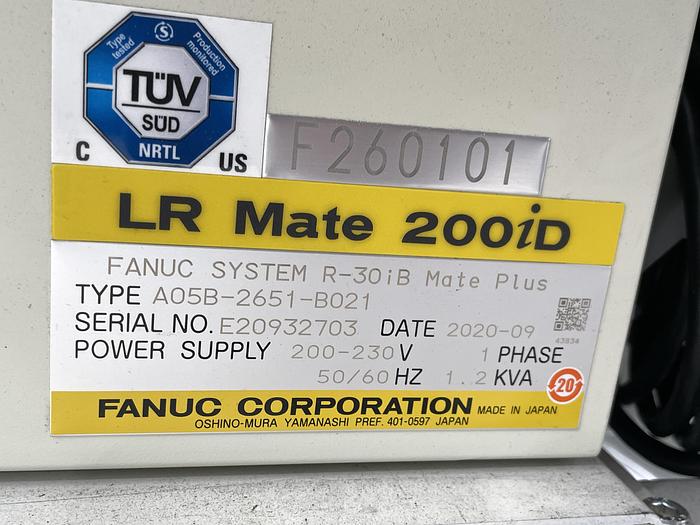

FANUC LR MATE 200iD/4S 6 AXIS ROBOT WITH R30iB MATE PLUS CONTROL W/VISION SYSTEM

FANUC LRMate 200iD/4S R30iB is a highly productive, short arm model available in the LR Mate 200iD series. It has a 550mm reach and a 4 kg payload capacity. Extremely compact, this 6 axis short arm robot has been designed for confined spaces and compact machines. The FANUC LR Mate 200iD/4s's slim arm is useful in narrow spaces, and its hand cabling and piping are integrated into the arm. Easy to integrate, this model is also available with a range of options including integrated intelligent (vision & force) functionality, and special application packages.

Robot Specifications:

Axes: 6

Payload: 4kg

H-Reach: 550mm

Repeatability: ±0.02mm

Robot Mass: 20kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 460 °/s (8.03 rad/s)

J2 460 °/s (8.03 rad/s)

J3 520 °/s (9.08 rad/s)

J4 560 °/s (9.77 rad/s)

J5 560 °/s (9.77 rad/s)

J6 900 °/s (15.71 rad/s)

Robot Motion Range:

J1 +340° - 360°

J2 ±230°

J3 ±397°

J4 ±380°

J5 ±240°

J6 ±720°

Applications:

Assembly Robots

Deburring Robots

Machine Loading Robots

EQUIPPED WITH:

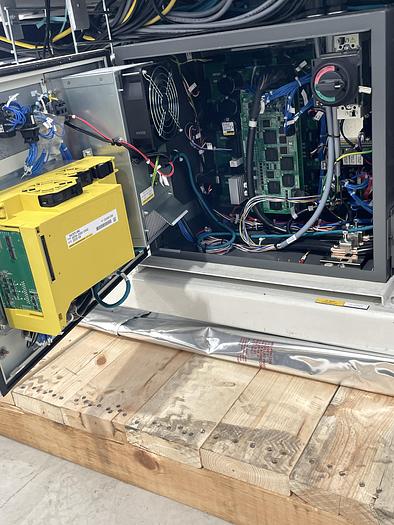

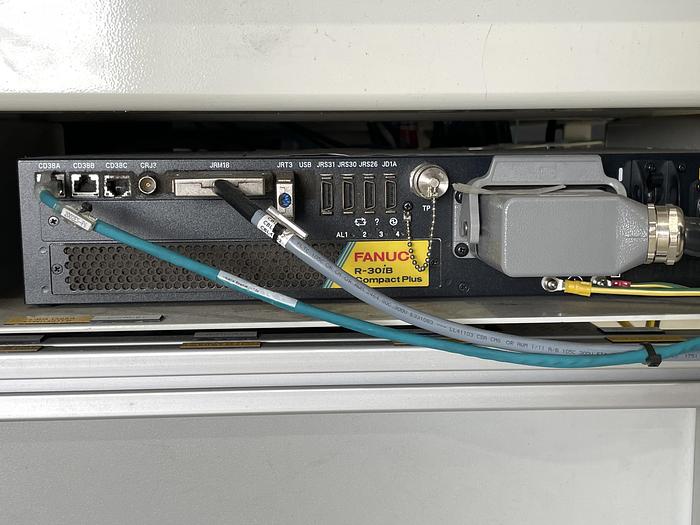

FANUC R30iB MATE PLUS CONTROLLER

FANUC ROBOT CONNECTION CABLES

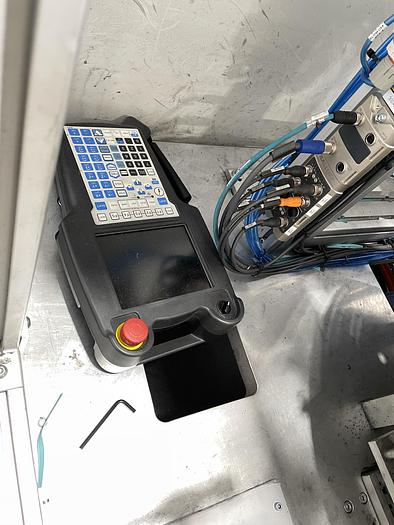

FANUC COLOR TEACH PENDANT

COGNEX CAMERA & LIGHTING VISION SYSTEM

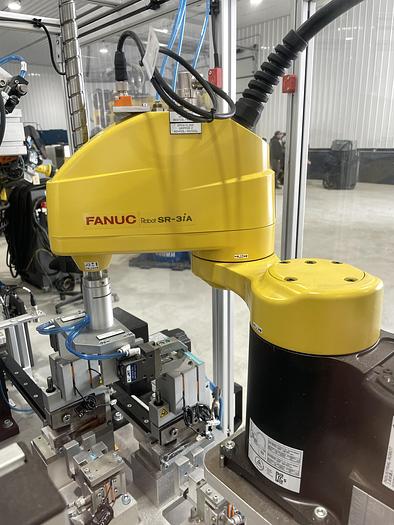

FANUC SR3iA 4 AXIS HIGH SPEED SCARA ROBOT WITH R30iB OPEN AIR CONTROLLER

FANUC SR-3ia is the perfect solution for your small part assembly and handling applications. It is a four-axis robot that brings fast speeds and incredible precision to the production line. This SCARA SR-3ia robot also offers users a very compact footprint and slim profile to help minimize interference with peripheral devices.

Robot Specifications:

Axes: 4

Payload: 3kg

H-Reach: 400mm

Repeatability: ±0.01mm

Robot Mass: 19kg

Structure: Scara

Mounting: Shelf

Robot Motion Speed:

J1 720mm/sec

J2 780mm/sec

J3 1800mm/sec

J4 3000mm/sec

Robot Motion Range:

J1 +/-142

J2 +/-145

J3 200mm

J4 +/-360

Applications:

Dispensing Robots

Pick and Place Robots

Assembly Robots

EQUIPPED WITH

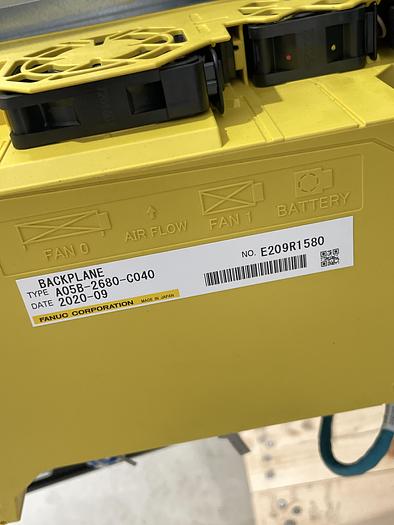

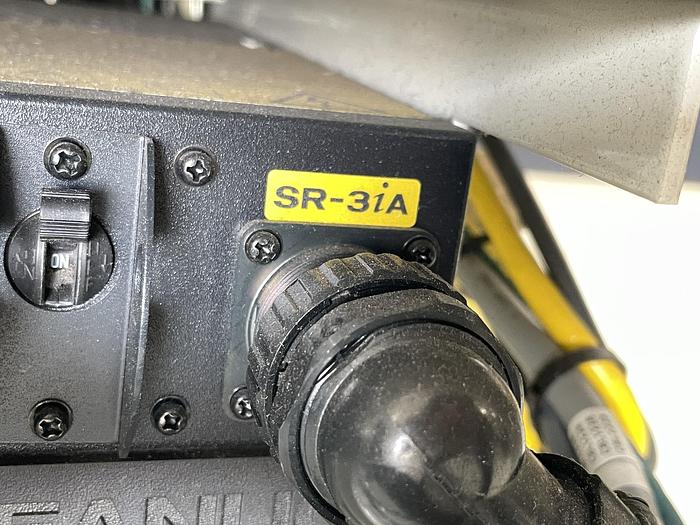

FANUC OPEN AIR R30iB CONTROLLER

FANUC ROBOT CONNECTION CABLES

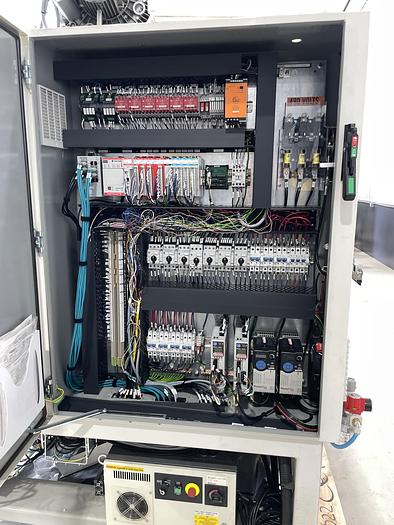

CELL JIC PANEL AND CONTROLS

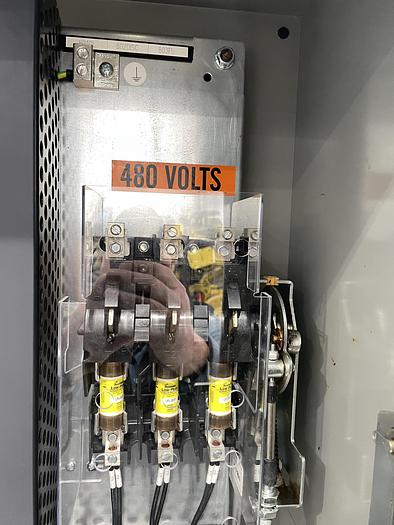

480 VOLT/ 3 PHASE/ 60 CYCLES

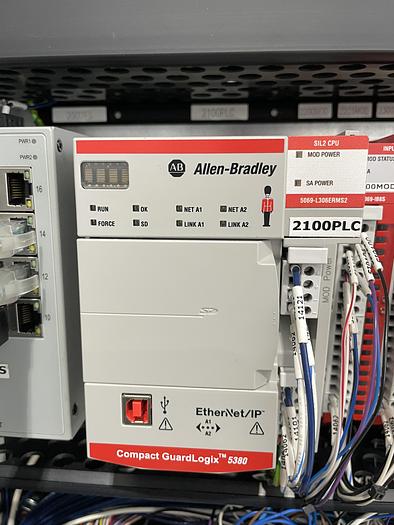

INTEGRATED WITH ALL ALLEN BRADLEY 2100 PLC CONTROLS

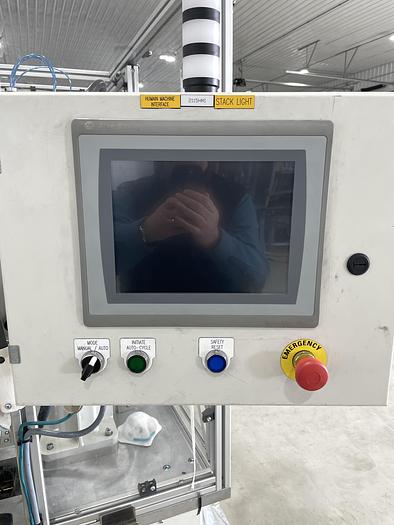

ALLEN BRADLEY HMI

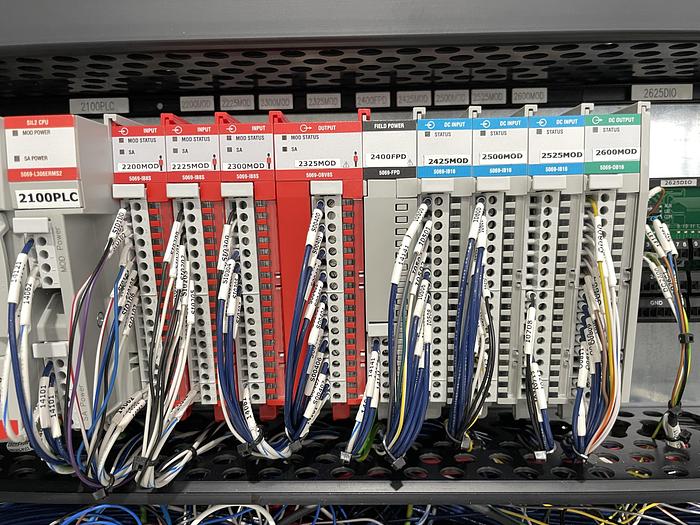

ALLEN BRADLEY IO

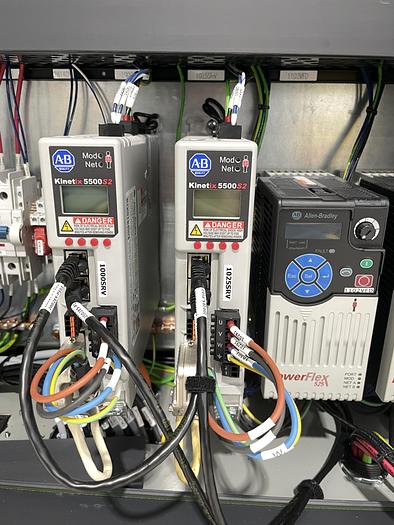

ALLEN BRADLEY KINETIX 5500S2

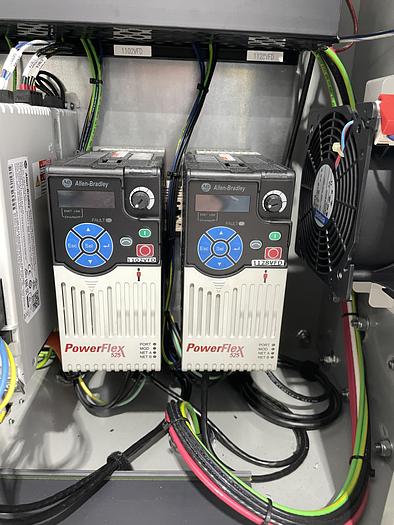

ALLEN BRADLEY 525 POWER FLEX POWER SUPPLIES

FOB TRUCK, IMLAY CITY, MI 48444
