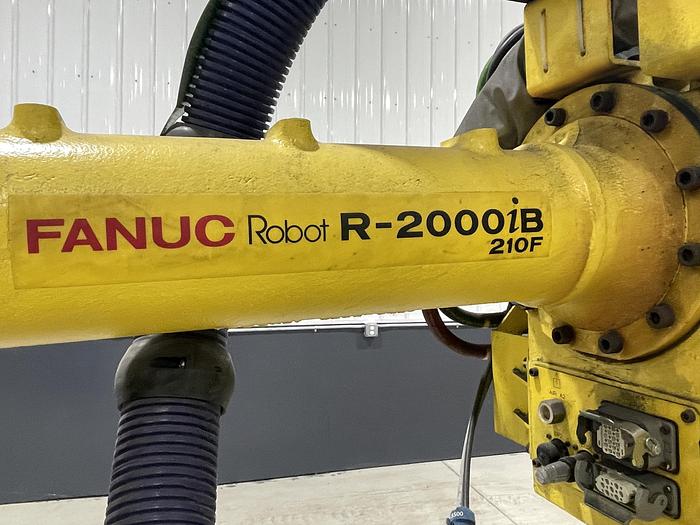

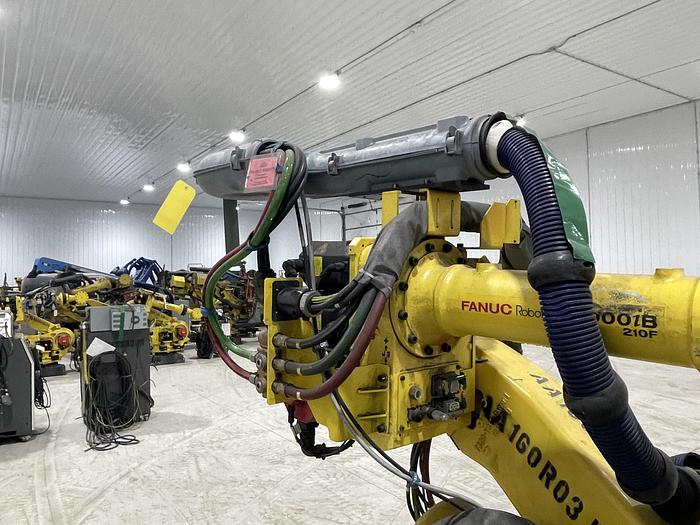

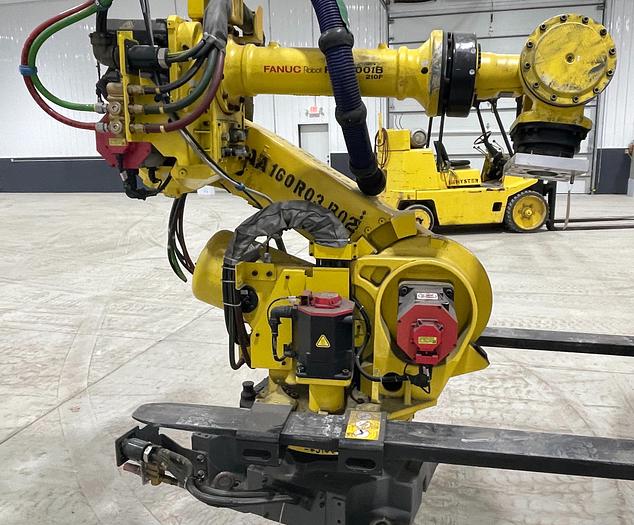

FANUC R2000IB/210F 6 AXIS ROBOT WITH R30iA CONTROLLER

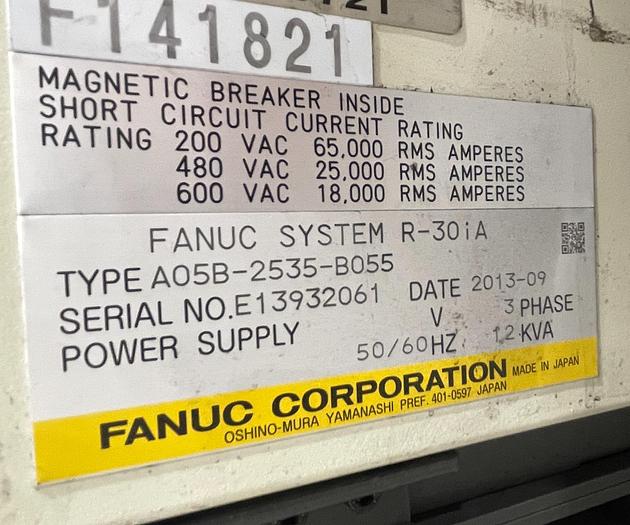

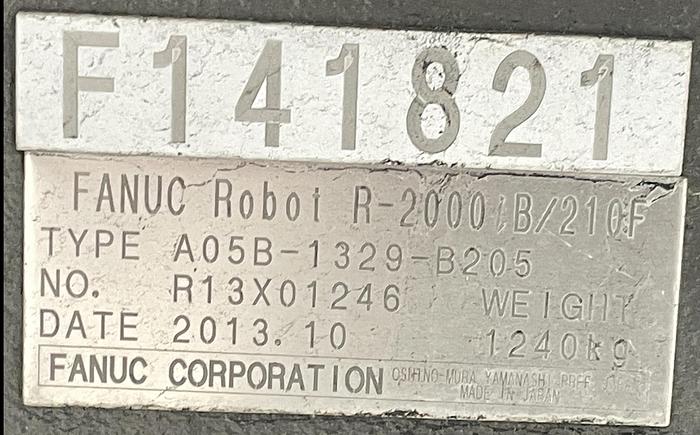

1- USED FANUC R2000iB/210F 6 AXIS CNC ROBOT WITH R30iA CONTROLLER MACHINE SERIAL NUMBER FF141821 DATE OF MFG. 09/2013 STK#104734 ======================================================= SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

THIS UNIT HAS BEEN CLEANED AND TESTED AT OUR FACILITY.

Specifications:

Axes: 6 Payload: 210kg H-Reach: 2655mm Repeatability: ±0.3mm Robot Mass: 1240kg Structure: Heavier Payload Robot Motion Speed: J1 95 °/s (1.66 rad/s) J2 90 °/s (1.57 rad/s) J3 95 °/s (1.66 rad/s) J4 120 °/s (2.09 rad/s) J5 120 °/s (2.09 rad/s) J6 190 °/s (3.32 rad/s) Robot Motion Range: J1 ±180° J2 +75° - 60° J3 +230° - 132° J4 ±360° J5 ±125° J6 ±360°

Applications

• Resistance Welding Robots
• Spot Welding Robots
• Injection Molding Robots
• Machine Loading Robots
• Machine Tending Robots
• Material Handling Robots
• Assembly Robots
• Fiberglass Cutting Robots

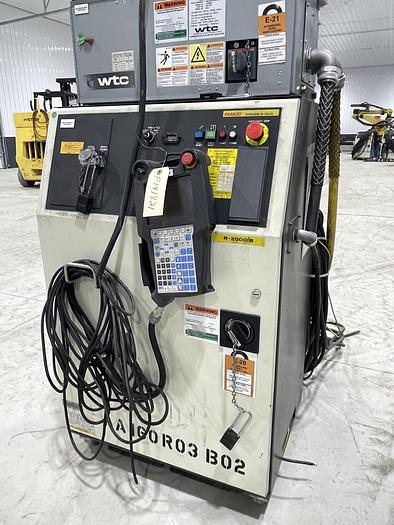

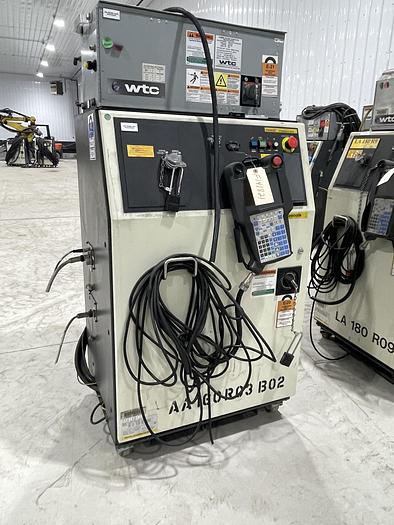

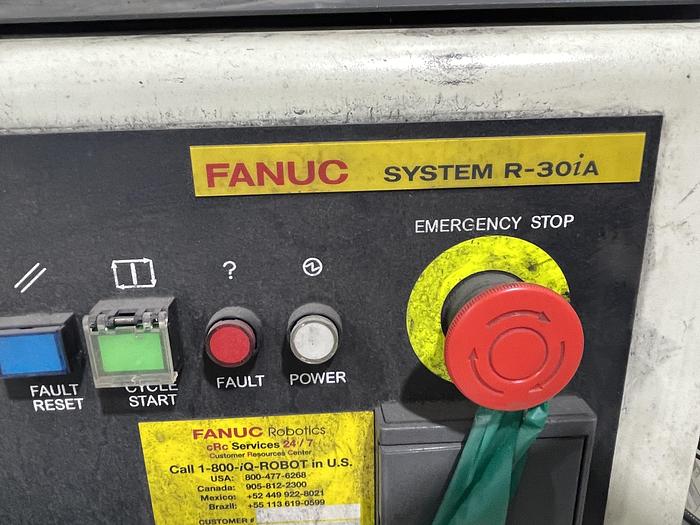

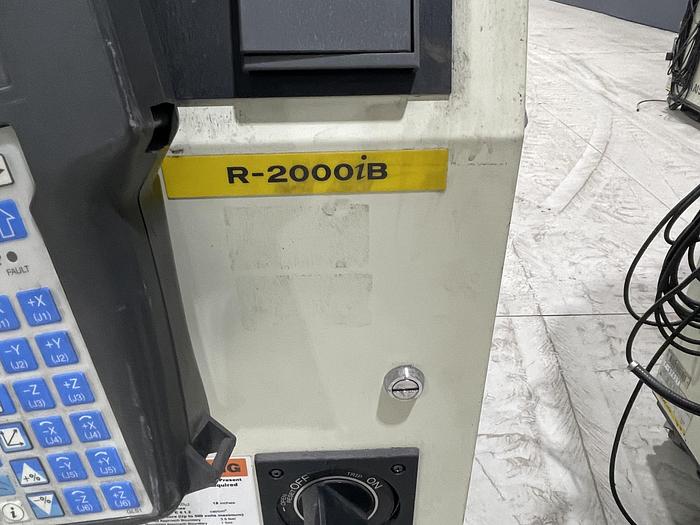

EQUIPPED WITH: FANUC R30iA CONTROLLER FANUC ROBOT CONNECTION CABLES FANUC COLOR TEACH PENDANT

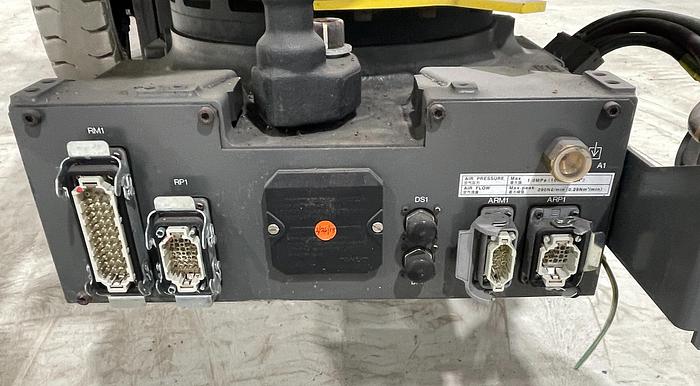

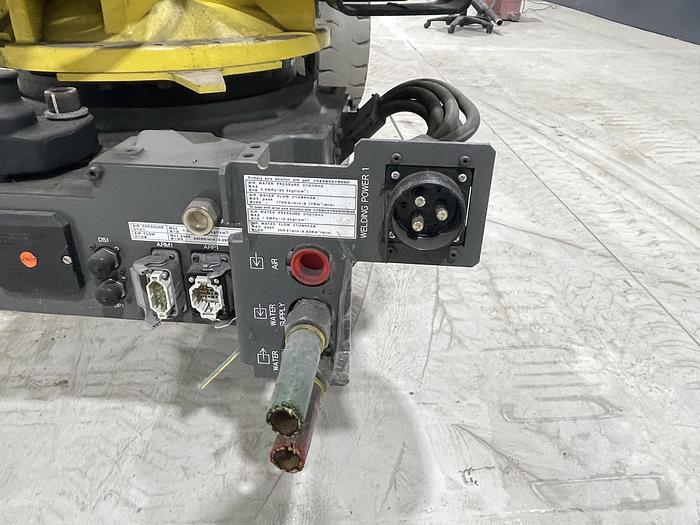

ARM 1 CUSTOMER CONNECTION CABLE

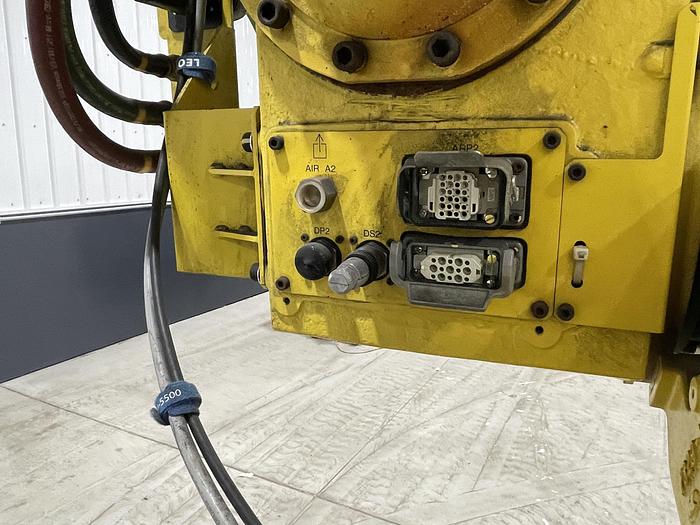

ARP 1 CUSTOMER CONNECTION CABLE FOB TRUCK IMLAY CITY, 48444 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. (586)752-0090 WWW.RABIND.COM
