FANUC M-6iB/6S

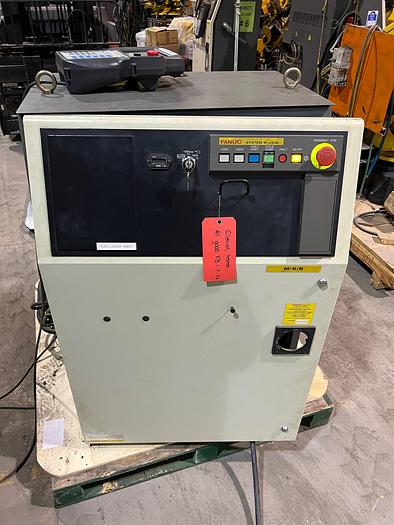

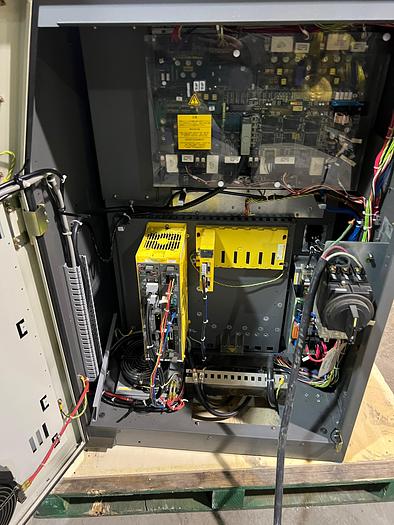

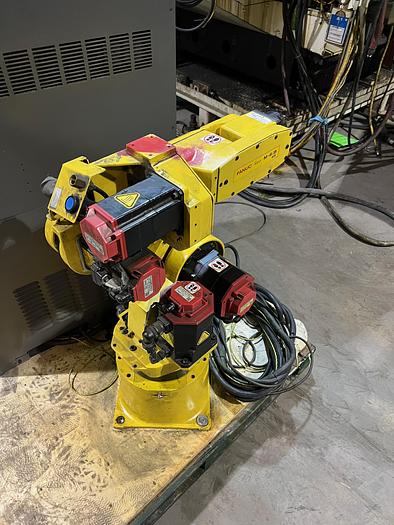

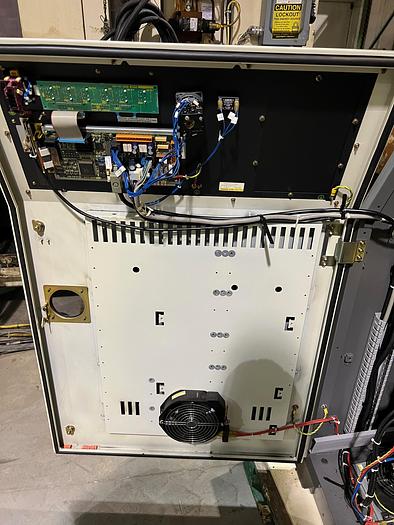

1 - USED FANUC M-6iB/6S ROBOT WITH RJ3iB CONTROLLER, TESTED AND CLEANED UP.

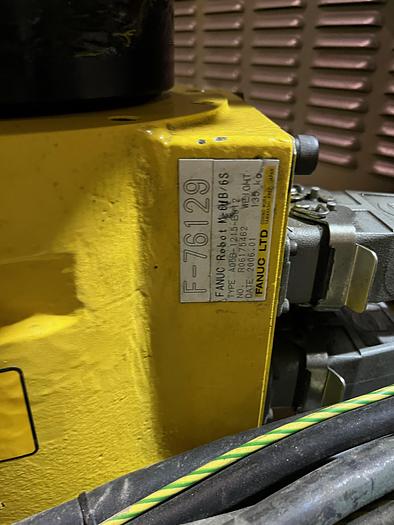

ARM SERIAL NUM: F76129

CONTROLLER SERIAL NUM: F71623

STOCK NUM: 104609

THIS UNIT HAS BEEN CLEANED UP AND TESTED IN OUR WAREHOUSE. SEE VIDEO FOR DEMO PROGRAM

============================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER.

The FANUC M-6iB/6S is a short arm robot arm designed for compact, confined spaces. The M6iB/6S RJ3iB robot arm performs material handling tasks where parts sizes and work envelopes are less of an issue. A +/- 0.08 millimeter repeatability and a 6 kilogram maximum payload capacity allow the M 6iB/6S to perform precise, lightweight material handling.

Robot Specifications

Axes: 6

Payload: 6kg

H-Reach: 951mm

Repeatability: ±0.08mm

Robot Mass: 135kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed

J1 200 °/s (3.49 rad/s)

J2 200 °/s (3.49 rad/s)

J3 260 °/s (4.54 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 720 °/s (12.57 rad/s)

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
