FANUC LR MATE 200ID ROBOTIC SMALL PACKAGE LABELING CELL

1-FANUC LR MATE 200iD 6 AXIS CNC ROBOT SMALL PACKAGE LABELING CELL WITH R30iB MATE CONTROLLER

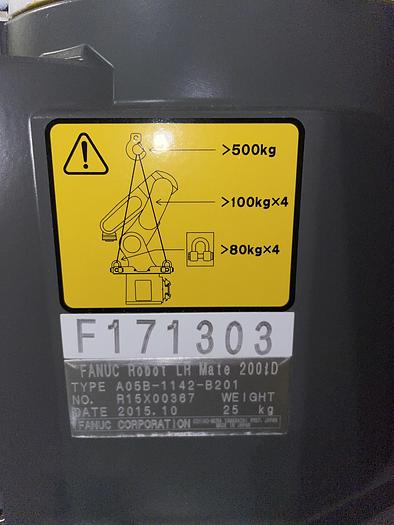

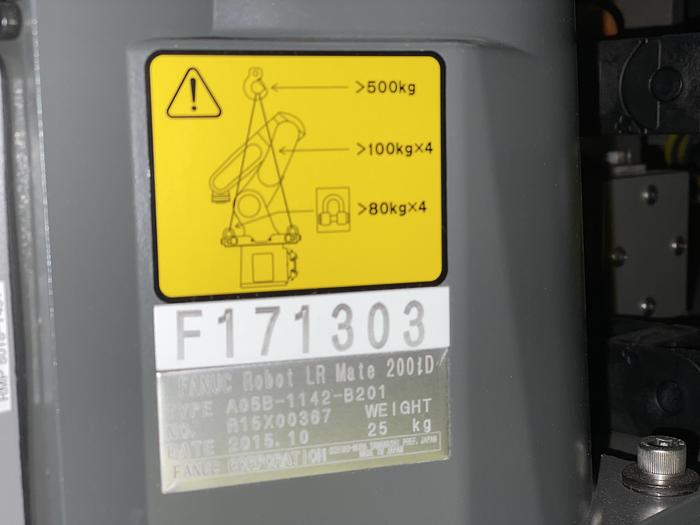

SERIAL NUMBER F171303

DATE OF MFG. 10/2015

STK#104561

======================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

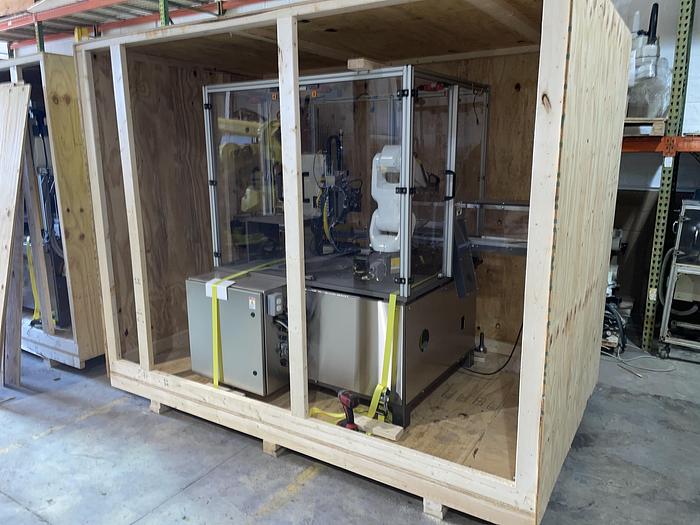

THIS IS A COMPLETE MINT ROBOTIC LABELING CELL WITH PRINTER HEAD AND LABEL APPLICATION.

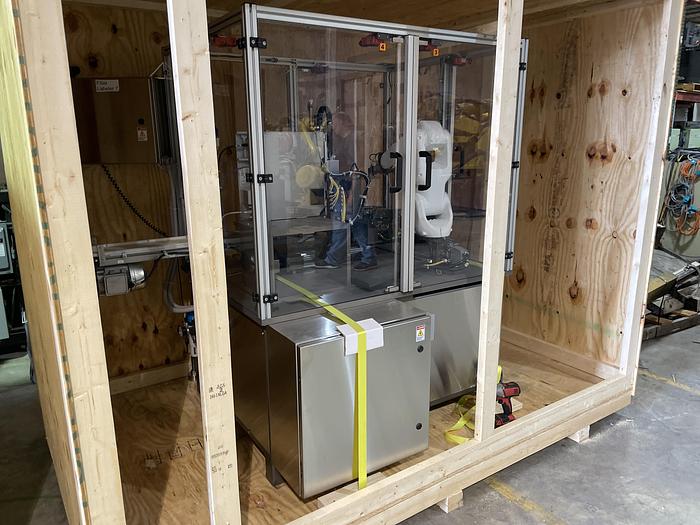

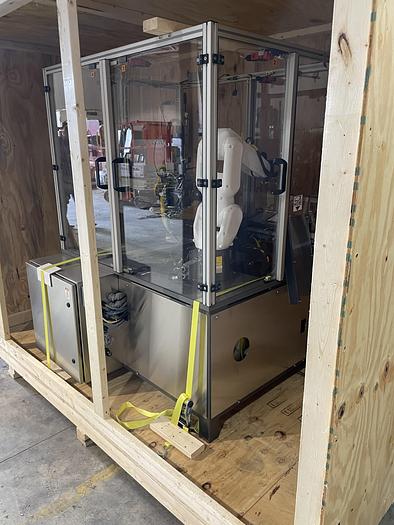

THE CELL IS COMPLETELY ENCLOSED IN STAINLESS STEEL AND PLEXIGLASS ACCESS DOORS.

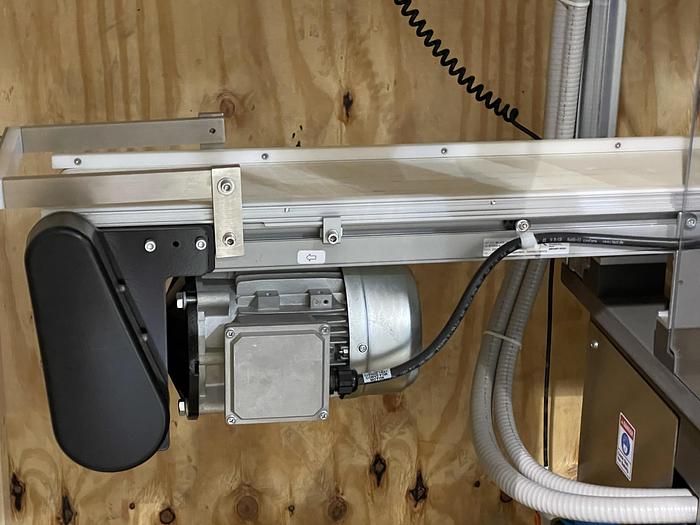

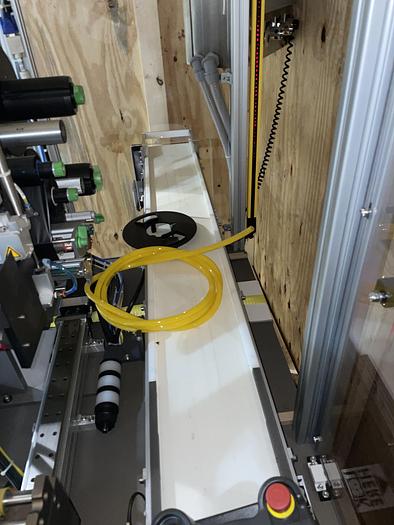

IT IS IDEALLY SUITED TO APPLY LABELS TO A VARIETY OF SMALL PACKAGES. BUILT IN CONVEYOR

SYSTEM MOVES PACKAGE THRU THE LABELING PROCESS TO THE ROBOT. FLEXIBLE CLEAN ROOM READY,

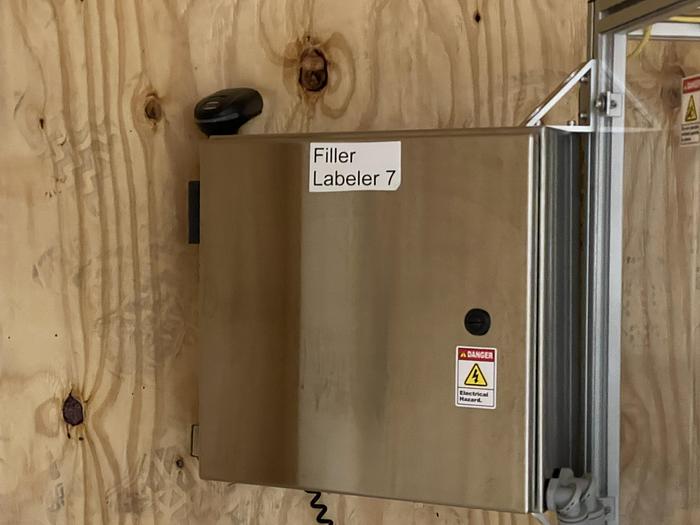

INTEGRATED WITH ALLEN BRADLEY PLC CONTROLS PANEL. 2 UNITS AVAILABLE IDENTICAL UNITS.

This FANUC LR Mate 200iD is the latest, compact, mini robot that has the approximate reach and size of a human arm. This helps to minimize interference with peripheral devices and allows operation in narrow spaces. It is known as the lightest mechanical unit in its class and has multiple mounting options which helps with installation flexibility.

Robot Specifications:

Axes: 6

Payload: 7.00kg

H-Reach: 717.00mm

Repeatability: ±0.0200mm

Robot Mass: 25.00kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 450 °/s (7.85 rad/s)

J2 380 °/s (6.63 rad/s)

J3 520 °/s (9.08 rad/s)

J4 550 °/s (9.6 rad/s)

J5 545 °/s (9.51 rad/s)

J6 1000 °/s (17.45 rad/s)

Robot Motion Range:

J1 +340° - 360°

J2 ±245°

J3 ±420°

J4 ±380°

J5 ±250°

J6 ±720°

Robot Applications:

Assembly Robots

Deburring Robots

Machine Loading Robots

Order Picking Robots

Polishing Robots

Vision Robots

3D Laser Vision Robots

EQUIPPED WITH:

FANUC R30IB CONTROLLER

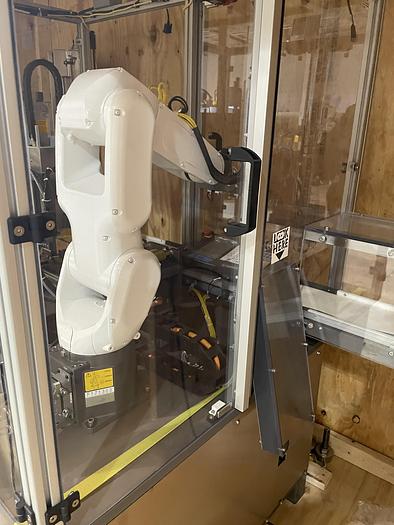

FANUC LRMATE 200ID ROBOT

FANUC ROBOT CONNECTION CABLES

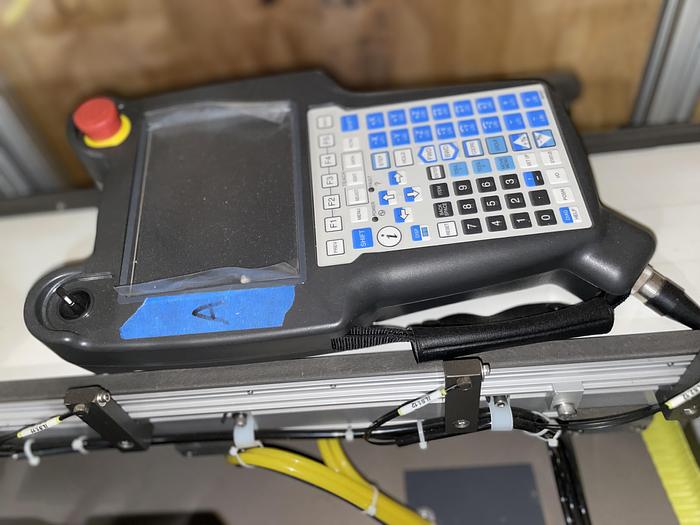

FANUC COLOR TEACH PENDANT

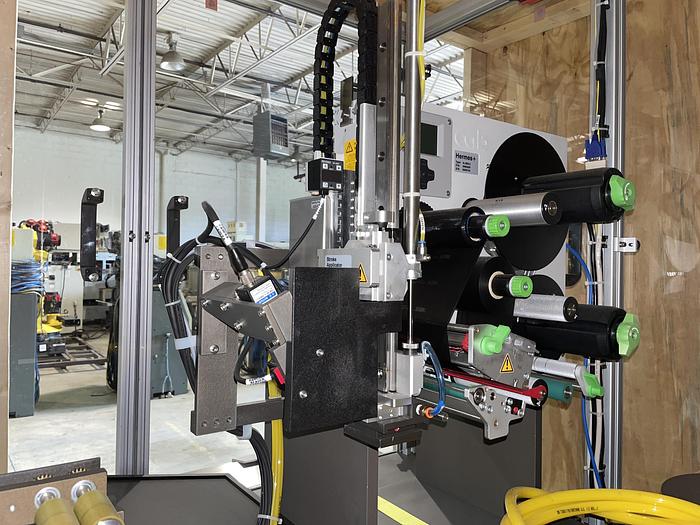

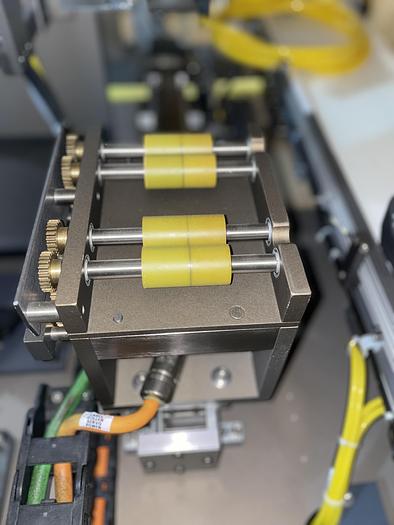

PRINTER HEAD

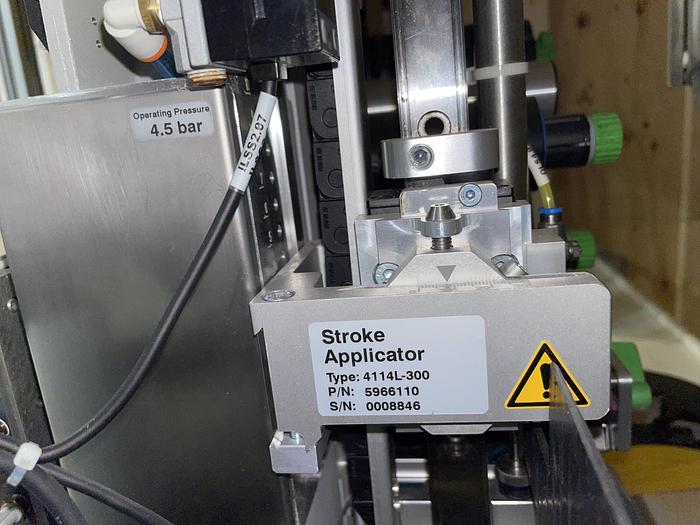

LABELING SYSTEM

FOB TRUCK, IMLLAY CITY, MI, 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
