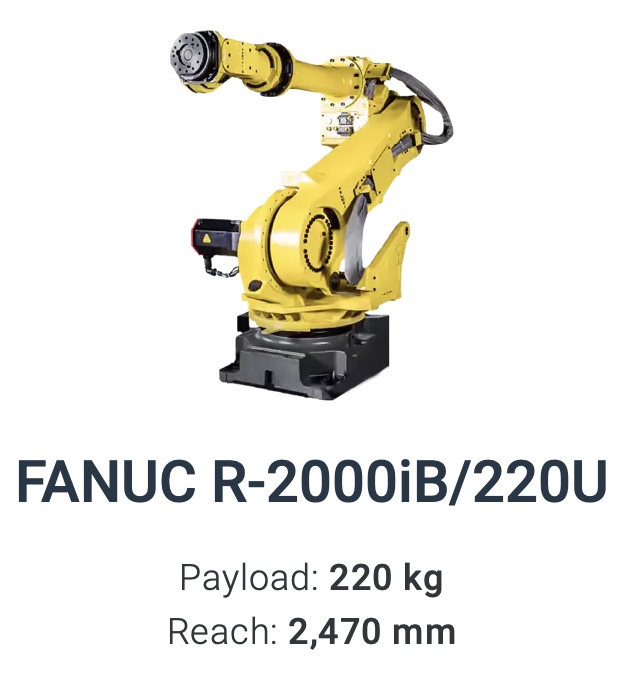

The Fanuc R‑2000iB/220U robot is a six-axis inverted robot used for a variety of applications. At the wrist, the maximum load capacity is 220Kg with a horizontal reach of 2470mm. The Fanuc R2000iB/220U runs on the Fanuc R‑30iB platform and the robot can be fixed with vision, bin picking functions, and diagnostic functions with the controller.
APPLICATIONS:
Spot Welding Robots
Dispensing Robots
Machine Loading Robots
Part Transfer Robots
Assembly Robots
Material Removal Robots
ROBOT SPECIFICATIONS:
PAYLOAD 220 kg
REACH 2470 mm
AXES 6
REPEATABILITY 0.3 mm
MASS 1150 kg
STRUCTURE Articulated
MOUNTING Floor, Inverted
ROBOT MOTION SPEED:
J1 95 °/s (1.66 rad/s)
J2 85 °/s (1.48 rad/s)
J3 95 °/s (1.66 rad/s)
J4 120 °/s (2.09 rad/s)
J5 120 °/s (2.09 rad/s)
J6 190 °/s (3.32 rad/s)

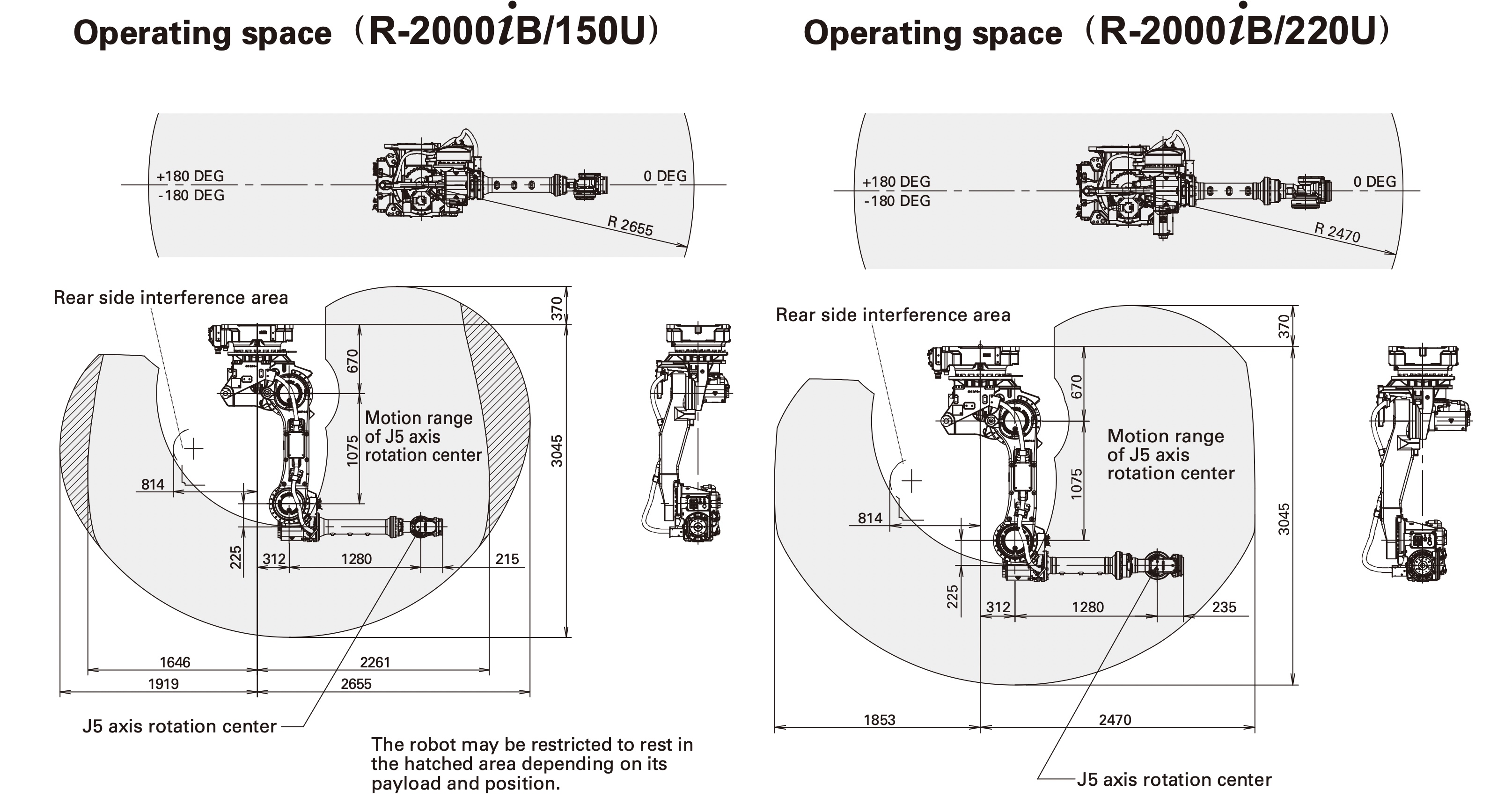

ROBOT MOTION RANGE:
J1 ±360°
J2 ±136°
J3 ±362°
J4 ±720°
J5 ±250°
J6 ±720°
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
