APPLICATIONS: Spot Welding Robots, Material Handling Robots, Material Removal Robots, Welding Automation Robots

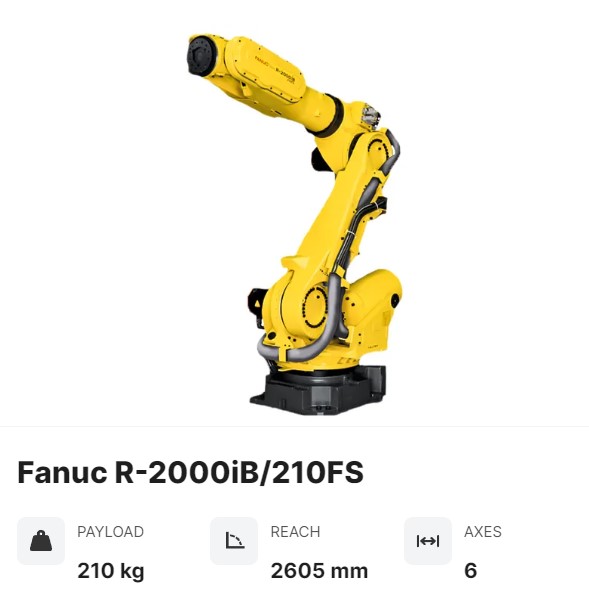

The Fanuc R‑2000iB line are heavy-duty robots that are able to bring a variety of advantages to manufacturers, depending on the model. The Fanuc R‑2000iB/210FS is not only high in flexibility, reach, and payload, but it is also a robot that is able to cut down on maintenance costs over the life of the robot. With high wrist moments and inertia, the R‑2000iB/210FS can handle almost any gripper or welding torch, improving cycle times for a variety of applications. With a hollow wrist and internally-routed cabling, the Fanuc R2000iB/210FS is able to decrease the amount of maintenance needed by protecting cables effectively from wear and tear. The internal routing gives manufacturers more flexibility when planning system layout, because swinging and snagging cables are no longer an issue. Plus, the internal Fanuc dress out package makes the robot easier to maintain and operate over its years on the production line.
The Fanuc R-2000iB/210FS runs on the Fanuc R-30iB Controller. You can find a robot for almost any use in the Fanuc R-2000 Series of robots.

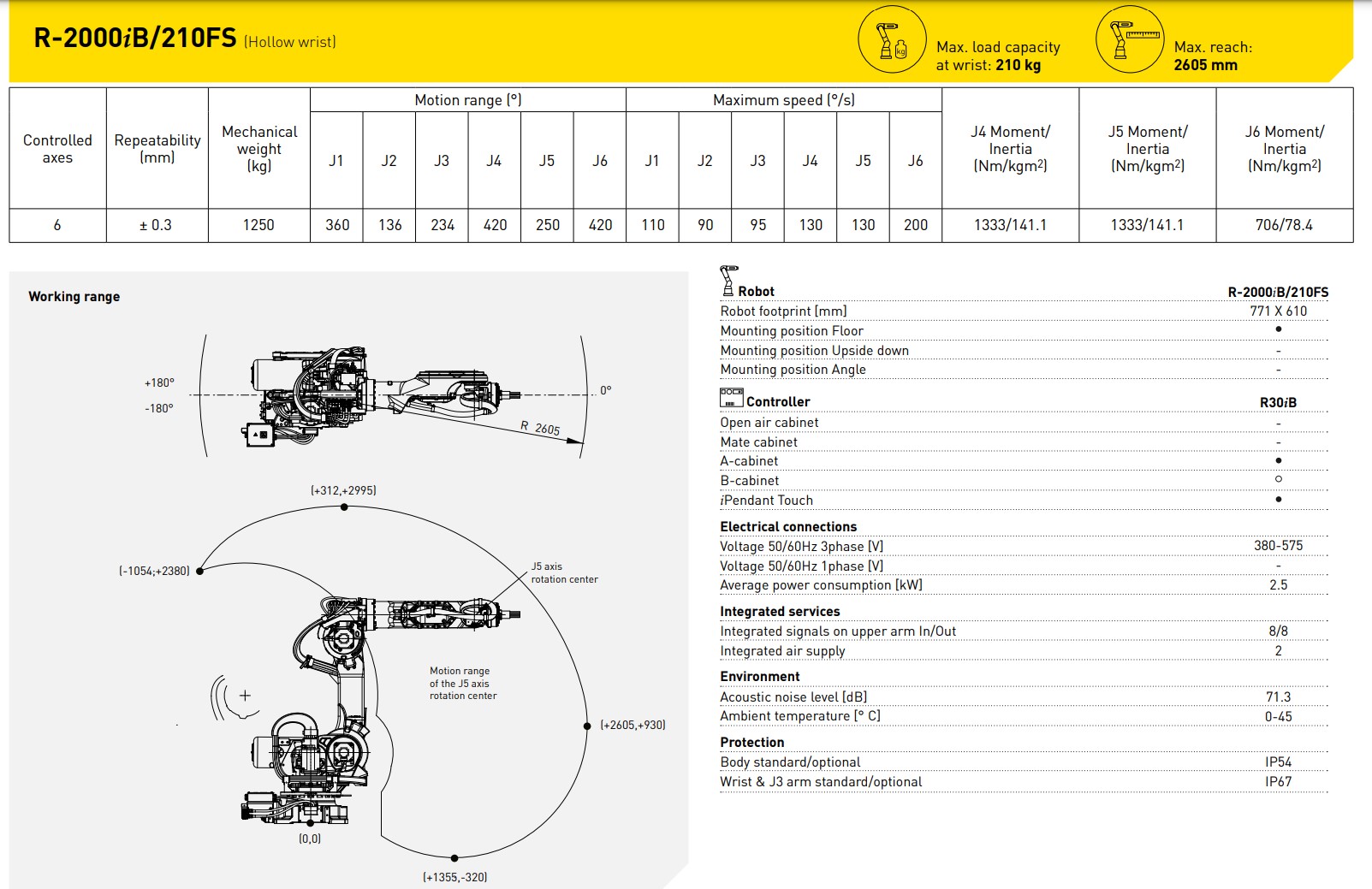

Robot Specifications:
PAYLOAD 210 kg
REACH 2605 mm
AXES 6
REPEATABILITY 0.3 mm
MASS 1250 kg
STRUCTURE Articulated
MOUNTING Floor
Robot Motion Speed:
J1 110 °/s (1.92 rad/s)
J2 90 °/s (1.57 rad/s)
J3 95 °/s (1.66 rad/s)
J4 130 °/s (2.27 rad/s)
J5 130 °/s (2.27 rad/s)
J6 200 °/s (3.49 rad/s)
Robot Motion Range:
J1 ±360°
J2 ±136°
J3 ±234°
J4 ±420°
J5 ±250°
J6 ±420°
Robot Controllers:
Fanuc R-30iB
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
