PAYLOAD 210 KG
REACH 2655 MM
AXIS 6
APPLICATIONS: Resistance Welding Robots, Spot Welding Robots, Injection Molding Robots, Machine Loading Robots, Machine Tending Robots, Material Handling Robots, Assembly Robots, Fiberglass Cutting Robots
The Fanuc R‑2000iB/210F is a floor-mounted robot with an extremely high payload of 210kg (462lbs), 2655mm horizontal reach, and six degrees of freedom. It is great for a variety of applications, such as material handling, welding, dispensing, and material removal. The R‑2000iB/210F has a slim arm and wrist which helps it fit into confined and hard to reach places, giving manufacturers even more versatility when planning their applications. This also helps to reduce interference with system peripherals. Despite the slim arm, the R‑2000iB/210F has a very large work envelope with the ability to reach overhead and behind. You can find this robot running on both the Fanuc R30iA or R30iB robot controller platforms depending on date of mfg. The R-2000iB/210F is one of the most popular robots Fanuc has ever produced.
Robot Specifications:
PAYLOAD 210 kg
REACH 2655 mm
AXES 6
REPEATABILITY 0.3 mm
MASS 1240 kg
STRUCTURE Articulated
MOUNTING Floor
Robot Motion Speed:
J1 95 °/s (1.66 rad/s)
J2 90 °/s (1.57 rad/s)
J3 95 °/s (1.66 rad/s)
J4 120 °/s (2.09 rad/s)
J5 120 °/s (2.09 rad/s)
J6 190 °/s (3.32 rad/s)

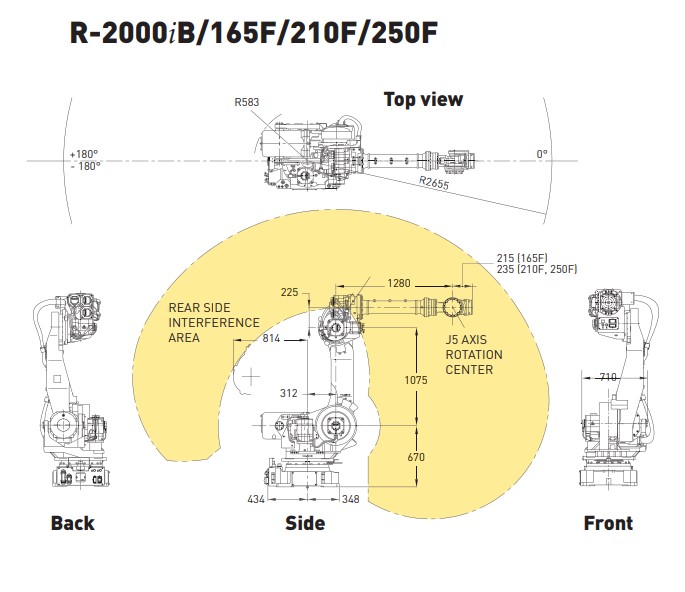

Robot Motion Range:
J1 ±180°
J2 +75° - 60°
J3 +230° - 132°
J4 ±360°
J5 ±125°
J6 ±360°
Robot Controllers:
Fanuc RJ3iC
Fanuc R30iA
Fanuc R30iB
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
