The Fanuc R‑2000iB/200R is a rack-mount robot with a high payload capacity. This robot is known for its wide working envelope. It can be equipped with a Fanuc R-30iA or R30iB Controller depending on date of manufacture. The robot can be mounted on a robot riser platform or on a robot gantry system. It has the ability to reach below its own base. Incredible speed, Accuracy, Durability and Reach. You will find this robot in many different industrial sectors performing a variety of applications.
Robot Specifications:
PAYLOAD 200 kg

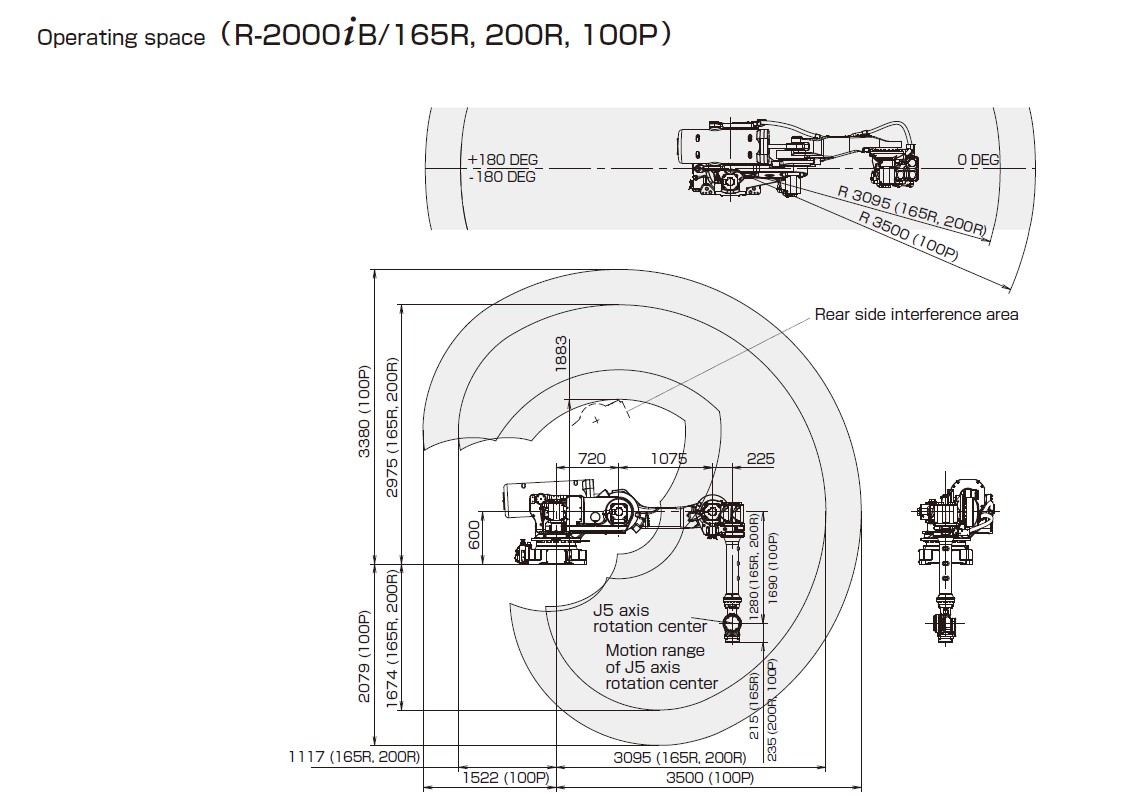

REACH 3095 mm
AXES 6
REPEATABILITY 0.3 mm
MASS 1540 kg
STRUCTURE Articulated
MOUNTING Rack
Robot Motion Speed:
J1 90 °/s (1.57 rad/s)
J2 85 °/s (1.48 rad/s)
J3 95 °/s (1.66 rad/s)
J4 120 °/s (2.09 rad/s)
J5 120 °/s (2.09 rad/s)
J6 190 °/s (3.32 rad/s)
Robot Motion Range:
J1 ±180°
J2 +65° - 120°
J3 +270° - 95°
J4 ±360°
J5 ±125°
J6 ±360°
Robot Controllers:
Fanuc R-30iA
Fanuc R-30iB
Robot Applications:
Press Tending
Gantry Robots
Material Handling
Machine Tending
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.
