The Fanuc R-2000iB/175L offers the best of both worlds - a long reach and high payload capacity. This Fanuc R2000iB/175L Runs on the Fanuc R30iA or R-30iB controller platforms and offers maximum versatility for challenging applications. With 3.1 Meter Reach this robot is flexible for a wide variety of applications.

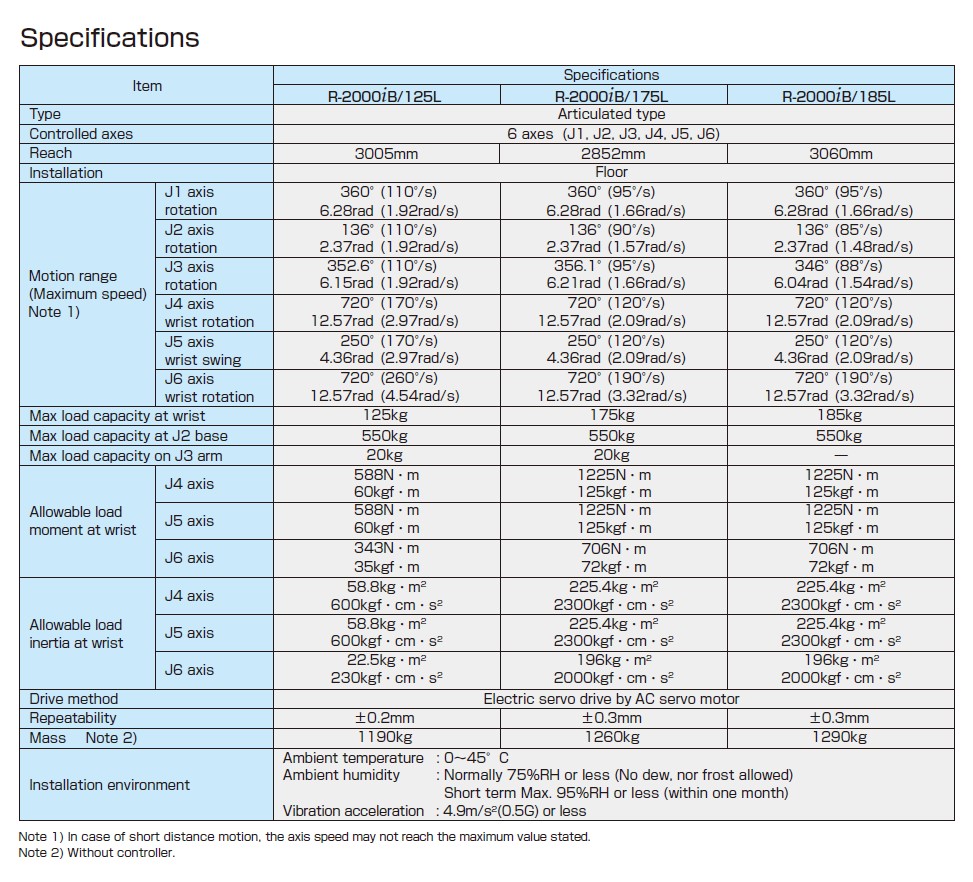

Robot Specifications:
Axes: 6
Payload: 175kg

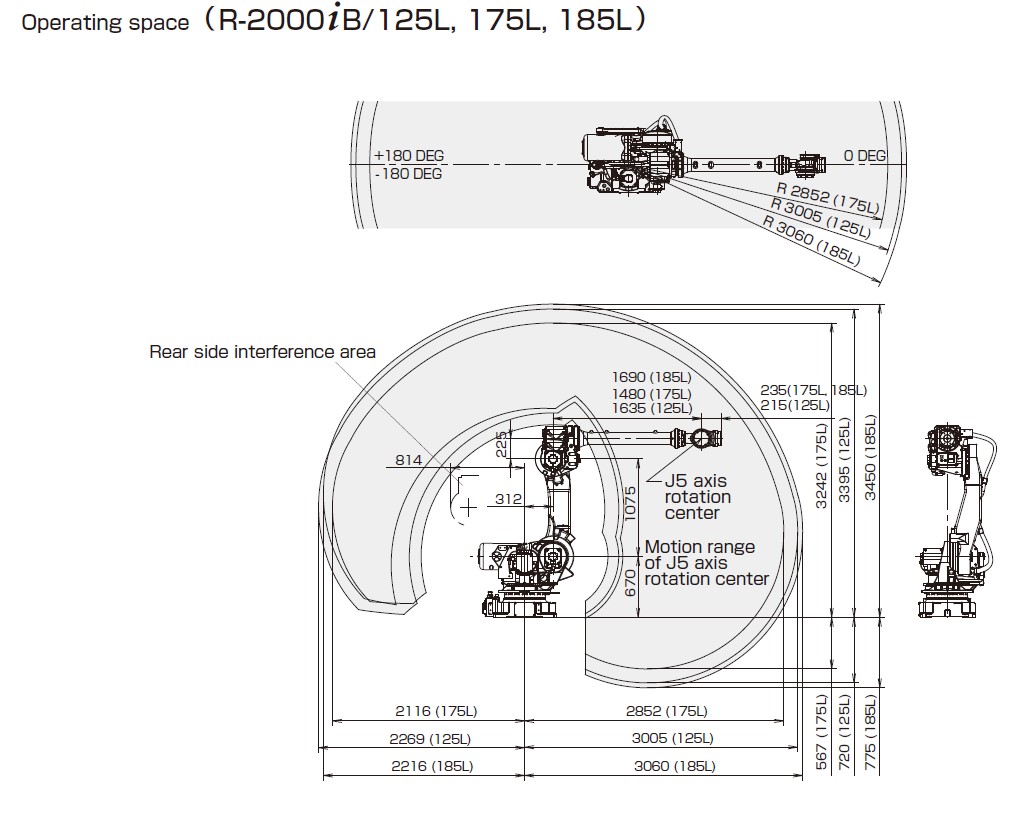

H-Reach: 2852mm
Repeatability: ±0.3mm
Robot Mass: 1260kg
Structure: Articulated
Mounting: Floor
Robot Motion Speed:
J1 95 °/s (1.66 rad/s)
J2 90 °/s (1.57 rad/s)
J3 95 °/s (1.66 rad/s)
J4 120 °/s (2.09 rad/s)
J5 120 °/s (2.09 rad/s)
J6 190 °/s (3.32 rad/s)
Robot Motion Range:
J1 ±360°
J2 ±136°
J3 ±356°
J4 ±720°
J5 ±250°
J6 ±720°
Applications:
Spot Welding Robots
Injection Molding Robots
Machine Loading Robots
Machine Tending Robots
Material Handling Robots
Palletizing Robots
Pick and Place Robots
Fiberglass Cutting Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
