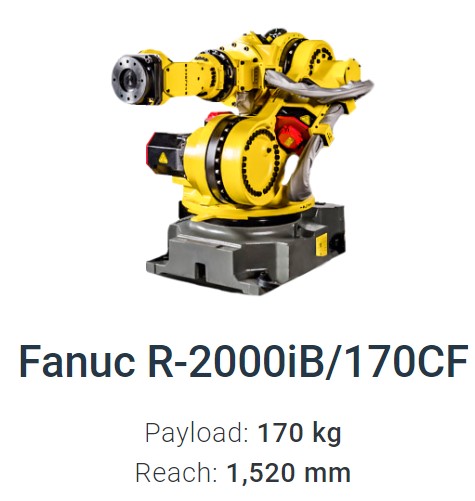

The Fanuc R-2000iB/170CF robot is small but strong. This robot can be mounted on the floor or ceiling and can handle payloads up to 170kg. Perfect for almost all kinds of material handling, as well as spot welding and material removal, the R-2000iB/170C robot also offers a small footprint, six axes, and an IP67 rated wrist/forearm. The Robot can Run on the Fanuc R-30iA or R-30iB Controller Platform.
Robot Specifications:
Axes: 6
Payload: 170kg
H-Reach: 1520mm
Repeatability: ±0.15mm
Robot Mass: 800kg
Structure: Articulated
Mounting: Floor, Inverted
Robot Motion Speed:
J1 110 °/s (1.92 rad/s)
J2 110 °/s (1.92 rad/s)
J3 110 °/s (1.92 rad/s)
J4 150 °/s (2.62 rad/s)
J5 150 °/s (2.62 rad/s)
J6 220 °/s (3.84 rad/s)

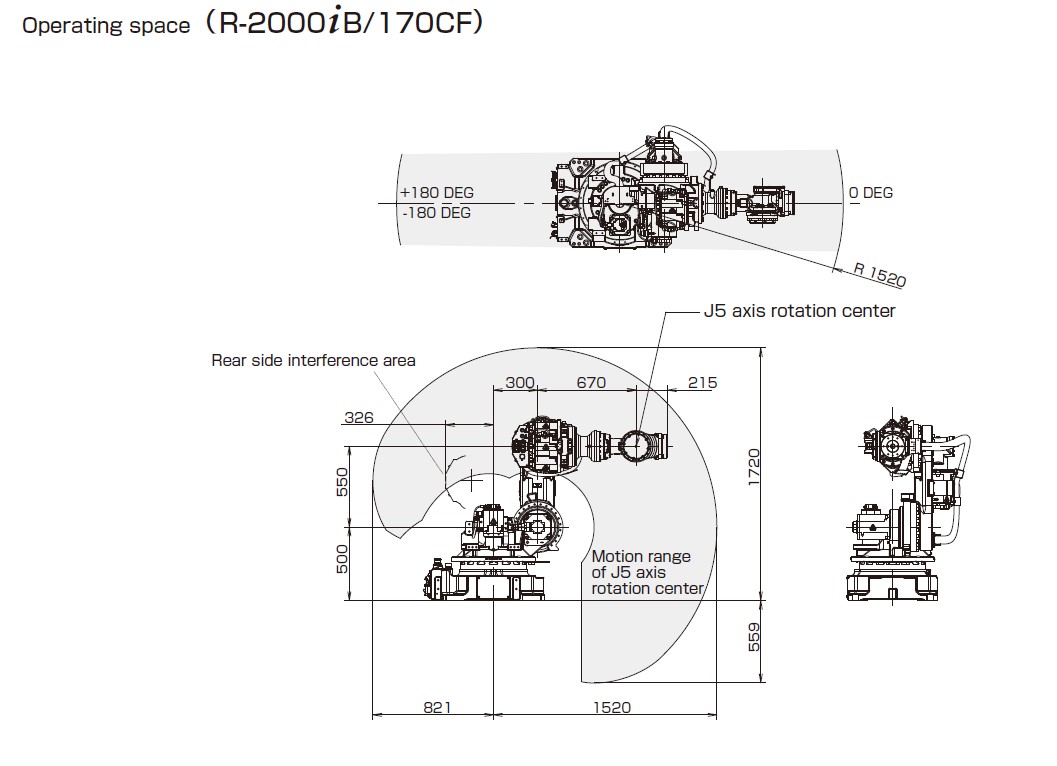

Robot Motion Range:
J1 ±360°
J2 ±190°
J3 ±332°
J4 ±720°
J5 ±250°
J6 ±720°
Applications:
Dispensing Robots
Injection Molding Robots
Machine Loading Robots
Machine Tending Robots
Material Handling Robots
Packaging Robots
Palletizing Robots
Appliance Automation Robots
Fiberglass Cutting Robots
Material Removal Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
