The Fanuc R-2000iB/165R is a heavy payload, rack-mount robot that is ideal for shelf installations. A slim wrist design and six-axes of motion help make it easy for the used R2000iB/165R R-30iA to operate in confined spaces. Featuring a 3095mm horizontal reach, the R-2000iB/165R can help to increase productivity in any shop. With a design that allows large wrist moments and inertia, this robot, whether new or used, is perfectly suited to face all of a manufacturer's heavy payload challenges. By choosing a robot that can handle a 165kg wrist payload, as well as a 550kg base payload, a manufacturer will have a lot of versatility when it comes to moving and welding heavier objects during production.
Robot Specifications:
Axes: 6
Payload: 165kg

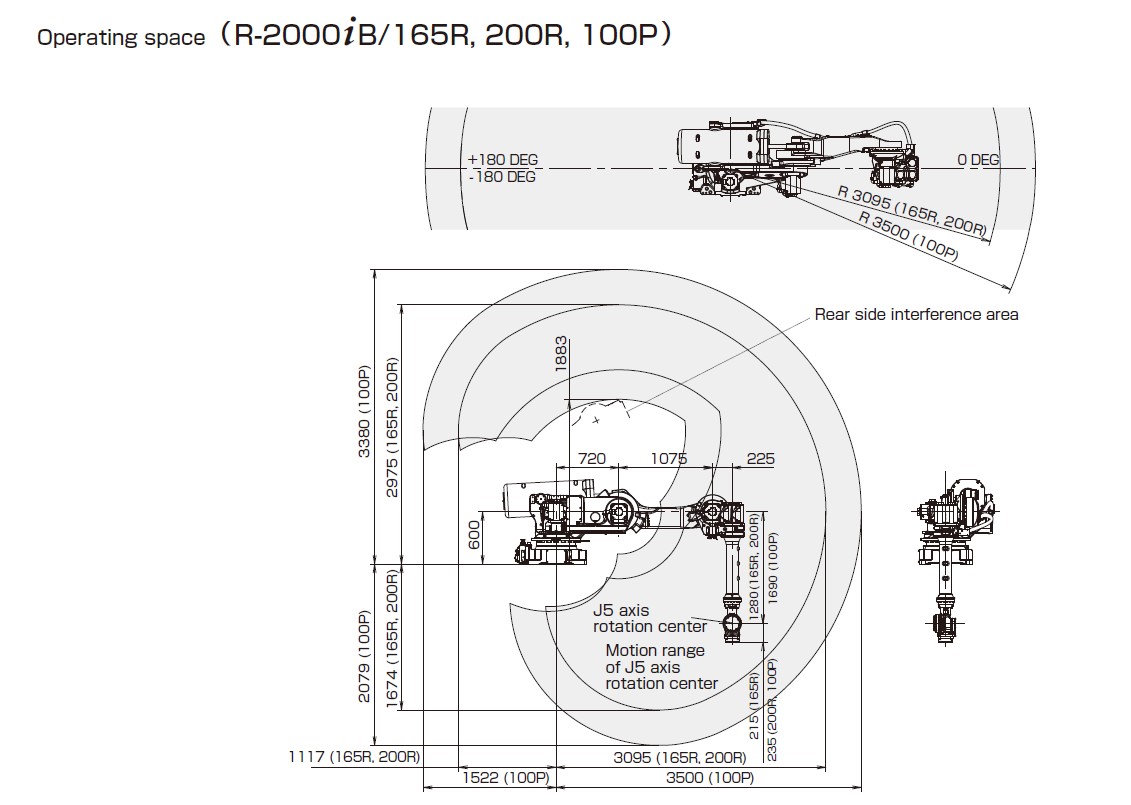

H-Reach: 3095mm
Repeatability: ±0.3mm
Robot Mass: 1480kg
Structure: Articulated
Mounting: Rack
Robot Motion Speed:
J1 110 °/s (1.92 rad/s)
J2 100 °/s (1.75 rad/s)
J3 110 °/s (1.92 rad/s)
J4 150 °/s (2.62 rad/s)
J5 150 °/s (2.62 rad/s)
J6 220 °/s (3.84 rad/s)
Robot Motion Range:
J1 ±180°
J2 +65° - 120°
J3 +270° - 95°
J4 ±360°
J5 ±125°
J6 ±360°
Applications:
Injection Molding Robots
Machine Loading Robots
Machine Tending Robots
Material Handling Robots
Palletizing Robots
Fiberglass Cutting Robots
Pick and Place Robots
Spot Welding Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
