With its slim design and small footprint, this model saves precious floor space and is ideally suited to compact cells. And thanks to its speed and 5th axis, it makes a great choice on robotic palletizing applications requiring high rates of throughput and maximum reliability.

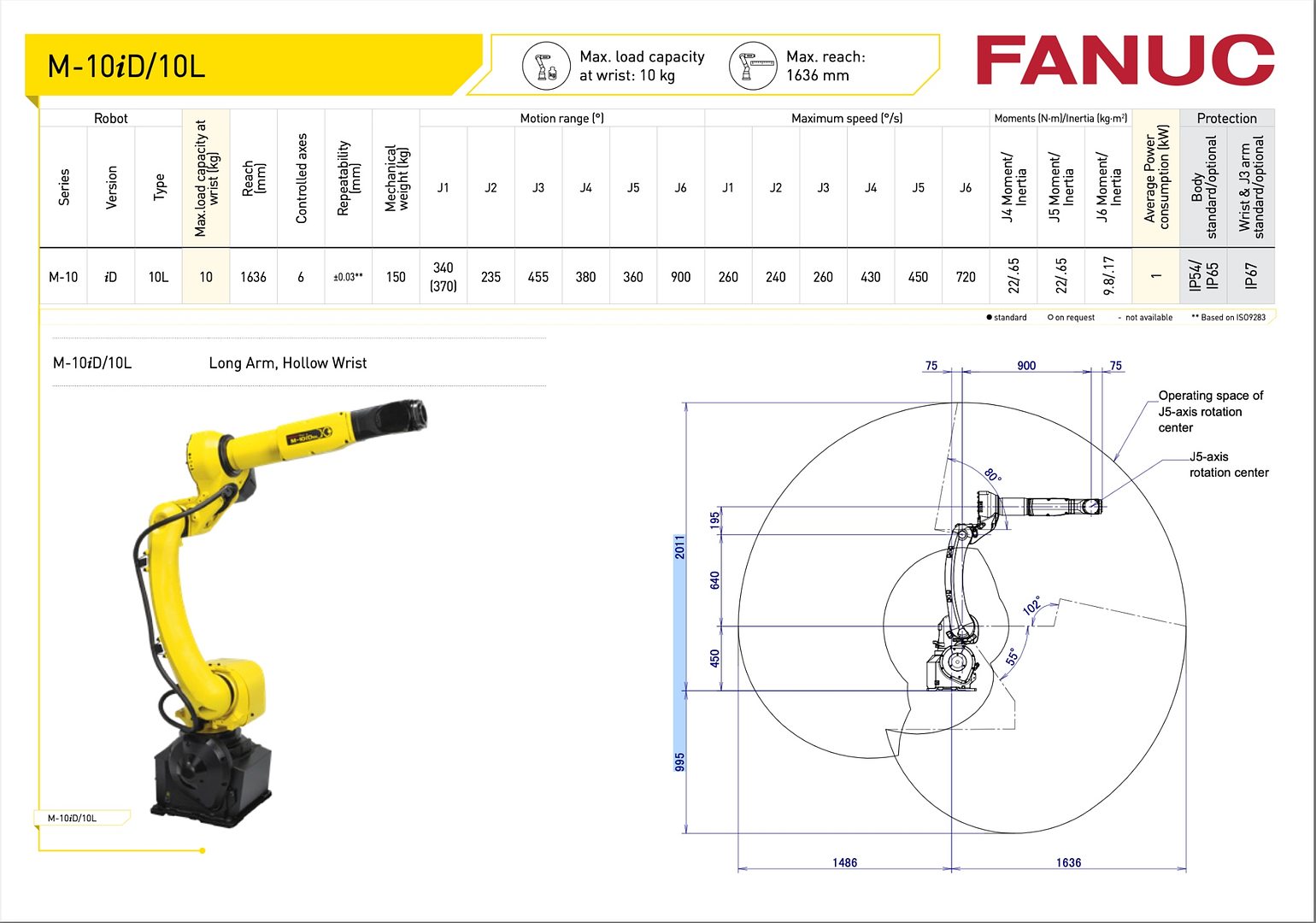

Robot Specifications:

Axes: 6

Payload: 10 kg

H-Reach: 1,636 mm

Repeatability: ±0.03 mm

Robot Mass: 150 kg

Structure: Articulated

Mounting: Floor

Robot Motion Speed:

J1 260 °/s

J2 240 °/s

J3 260 °/s

J4 430 °/s

J5 450 °/s

J6 720 °/s

Robot Motion Range:

J1 +340° - 370°

J2 ±235°

J3 ±455°

J4 ±380°

J5 +360°

J6 +900°

Equipped with:

Fanuc R-30iB plus controller

Fanuc robot connection cables

Fanuc color teach pendant with touch screen

Hollow wrist

Applications:

Material Handling Robots

Machine Tending Robots

Packaging Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
