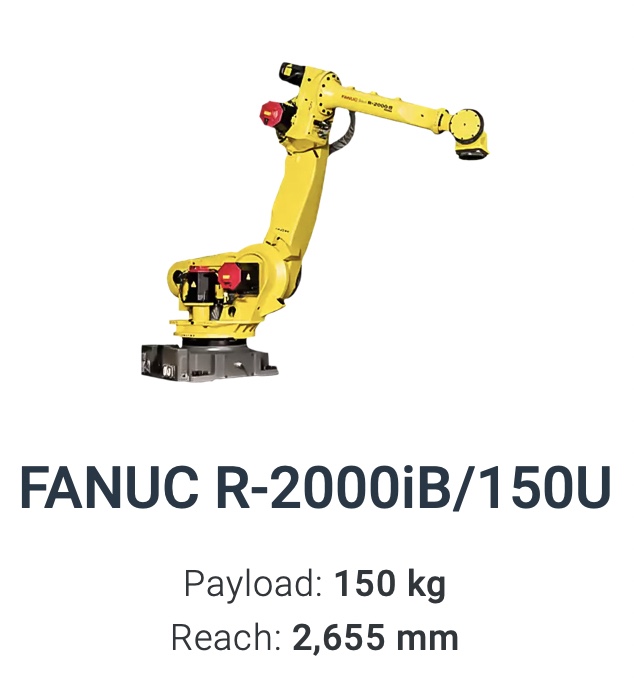

The Fanuc R-2000iB/150U is a ceiling mount robot used in a variety of applications and runs on the Fanuc R-30iA or R-30iB Controller. The ceiling mounted Fanuc R-2000iB/150U robot has a maximum payload capacity of 150kg. A reach of 2655mm, a small footprint, and a large payload capacity make the Fanuc R2000iB/150U R30iA robot an excellent choice for performing many different material handling applications including machine tending, palletizing, press tending, pick and place, and injection molding.
Robot Specifications:
Axes: 6
Payload: 150kg
H-Reach: 2655mm
Repeatability: ±0.2mm
Robot Mass: 1070kg
Structure: Articulated
Mounting: Inverted
Robot Motion Speed:
J1 110 °/s (1.92 rad/s)
J2 85 °/s (1.48 rad/s)
J3 110 °/s (1.92 rad/s)
J4 150 °/s (2.62 rad/s)
J5 150 °/s (2.62 rad/s)
J6 220 °/s (3.84 rad/s)
Robot Motion Range:
J1 ±360°
J2 ±136°
J3 ±362°
J4 ±720°
J5 ±250°
J6±720°
Applications:
Dispensing Robots
Injection Molding Robots
Machine Loading Robots
Machine Tending Robots
Material Handling Robots
Packaging Robots
Palletizing Robots
Pick and Place Robots
Appliance Automation Robots
Fiberglass Cutting Robots
Fanuc Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.
