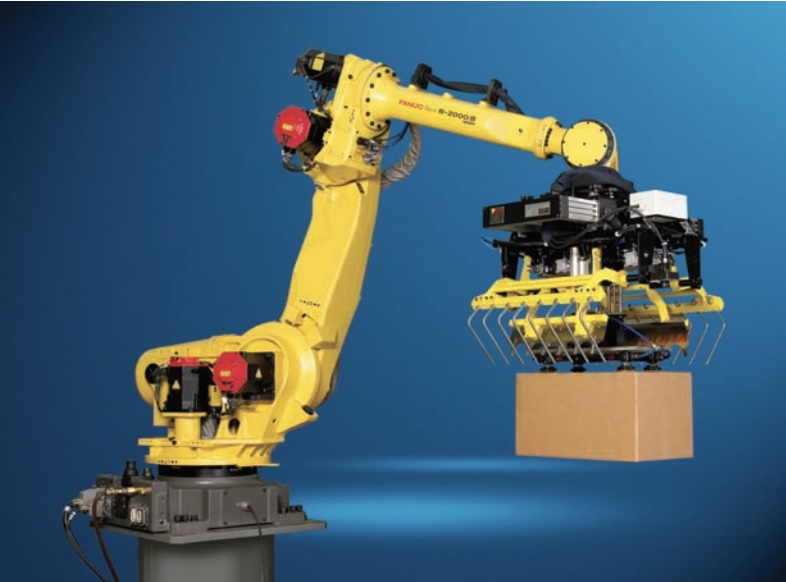

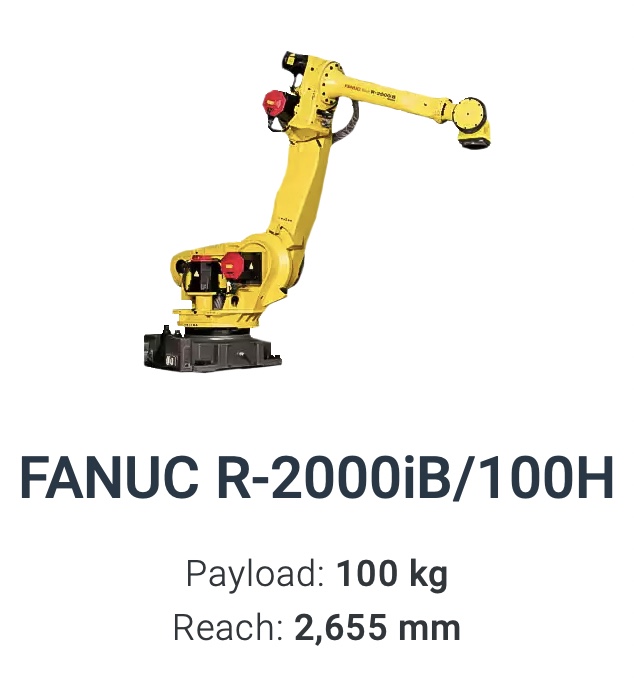

The five-axis Fanuc R-2000iB/100H has a reliable design in order to perform high-speed palletizing applications. The Fanuc R2000iB/100H RJ3iC/R30iA /R-30iB is recommended for case and bag palletizing, depalletizing, general applications, and material handling.
Robot Specifications:
Axes: 5
Payload: 100kg
H-Reach: 2655mm
Repeatability: ±0.2mm
Robot Mass: 1150kg
Structure: Articulated
Mounting: Floor
Robot Motion Speed:
J1 130 °/s (2.27 rad/s)
J2 130 °/s (2.27 rad/s)
J3 130 °/s (2.27 rad/s)
J4 170 °/s (2.97 rad/s)
J5 360 °/s (6.28 rad/s)

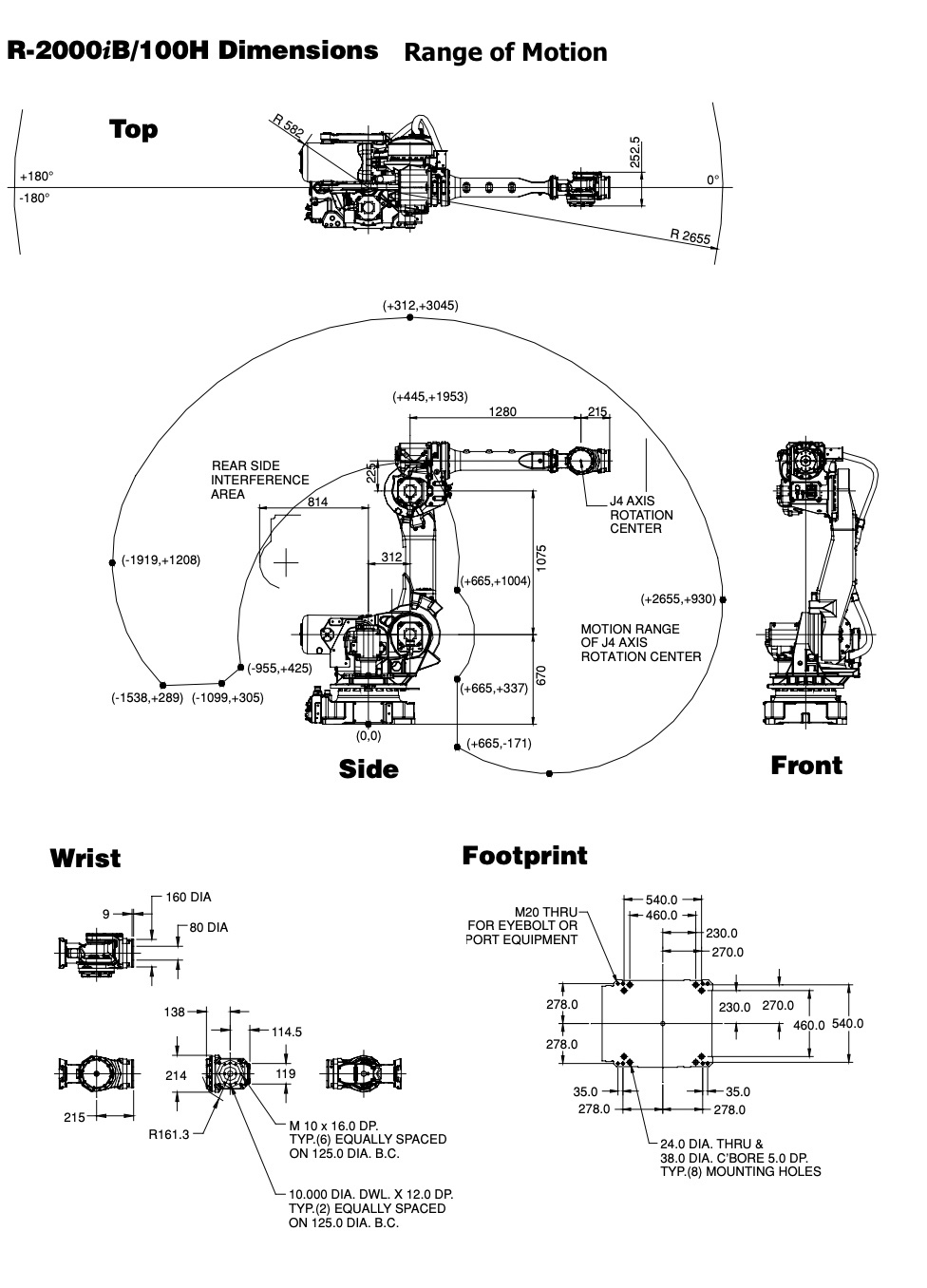

Robot Motion Range:
J1 ±360°
J2 ±136°
J3 ±362°
J4 ±250°
J5 ±720°
Applications:
Material Handling Robots
Palletizing Robots
Fiberglass Cutting Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
