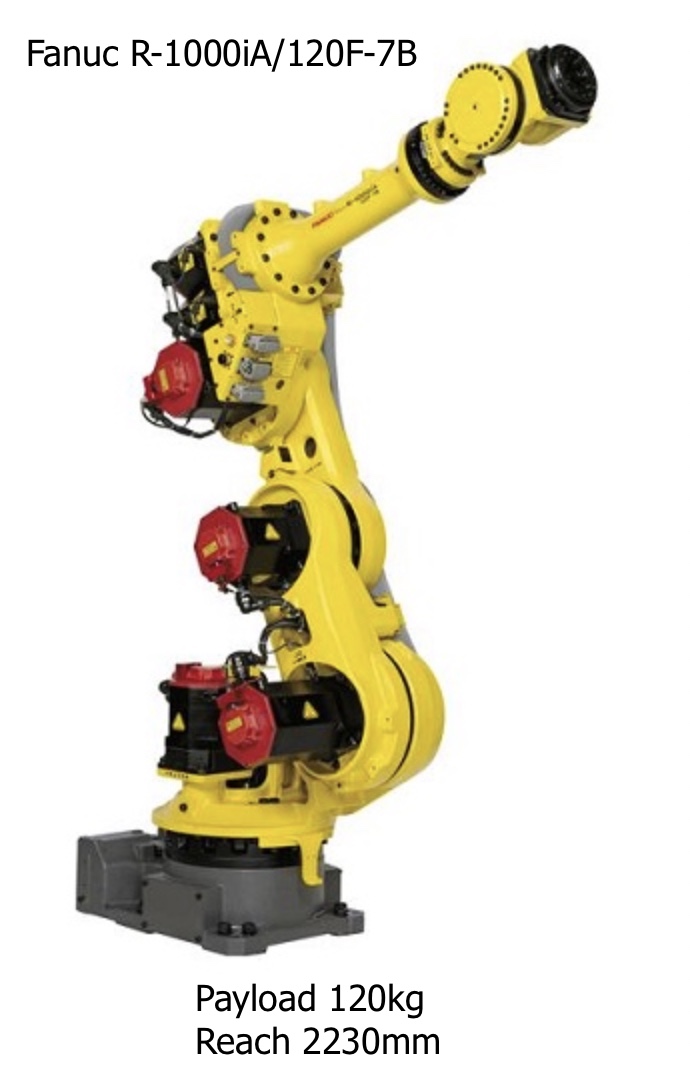

The Fanuc R-1000iA/120F-7B robot is a 7 Axis robot making even more flexible than a standard 6 axis robot. It runs on the Fanuc R30iB controller. Based on an added seventh axis in its second arm, the R-1000iA/120F-7B gains more agility, making it ideal for material handling and robotic spot welding. Nevertheless, its’ compact design enables it to fully operate within small work cells, reaching the same cycle times as the six-axis. Furthermore, the R-1000iA/120F-7B is strong, agile, and capable of handling payloads up to 120 kg while offering the possibility to fold back the arm without changing its gun positioning. This robot is perfect for handling heavy payloads and completing complex tasks.
Robot Specifications:
Axes: 7
Payload: 120kg
H-Reach: 2230mm
Repeatability: ±0.2mm
Robot Mass: 790kg
Structure: Articulated
Mounting: Floor, Inverted, Angle
Robot Motion Speed:
J1 130 °/s (2.27 rad/s)
J2 1130 °/s (19.72 rad/s)
J3 120 °/s (2.09 rad/s)
J4 170 °/s (2.97 rad/s)
J5 170 °/s (2.97 rad/s)
J6 250 °/s (4.36 rad/s)
Robot Motion Range:
J1 ±360°
J2 ±200°
J3 ±385°
J4 ±720°
J5 ±250°
J6 ±720°
Applications:
Spot Welding Robots
Machine Loading Robots
Machine Tending Robots
Material Handling Robots
Palletizing Robots
Fiberglass Cutting Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
