Payload 330kg
Reach 3203mm

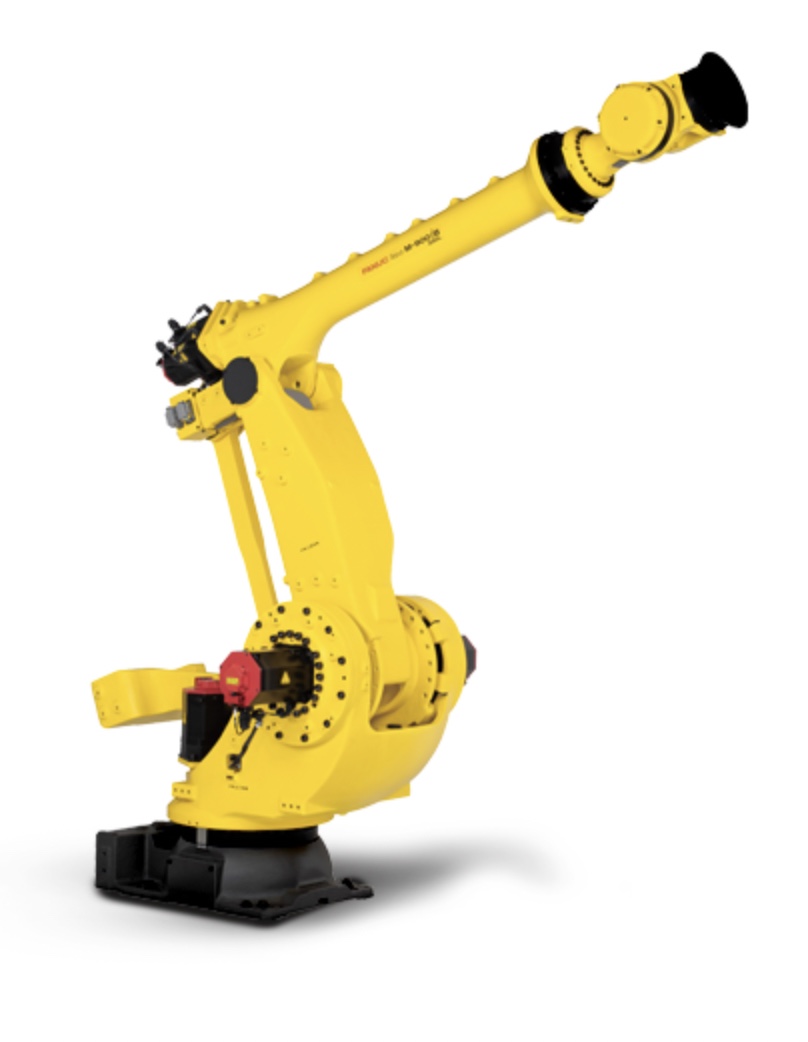

The Fanuc M-900iB/330L is another fantastic long reach addition to the line of Fanuc M-900 Series robots, it runs on the R-30iB Controller that comes in either the A or B size cabinet. Common Applications include Assembly, Spot Welding robots, Pick & Place robots, Packing robots, Palletizing robots, Part Transfer robots, Material Removal robots and even Dispensing robots. It can be mounted on the floor the ceiling or at an angle.

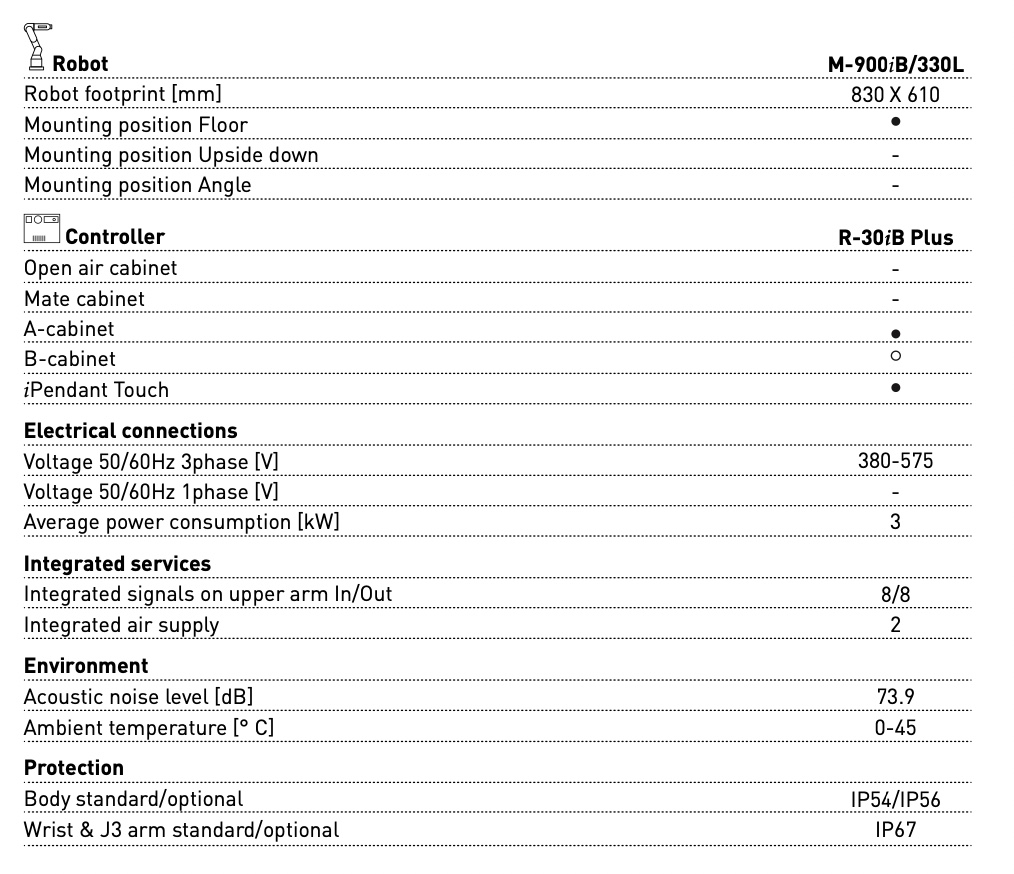

Robot Specifications:
Axes: 6
Payload: 330kg
H-Reach: 3203mm
Repeatability: ±0.1mm
Robot Mass: 1780kg
Structure: Articulated

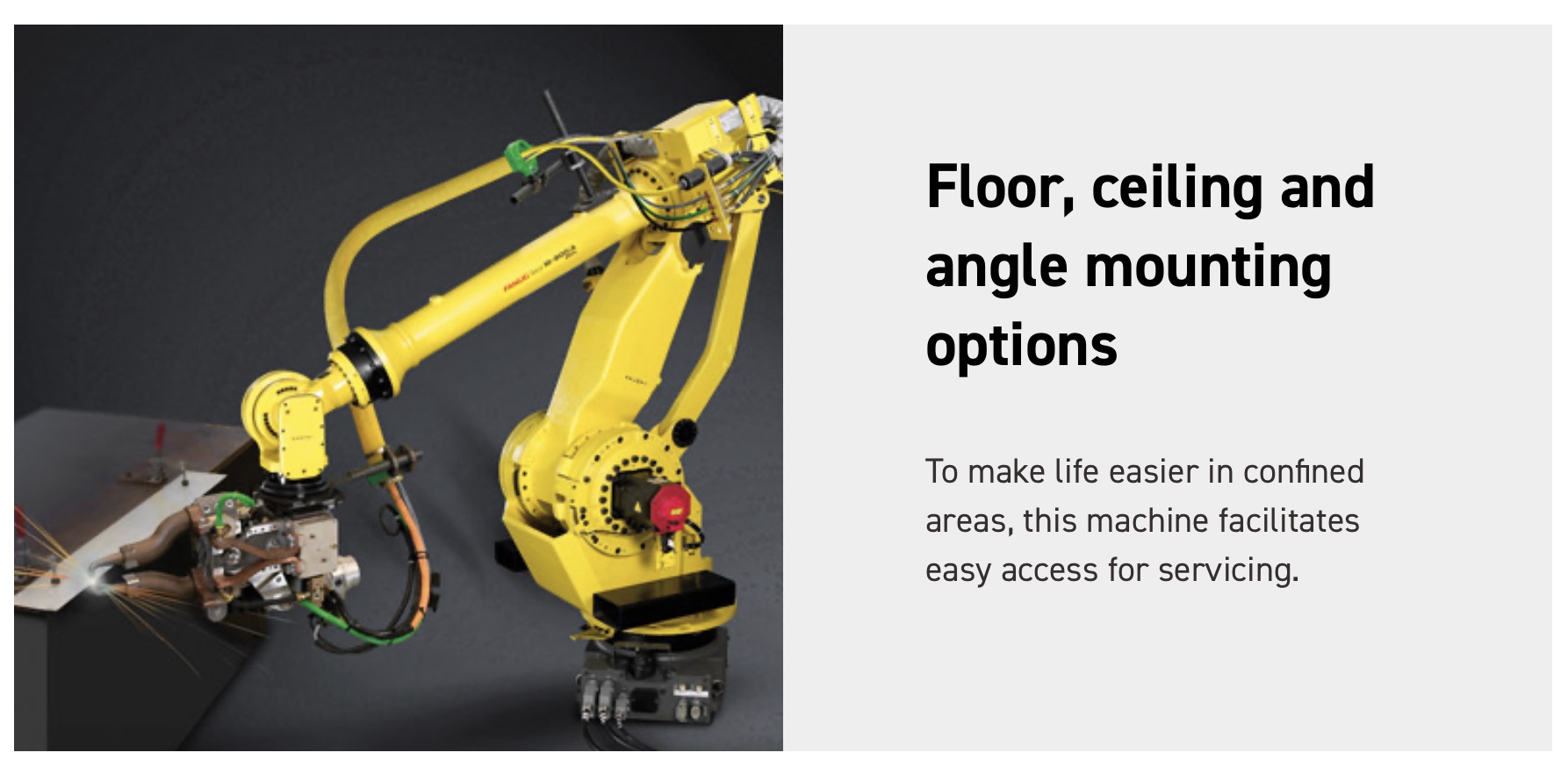

Mounting: Floor, Ceiling, Angle
Robot Motion Speed:
J1 100 °/s
J2 85 °/s
J3 85 °/s
J4 90 °/s
J5 85 °/s
J6 165 °/s

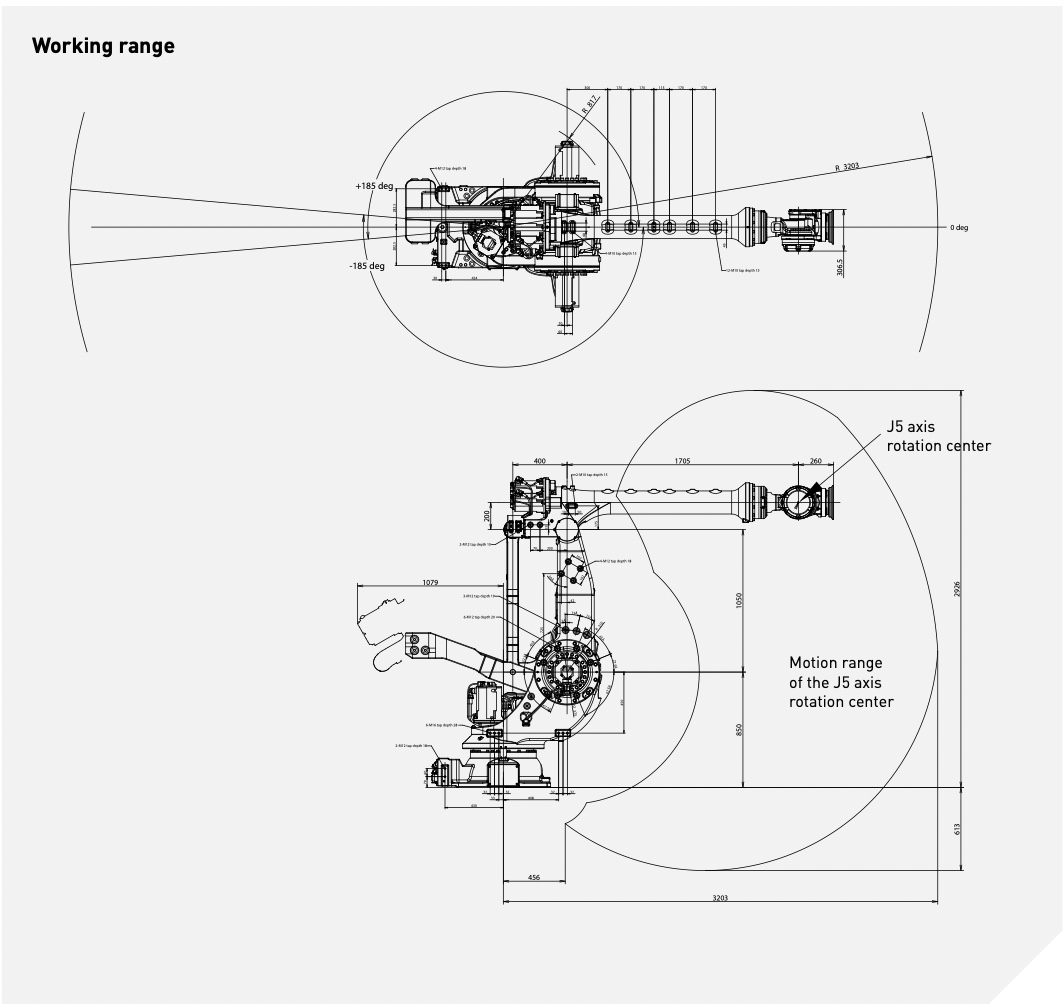

Robot Motion Range
J1 ±370°
J2 ±151°
J3 ±164°
J4 ±720°
J5 ±250°
J6 ±720°
Applications
Injection Molding Robots
Machine Loading Robots
Machine Tending Robots
Material Handling Robots
Palletizing Robots
Pick and Place Robots
Fiberglass Cutting Robots
Foundry Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
