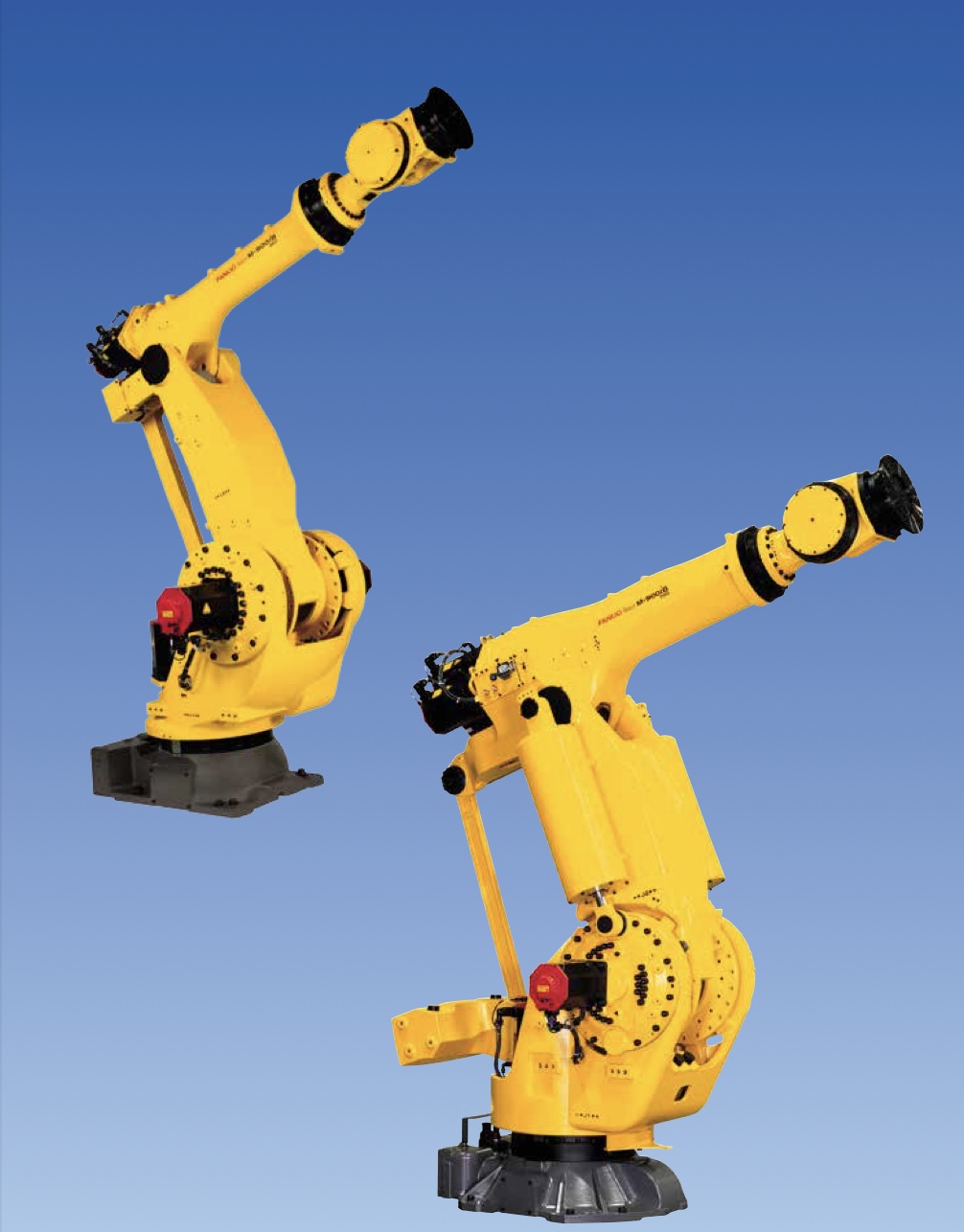

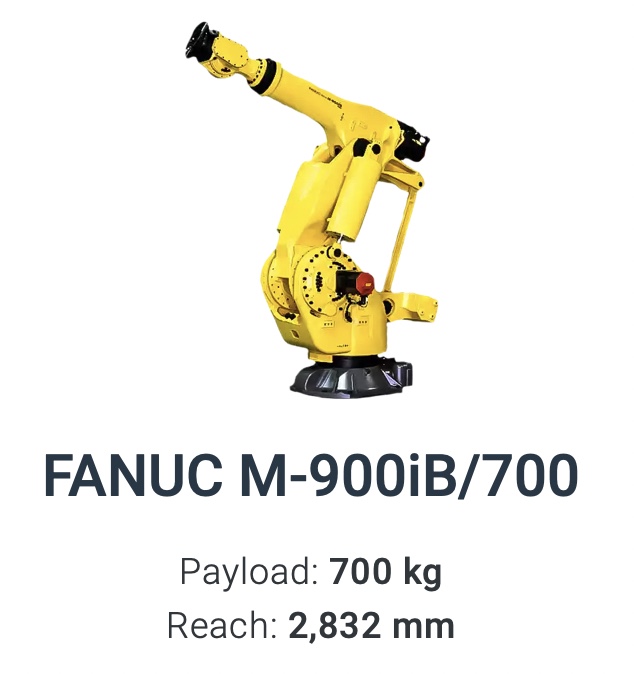

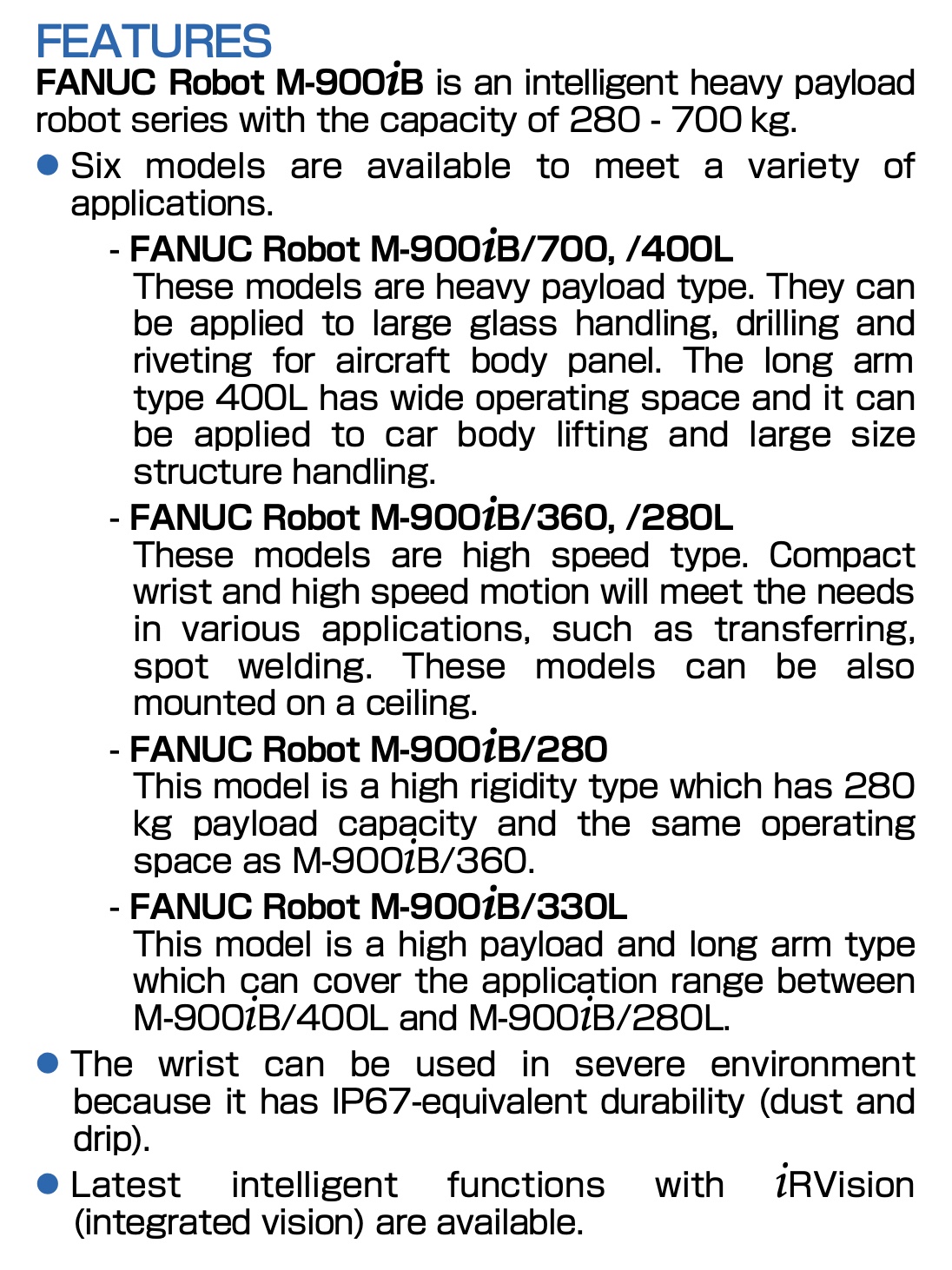

Big Beast Beauty the Fanuc M-900iB/700 is the newest in the Fanuc M-900 Class of robots and the heaviest payload of the variants, it runs on the Fanuc R30iB Controller platform. Oh yeah it's big it's bad and capable of handling some very heavy parts. With the wrist having an ip rating of 67 it can withstand some very harsh work environments.

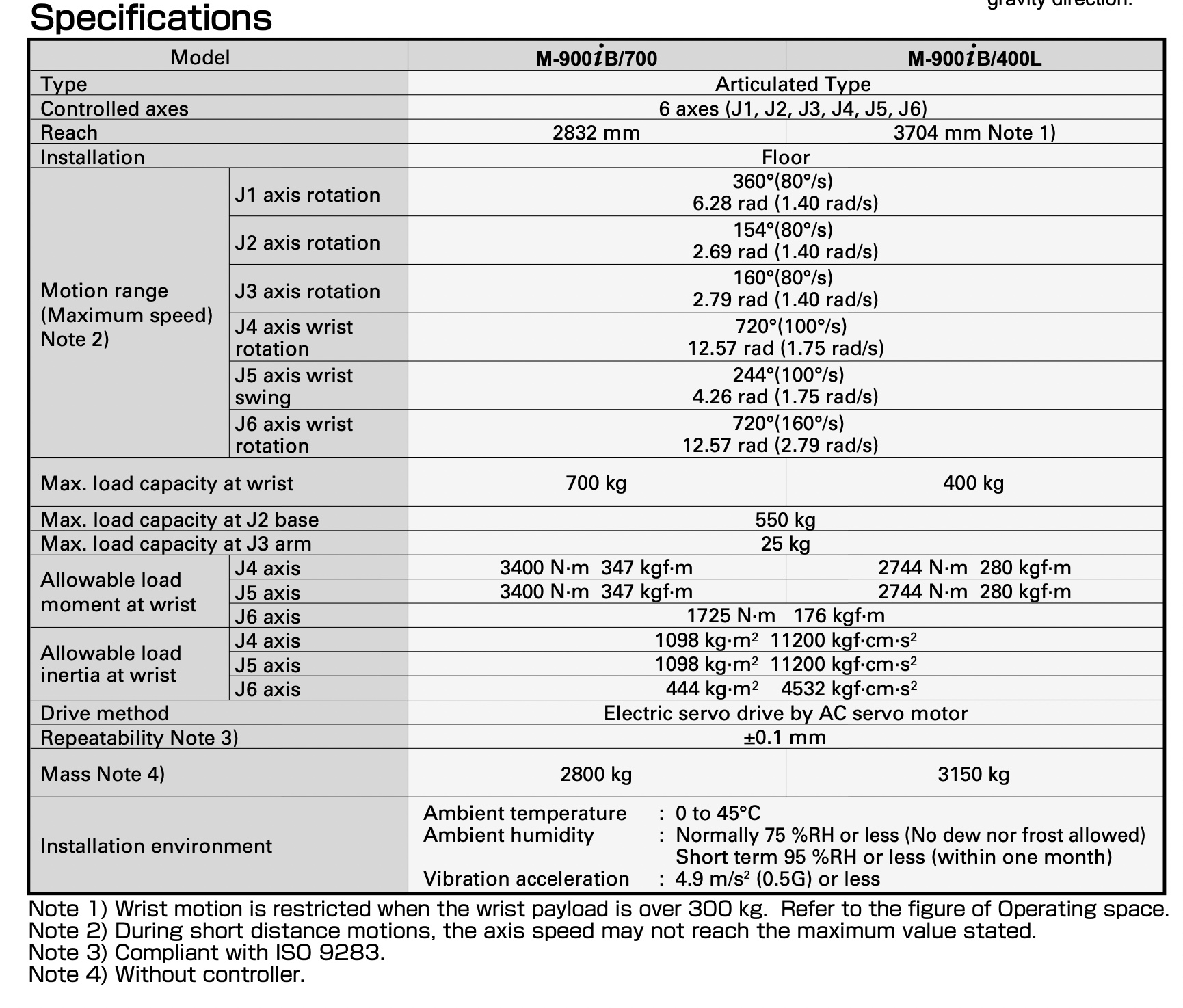

Robot Specifications:
Axes: 6
Payload: 700kg
H-Reach: 2832mm
Repeatability: ±0.3mm
Robot Mass: 2800kg
Structure: Articulated
Mounting: Floor
Robot Motion Speed:
J1 80 °/s (1.4 rad/s)
J2 80 °/s (1.4 rad/s)
J3 80 °/s (1.4 rad/s)
J4 100 °/s (1.75 rad/s)
J5 100 °/s (1.75 rad/s)
J6 160 °/s (2.79 rad/s)

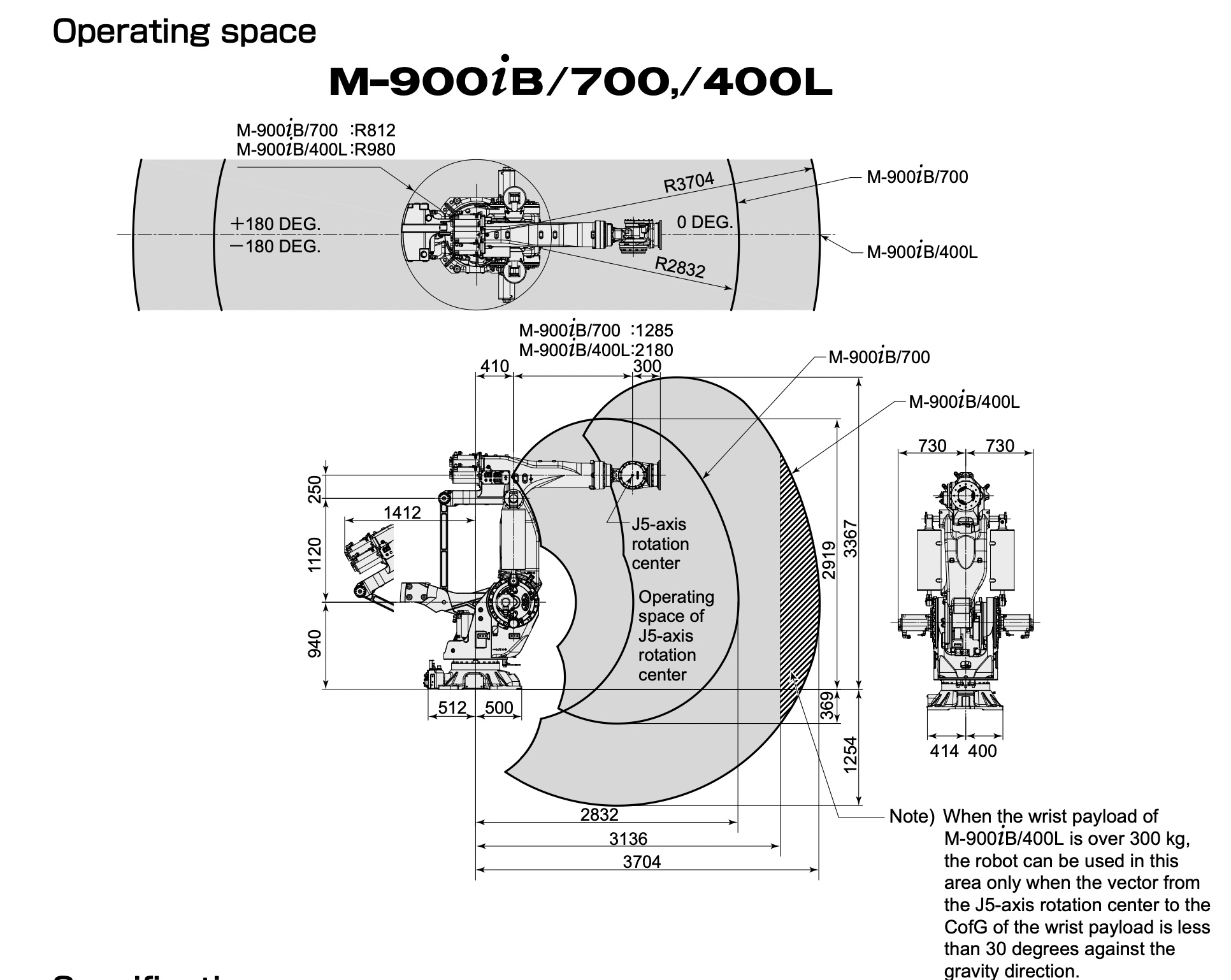

Robot Motion Range:
J1 ±360°
J2 ±154°
J3 ±160°
J4 ±720°
J5 ±244°
J6 ±720°
Applications:
Injection Molding Robots
Machine Loading Robots
Machine Tending Robots
Material Handling Robots
Palletizing Robots
Pick and Place Robots
Fiberglass Cutting Robots
Foundry Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
