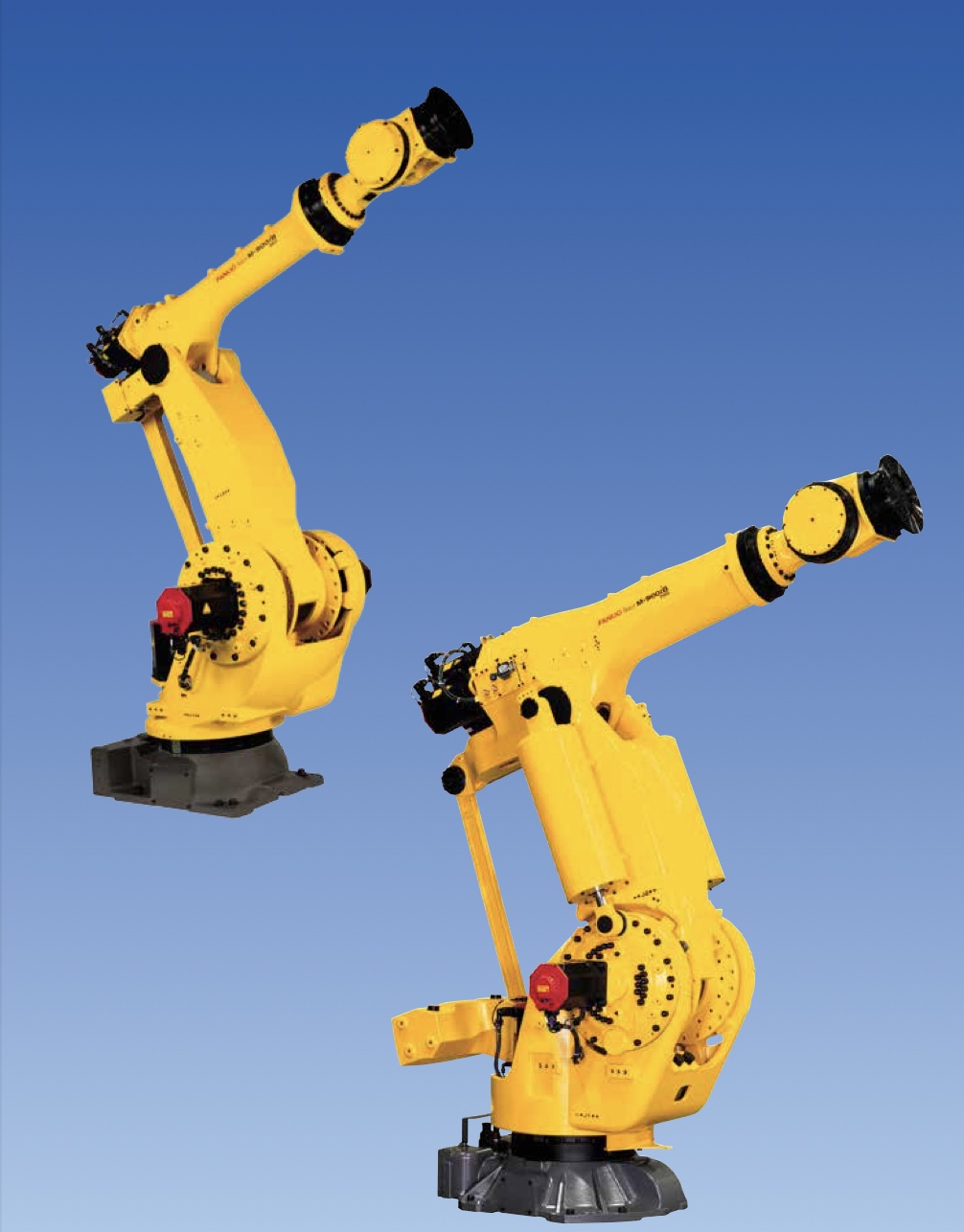

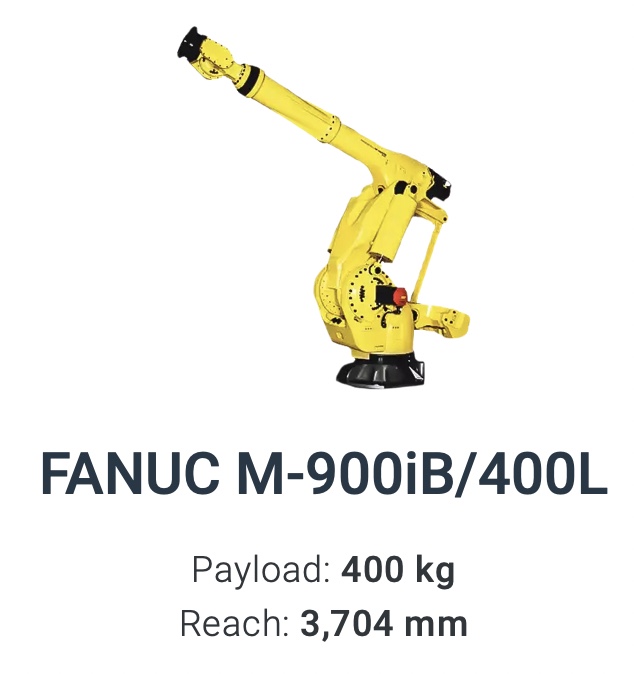

The Fanuc M-900iB/400L is the newest series in the M-900 Class. It's beautiful in design brute durability and has an incredible reach of 3,704mm. They run on the Fanuc R30iB Controller. Versatile it can deployed for a variety of applications its designed to handle large parts in assembly and palletizing operations.

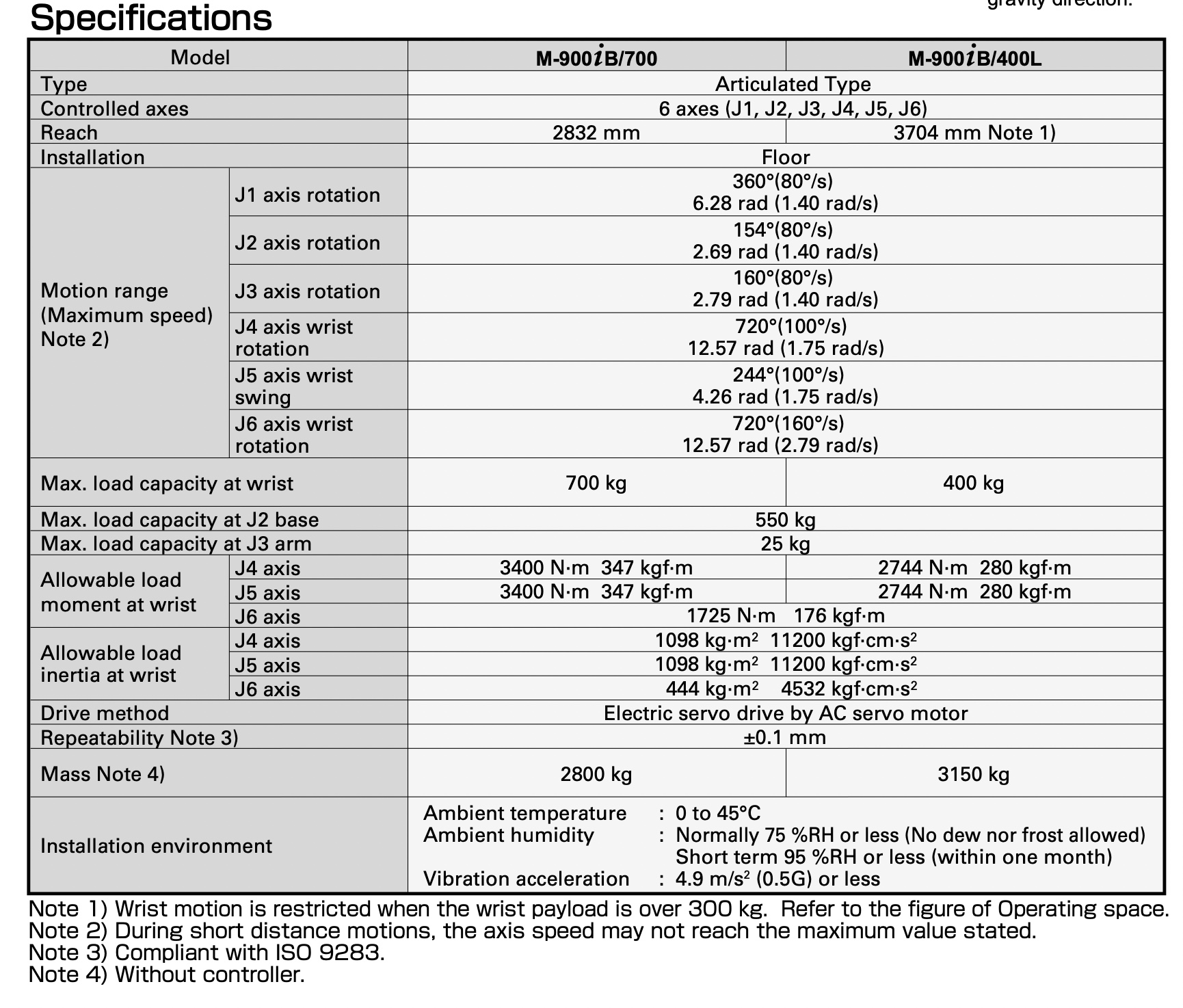

Robot Specifications:
Axes: 6
Payload: 400kg
H-Reach: 3704mm
Repeatability: ±0.5mm
Robot Mass: 3150kg
Structure: Articulated
Mounting: Floor
Robot Motion Speed:
J1 80 °/s (1.4 rad/s)
J2 80 °/s (1.4 rad/s)
J3 80 °/s (1.4 rad/s)
J4 100 °/s (1.75 rad/s)
J5 100 °/s (1.75 rad/s)
J6 160 °/s (2.79 rad/s)

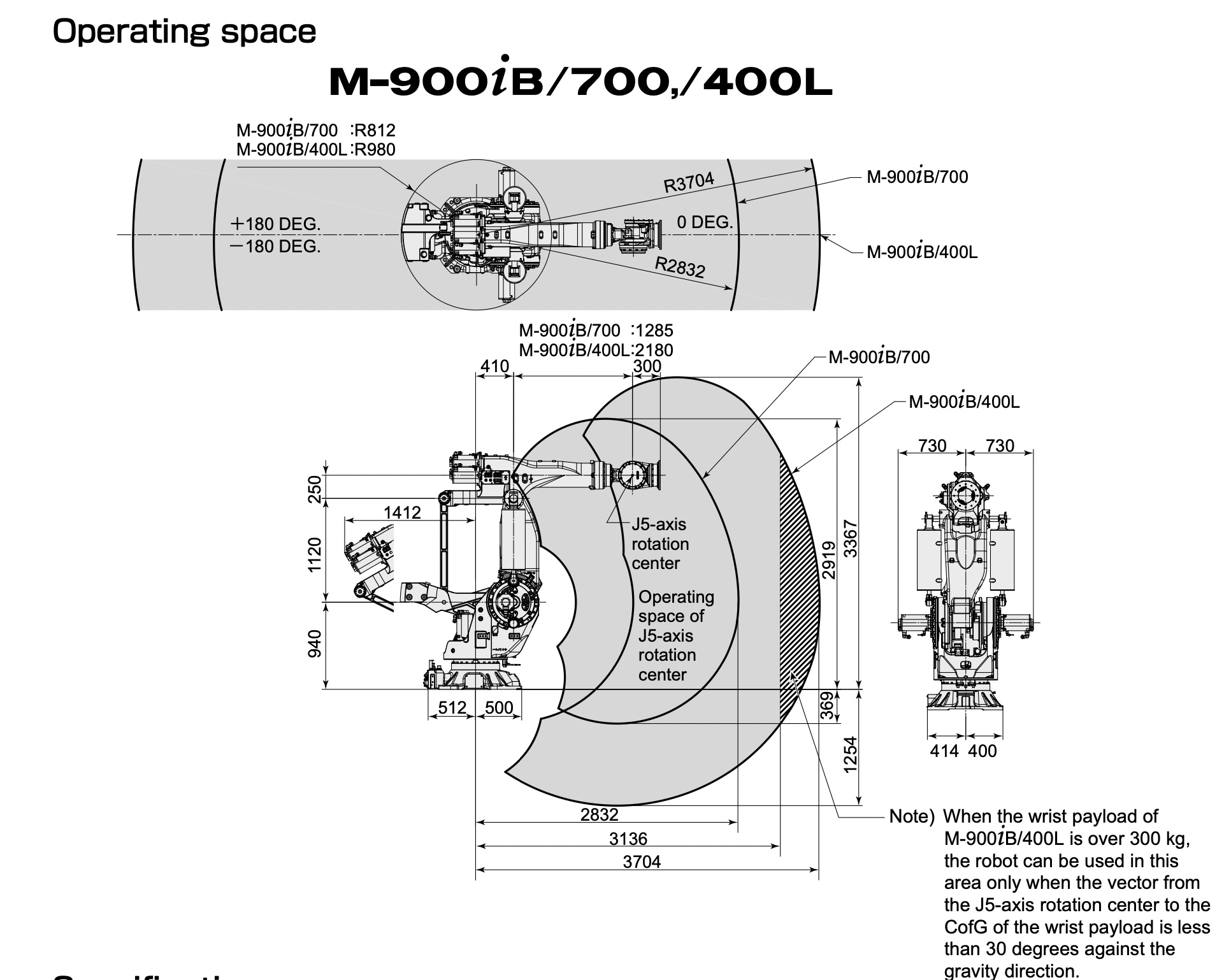

Robot Motion Range:
J1 ±360°
J2 ±154°
J3 ±160°
J4 ±720°
J5 ±244°
J6 ±720°
Applications:
Spot Welding Robots
Dispensing Robots
Machine Loading Robots
Machine Tending Robots
Packaging Robots
Palletizing Robots
Part Transfer Robots
Pick and Place Robots
Assembly Robots
