Payload 400kg

Reach 3625mm

The Fanuc M-900iA/400L Robot is part of the Fanuc M Series line up. It's a brute due to its combination of raw lift capacity of 400kg combined with a reach of 3625mm. We absolutely love this robot. Applications run the gamut and can service any number of Industries. Speed and Accuracy combine to make this a fantastic machine to have in your operations. The robot depending on its year of manufacture it can run on the Fanuc R30iA or R30iB Controller. If going into battle you want this robot in your corner. The Fanuc M-900iA/400L is a long reach, floor mounted industrial robot that is ideal for heavy material handling applications. The M-900iA/400L can handle up to 400kg! Its IP67 rated wrist is designed to perform in even the dirtiest environments. It has very reliable servo drives that help to provide any production line with the very most uptime and productivity. The robust design of the FANUc M900iA/400L helps to decrease down time and improve the mean time between failure.

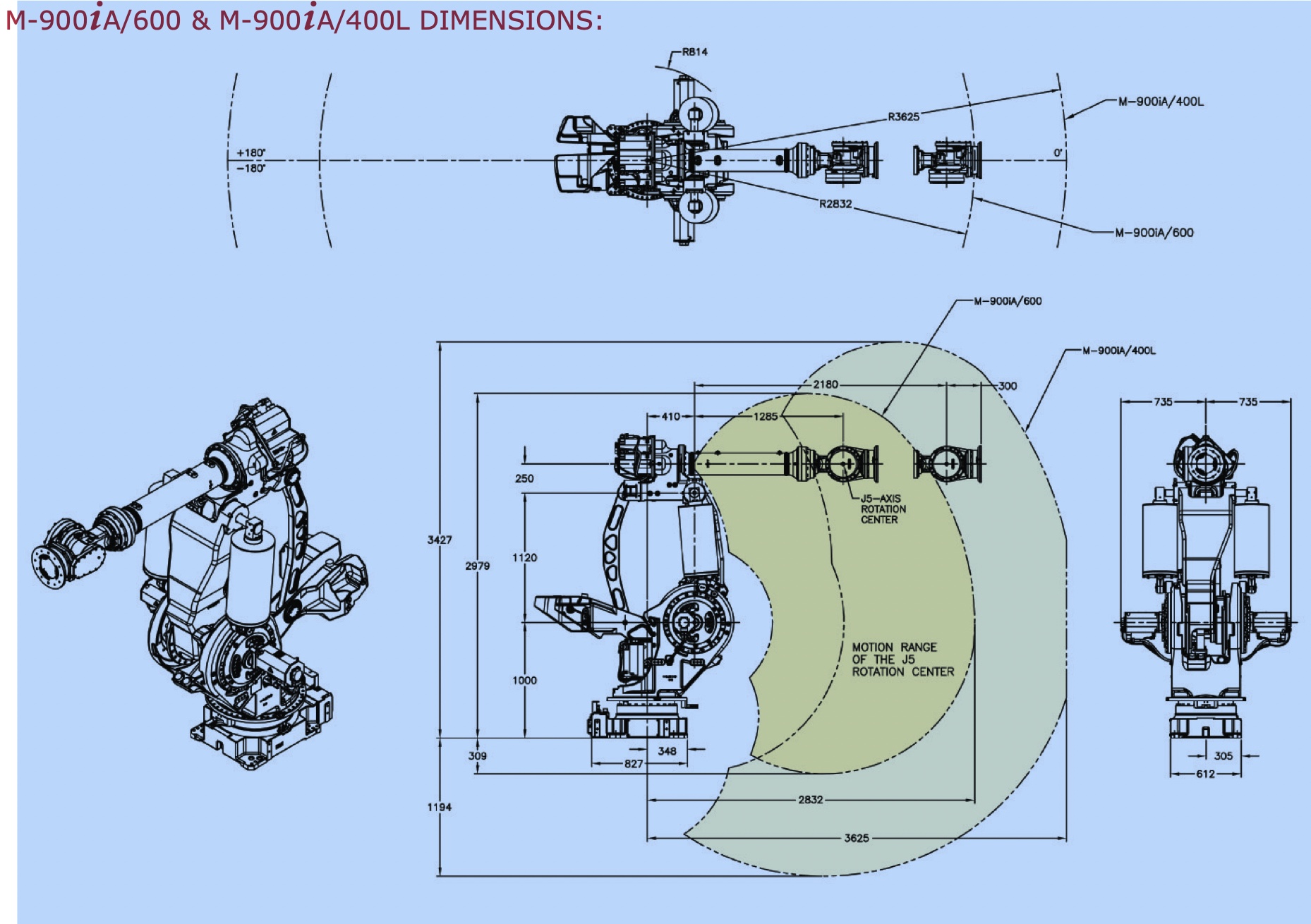

Robot Specifications:

Axes: 6

Payload: 400kg

H-Reach: 3625mm

Repeatability: ±0.5mm

Robot Mass: 3150kg

Structure: Articulated

Mounting: Floor

Robot Motion Speed:

J1 80 °/s (1.4 rad/s)

J2 80 °/s (1.4 rad/s)

J3 80 °/s (1.4 rad/s)

J4 100 °/s (1.75 rad/s)

J5 100 °/s (1.75 rad/s)

J6 160 °/s (2.79 rad/s)

Robot Motion Range:

J1 ±360°

J2 ±154°

J3 ±160°

J4 ±720°

J5 ±244°

J6 ±720°

Applications:

Material Handling Robots

Part Transfer Robots

Pick and Place Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
