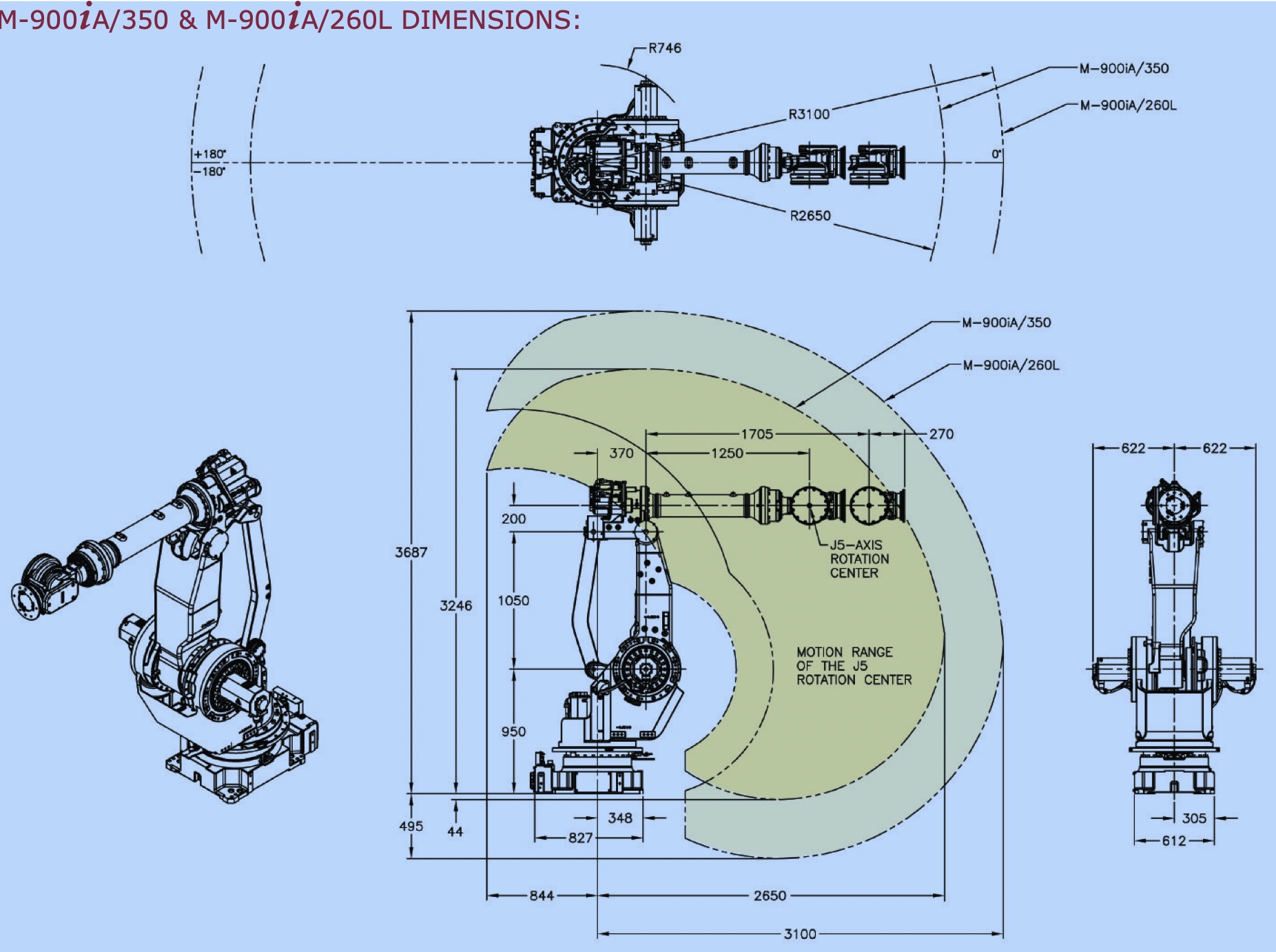

The Fanuc M-900iA/260L robot is part of the Fanuc M-Series of Robots, it is a long reach heavier payload of 260kg depending on the date of manufacture this robot will run on the Fanuc R30iA or Fanuc R30iB controller.
Robot Specifications:
Axes: 6
Payload: 260kg
H-Reach: 3100mm
Repeatability: ±0.3mm
Robot Mass: 1800kg
Structure: Articulated
Mounting: Floor, Inverted, Angle
Robot Motion Speed:
J1 100 °/s (1.75 rad/s)
J2 105 °/s (1.83 rad/s)
J3 95 °/s (1.66 rad/s)
J4 120 °/s (2.09 rad/s)
J5 120 °/s (2.09 rad/s)
J6 200 °/s (3.49 rad/s)
Robot Motion Range:
J1 ±180°
J2 ±75°
J3 +90° - 121°
J4 ±360°
J5 ±125°
J6 ±360°
Applications:
Waterjet Robots
Material Handling Robots
Fiberglass Cutting Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
