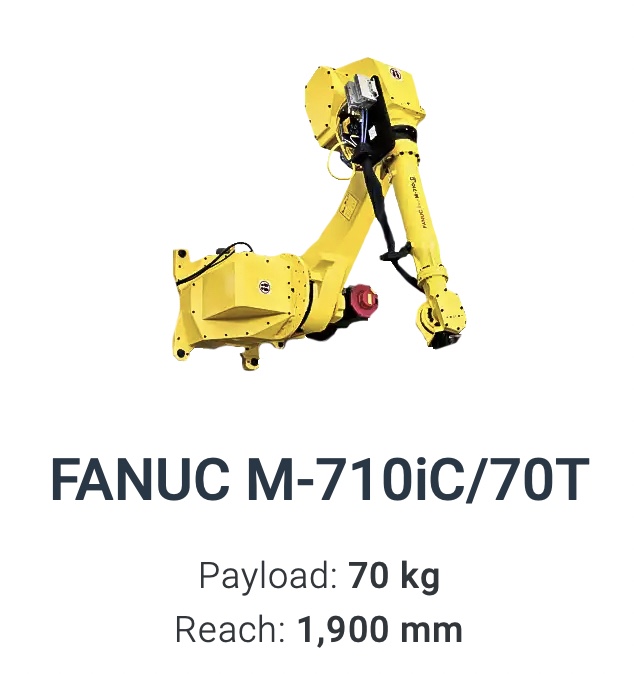

The Fanuc M-710iC/70T robot is part of Fanucs Top Loader Series of robots or gantry robot it runs on the Fanuc R30iA or R30iB Controller depending on date of manufacture. A fantastic robot in our experience with a multitude of applications often seen in plants machine tending or material handling.
Robot Specifications:
Axes: 6
Payload: 70kg
H-Reach: 1900mm
Repeatability: ±0.07mm
Robot Mass: 410kg
Structure: Articulated
Mounting: Inverted
Robot Motion Speed:
J1 3 m/s
J2 120 °/s (2.09 rad/s)
J3 120 °/s (2.09 rad/s)
J4 225 °/s (3.93 rad/s)
J5 225 °/s (3.93 rad/s)
J6 225 °/s (3.93 rad/s)

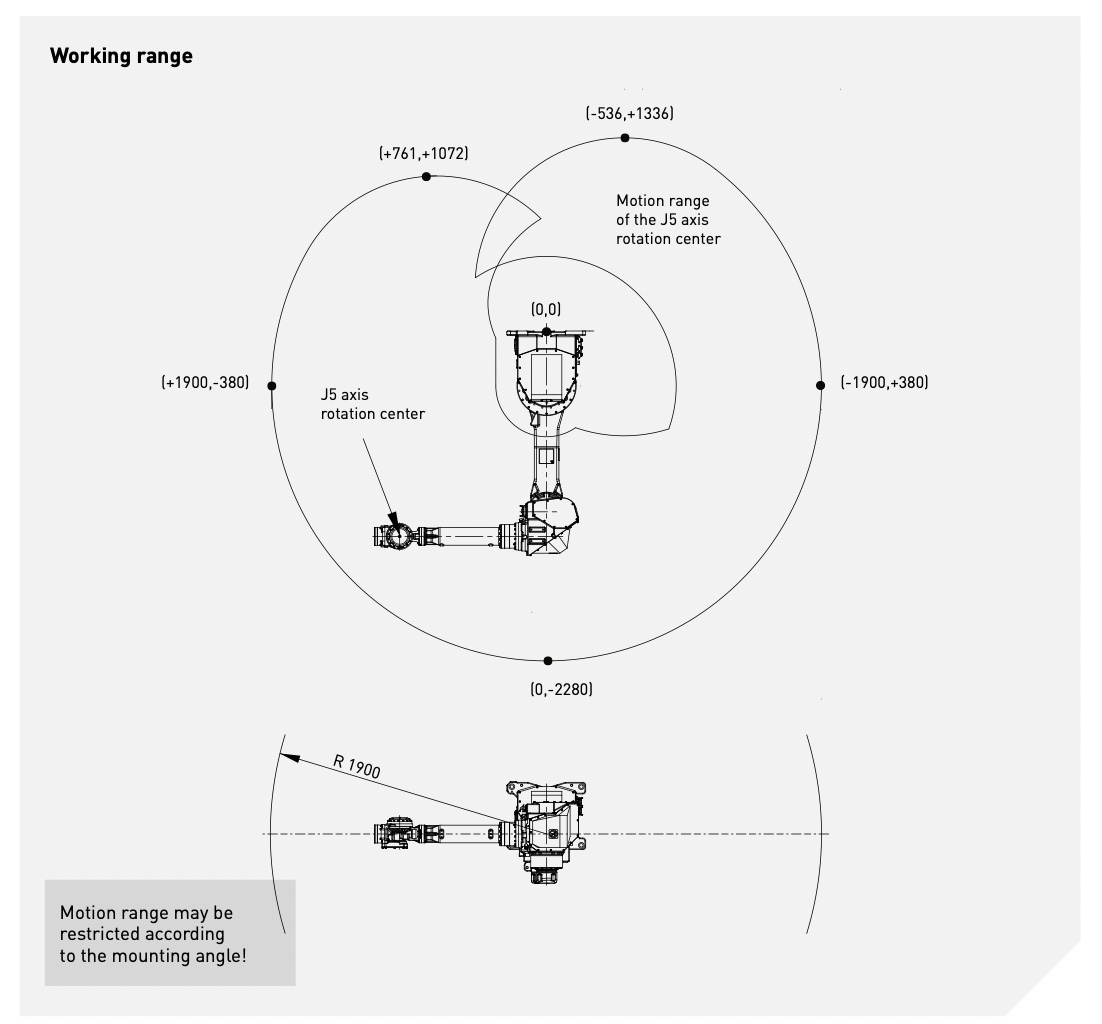

Robot Motion Range:
J1 +7.2mm° - 46.2mm°
J2 ±261°
J3 ±491°
J4 ±720°
J5 ±250°
J6 ±720°
Applications:
Thermal Spray Robots
Dispensing Robots
Injection Molding Robots
Machine Loading Robots
Machine Tending Robots
Material Handling Robots
Palletizing Robots
Fiberglass Cutting Robots
Arc Welding Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.
