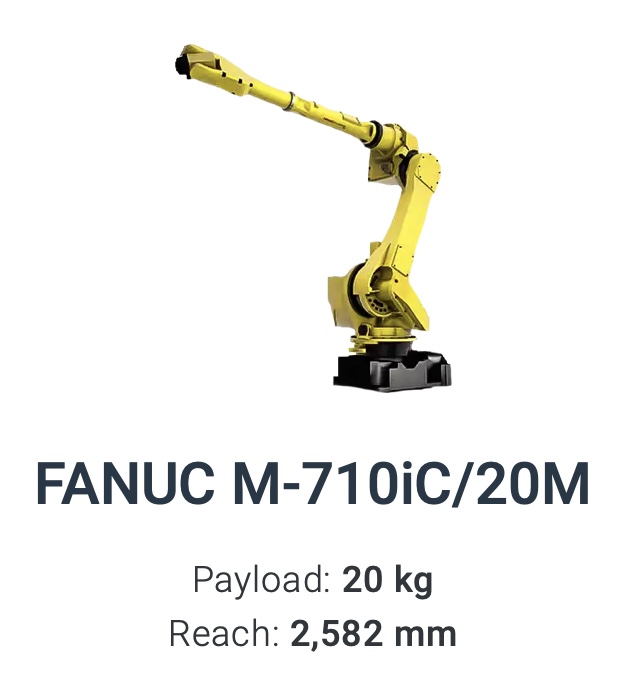

The Fanuc M-7i0iC/20M is designed for applications such as Material Handling and Arc Welding, its relatively compact, high speed and runs on the Fanuc R30iB controller. Its a full 6 axis high inertia robot.

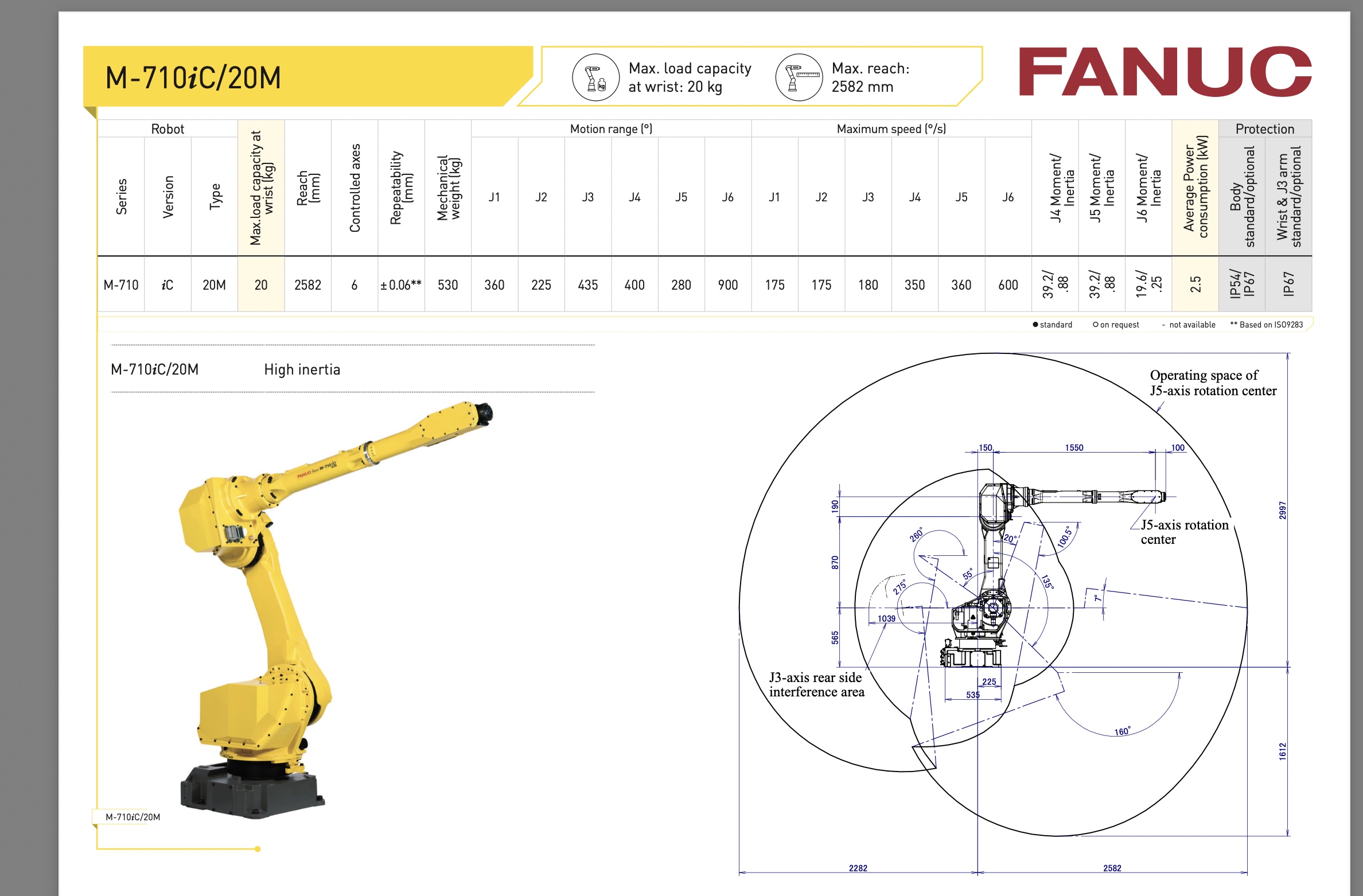

Robot Specifications:
Axes: 6
Payload: 20kg
H-Reach: 2582mm
Repeatability: ±0.15mm
Robot Mass: 530kg
Structure: Articulated
Mounting: Floor, Inverted, Angle
Robot Motion Speed:
J1 175 °/s (3.05 rad/s)
J2 175 °/s (3.05 rad/s)
J3 180 °/s (3.14 rad/s)
J4 350 °/s (6.11 rad/s)
J5 360 °/s (6.28 rad/s)
J6 600 °/s (10.47 rad/s)
Robot Motion Range:
J1 ±360°
J2 ±225°
J3 ±435°
J4 ±400°
J5 ±280°
J6 ±900°
Applications:
Arc Welding Robots
Material Handling Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
